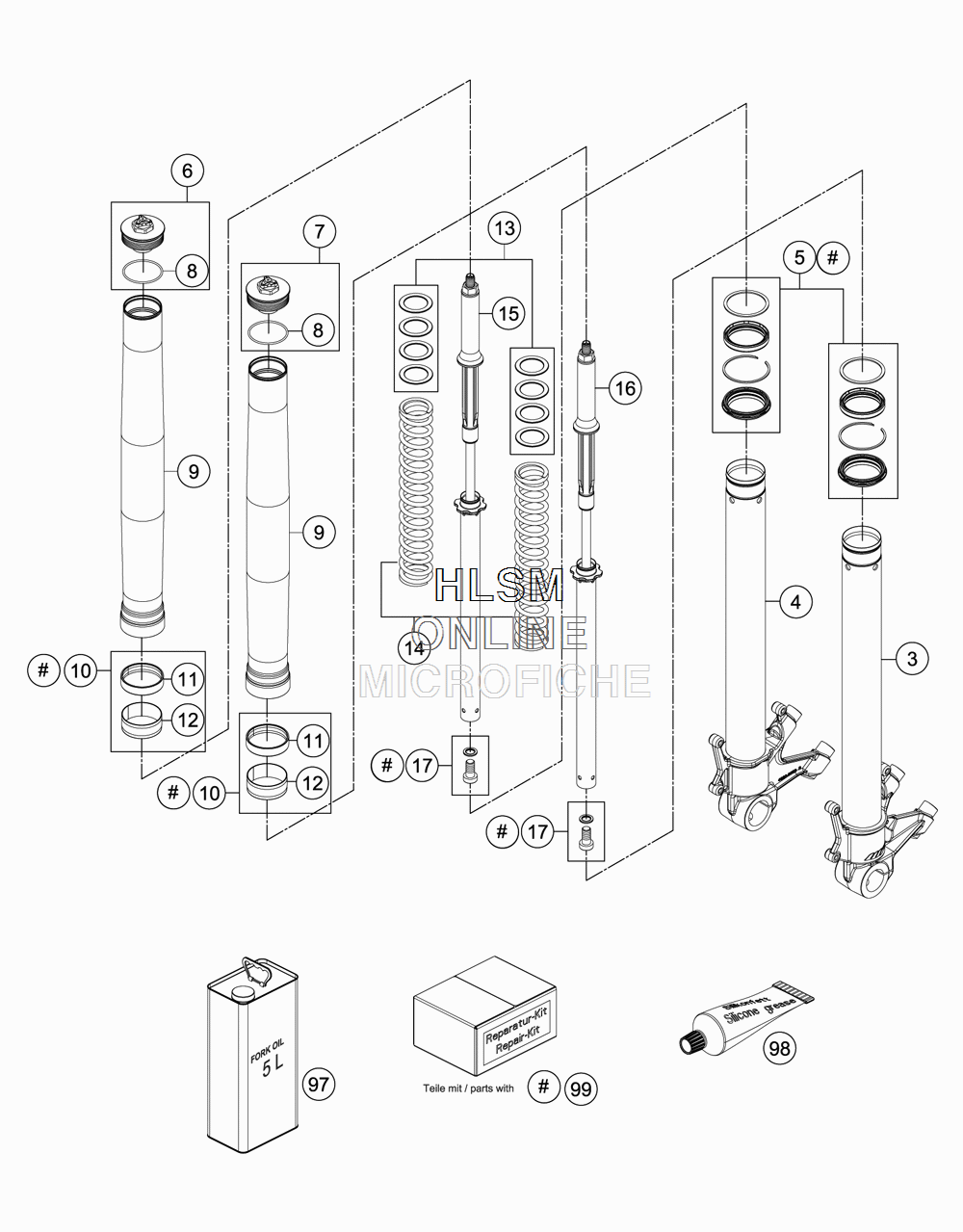

FRONT FORK DISASSEMBLED для Ktm 1290 SUPER DUKE R ABS BLACK - 2015 года выпуска
-
№АртикулНазвание
-
348601081S2 AXLE CLAMP W . INNER TUBE L/SAXLE CLAMP W . INNER TUBE L/S
-
448601082S2 AXLE CLAMP W . INNER TUBE R/SAXLE CLAMP W . INNER TUBE R/S
-
5R14040 GASKET KIT CPL.GASKET KIT CPL.
-
648601062S2 SCREW CAP M51X1.5 REBSCREW CAP M51X1.5 REB
-
748601062S3 SCREW CAP M51X1.5 COMSCREW CAP M51X1.5 COM
-
846810340 O-RING NBR 45X2O-RING NBR 45X2
-
948600484 OUTER TUBE L=500MM D=54/60OUTER TUBE L=500MM D=54/60
-
10R14028 GUIDING BUSH SETGUIDING BUSH SET
-
1148601009 GUIDING BUSH 48X52X12 R11GUIDING BUSH 48X52X12 R11
-
1248601008 GUIDING BUSH 47X49X20 R11GUIDING BUSH 47X49X20 R11
-
13R514 SPRING SPACER KITSPRING SPACER KIT
-
1495010034S SPRING LINEAR SET D=4,9SPRING LINEAR SET D=4,9
-
1557430049S CARDRIDGE CPL. R/SCARDRIDGE CPL. R/S
-
1657430048S CARDRIDGE CPL. L/SCARDRIDGE CPL. L/S
-
1700501020S1 AH SCREW M10X20 SETAH SCREW M10X20 SET
-
9748601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
98T511 SILICONE GREASE F . DUST STRIPESILICONE GREASE F . DUST STRIPE
-
99R14041 REP . KITREP . KIT
