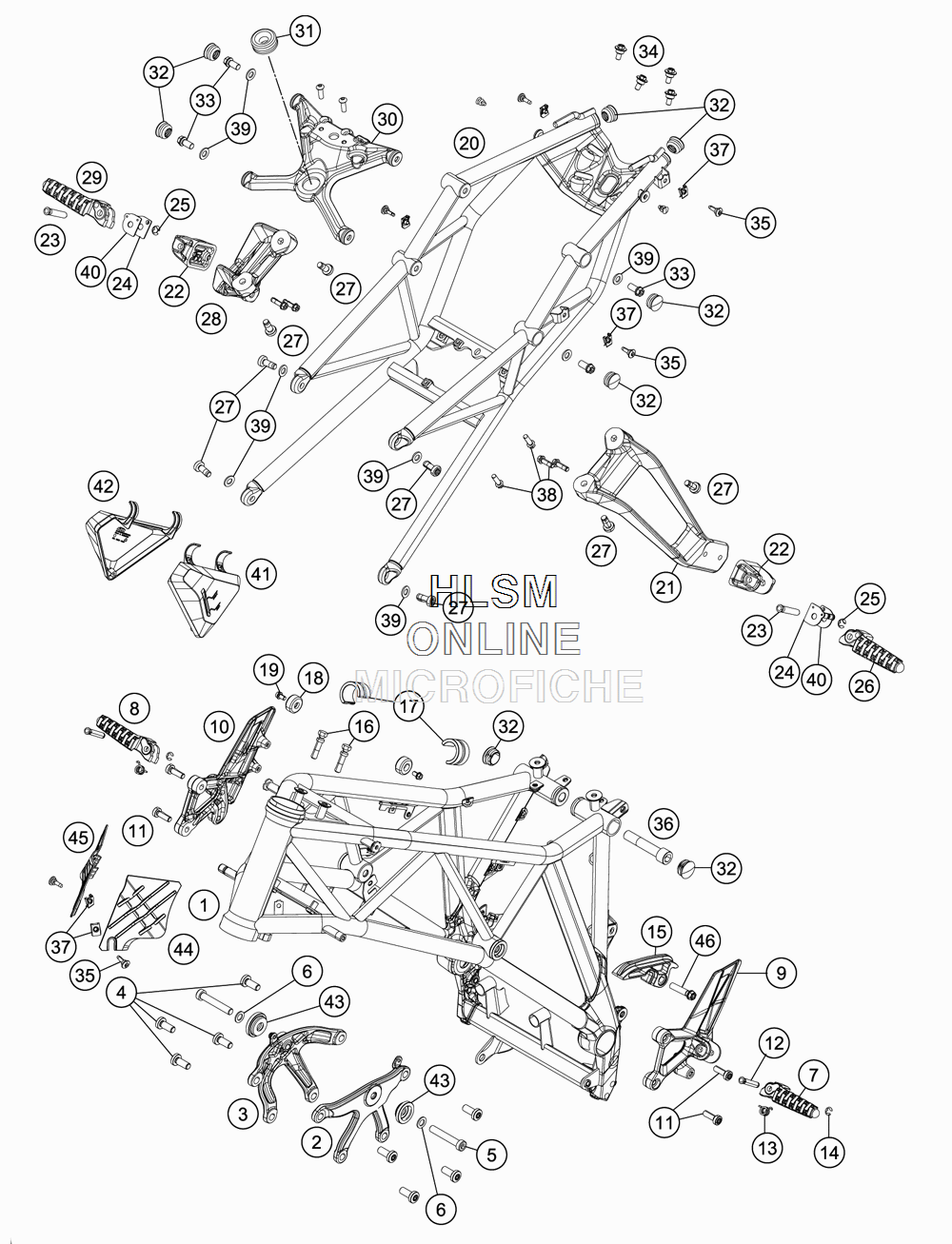

FRAME для Ktm 1290 SUPER DUKE R ABS BLACK - 2015 года выпуска
-
№АртикулНазвание
-
161303001000EB FRAME "613NA" ELECTR.-(ORANGE)FRAME "613NA" ELECTR.-(ORANGE)
-
26030300500033S ENGINE SUPPORTL/S (BLACK)ENGINE SUPPORTL/S (BLACK)
-
36030300600033S ENGINE SUPPORT R/S (BLACK)ENGINE SUPPORT R/S (BLACK)
-
40035100249 AH-COLLAR SCREW M10X24 ISA45AH-COLLAR SCREW M10X24 ISA45
-
50035100609S AH-COLLAR SCREW M10X60 ISA45AH-COLLAR SCREW M10X60 ISA45
-
60433100003 WASHER 18X10,5X1,6WASHER 18X10,5X1,6
-
76900314000033S FOOTREST FRONT L/SFOOTREST FRONT L/S
-
86900314100033S FOOTREST FRONT R/SFOOTREST FRONT R/S
-
96130303800033S FOOTREST SUPPORT FRONT L/S BL.FOOTREST SUPPORT FRONT L/S BL.
-
106130303900033S FOOTREST SUPPORT FRONT R/S BL.FOOTREST SUPPORT FRONT R/S BL.
-
110035080256 AH-COLLAR SCREW M8X25 ISA45AH-COLLAR SCREW M8X25 ISA45
-
1260003044100 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
1361003042000 SPRING FOOTREST FRONTSPRING FOOTREST FRONT
-
140799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
1561304076000 CHAIN SLIDING BLOCK-FRAMECHAIN SLIDING BLOCK-FRAME
-
1661111064000 TAMPER-PROOF SCREWTAMPER-PROOF SCREW
-
1761007014000 SPACER FUEL TANKSPACER FUEL TANK
-
1850307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
190025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
206130300210033 SUB FRAME (BLACK)SUB FRAME (BLACK)
-
216130304800033S FOOTREST SUPPORT REAR L/S BL.FOOTREST SUPPORT REAR L/S BL.
-
226130304905033S FOOTREST MOUNTING REAR (BLACK)FOOTREST MOUNTING REAR (BLACK)
-
2360003044100 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
2460003052000 ENGAGE PANEL FOOTREST R/SENGAGE PANEL FOOTREST R/S
-
250799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
266900305003333S FOOTREST REAR L/S CPL.FOOTREST REAR L/S CPL.
-
270035080206S AH-COLLAR SCREW M8X20 ISA45AH-COLLAR SCREW M8X20 ISA45
-
286130304900033S FOOTREST SUPPORT REAR R/S BL.FOOTREST SUPPORT REAR R/S BL.
-
296900305103333S FOOTREST REAR R/S CPL.FOOTREST REAR R/S CPL.
-
306130300203033S CROSS BRACE REAR (BLACK)CROSS BRACE REAR (BLACK)
-
3161303002040 RUBBER GROMMETRUBBER GROMMET
-
3261303088000 PLUG SFL 22X0,8-3,0PLUG SFL 22X0,8-3,0
-
330025080166 HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
3483008100015 SPECIAL SCREW M6X15X5,5SPECIAL SCREW M6X15X5,5
-
3569008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
3660004017000 SCREW M14X1,5 L=73MM 03SCREW M14X1,5 L=73MM 03
-
3769008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
380025080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
390125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
4060003152000 ENGAGE P ANEL FOOTREST L/S 03ENGAGE P ANEL FOOTREST L/S 03
-
4161303091000 KNEE P AD L/SKNEE P AD L/S
-
4261303092000 KNEE P AD R/SKNEE P AD R/S
-
4360303010000 BUSHING MOTOR MOUNTINGBUSHING MOTOR MOUNTING
-
4461303085000 FRAME COVER L/SFRAME COVER L/S
-
4561303086000 FRAME COVER R/SFRAME COVER R/S
-
460025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
4744011076200 CABLE TIE 200/3,6MM (BLACK)CABLE TIE 200/3,6MM (BLACK)
-
47U6951130 8" (ORANGE) CABLE TIES8" (ORANGE) CABLE TIES
