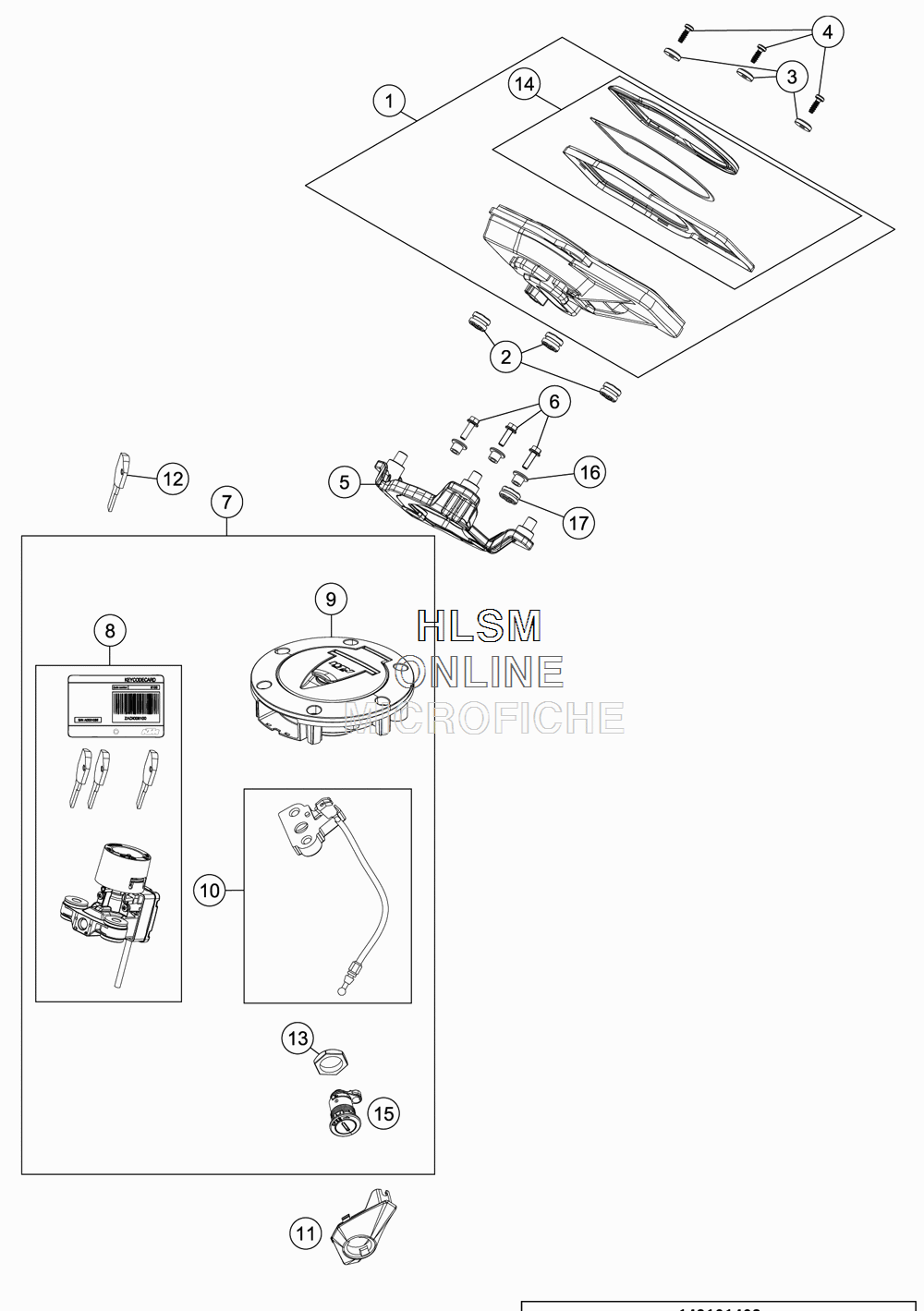

INSTRUMENTS; LOCKING SYSTEM для Ktm 1290 SUPER DUKE R ABS BLACK - 2015 года выпуска
-
№АртикулНазвание
-
160414069000 SPEEDOMETERSPEEDOMETER
-
261314069051 DAMP . COMPONENT SPEEDOMETERDAMP . COMPONENT SPEEDOMETER
-
360308045000 SPECIAL WASHER 4.5X16SPECIAL WASHER 4.5X16
-
40081250141 SCREW FOR PLASTIC PT K50X14T25SCREW FOR PLASTIC PT K50X14T25
-
561314062100 INSTRUMENTS BRACKETINSTRUMENTS BRACKET
-
60025050206 HH COLLAR SCREW M5X20 TX30HH COLLAR SCREW M5X20 TX30
-
761311066144 LOCK KITLOCK KIT
-
861311066100 IGNITION LOCKIGNITION LOCK
-
961307008100 TANK CAP CPL.TANK CAP CPL.
-
1061307050000 SEAT LOCK MECHANISM CPL.SEAT LOCK MECHANISM CPL.
-
1161307055000 SUPPORT SEAT LOCKSUPPORT SEAT LOCK
-
1269011067000 KEY WITH TRANSPONDERKEY WITH TRANSPONDER
-
1369007050050 NUT SEAT LOCK M22X1,5NUT SEAT LOCK M22X1,5
-
1460314069050 SPEEDOMETER FRAME CPL.SPEEDOMETER FRAME CPL.
-
1561307050020 LOCK CYLINDER SEAT LOCKLOCK CYLINDER SEAT LOCK
-
1661314062050 BUSHING 5.5X9X15X9.5BUSHING 5.5X9X15X9.5
-
1762142041100 DUMPER 40 SHOREDUMPER 40 SHORE
