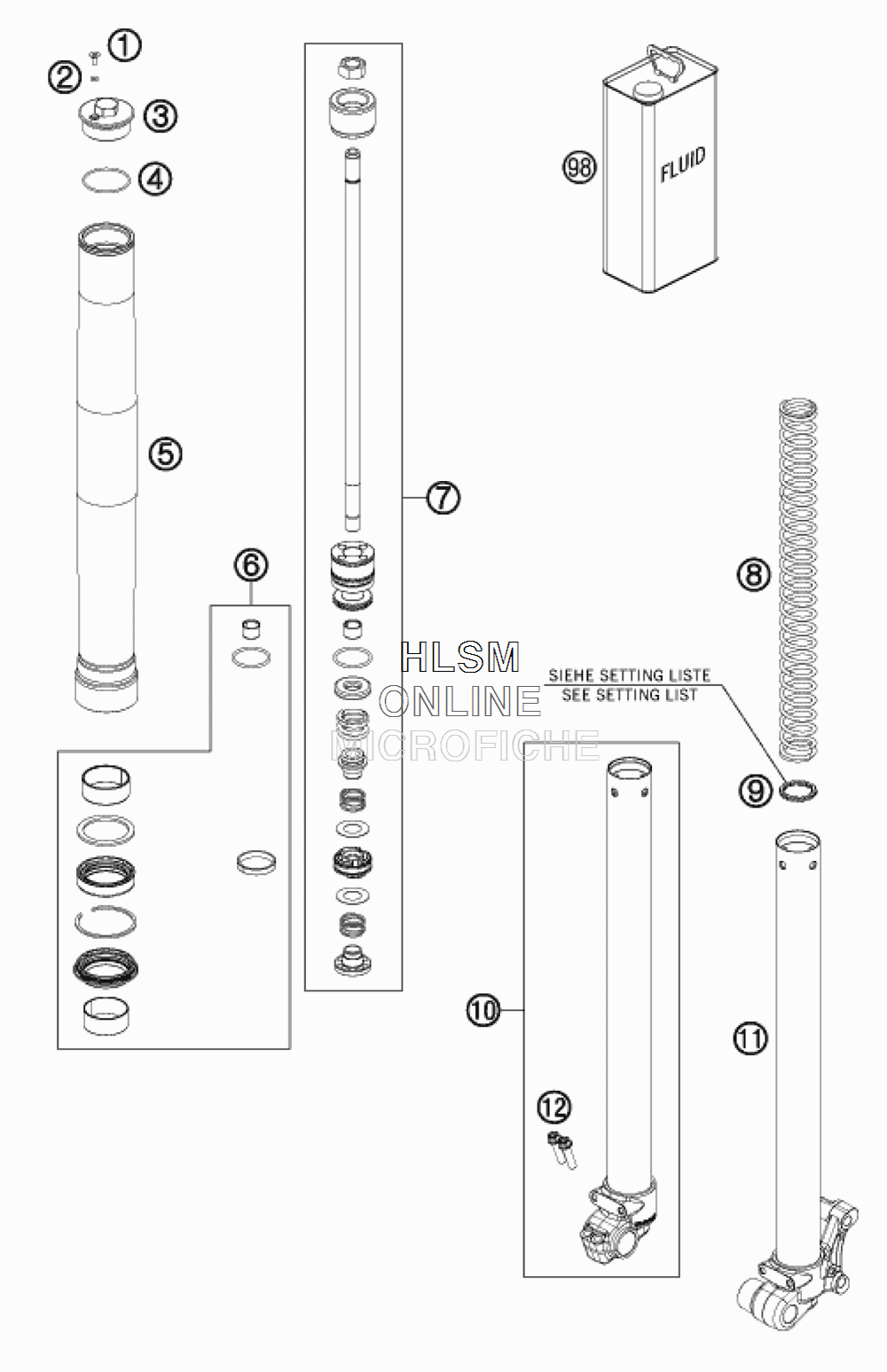

FRONT FORK DISASSEMBLED для Ktm 50 SXS - 2015 года выпуска
-
№АртикулНазвание
-
148600481 VENT SCREW M4X8VENT SCREW M4X8
-
248600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
335480459 SCREW CAP M38X1.5SCREW CAP M38X1.5
-
446180581 O-RING 35X1.5 NBR70O-RING 35X1.5 NBR70
-
535480453 OUTER TUBE L=425OUTER TUBE L=425
-
6R703 REP AIR KIT 50SX 2012REP AIR KIT 50SX 2012
-
735480462S1 PISTON ROD 50SX CPL.PISTON ROD 50SX CPL.
-
895010055S SPRING 1,8 N/MM SETSPRING 1,8 N/MM SET
-
895010051S SPRING 2.0N/MM SET D=3.1MMSPRING 2.0N/MM SET D=3.1MM
-
895010052S SPRING 2,2 N/MM SETSPRING 2,2 N/MM SET
-
935480497 WASHER 22X30X2.5WASHER 22X30X2.5
-
1035480455S1 AXLE CLAMP R/S CPL. W . TUBEAXLE CLAMP R/S CPL. W . TUBE
-
1135480456S1 AXLE CLAMP L/S CPL. W . TUBEAXLE CLAMP L/S CPL. W . TUBE
-
120025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
9848600765 FORK OIL SAE5FORK OIL SAE5
