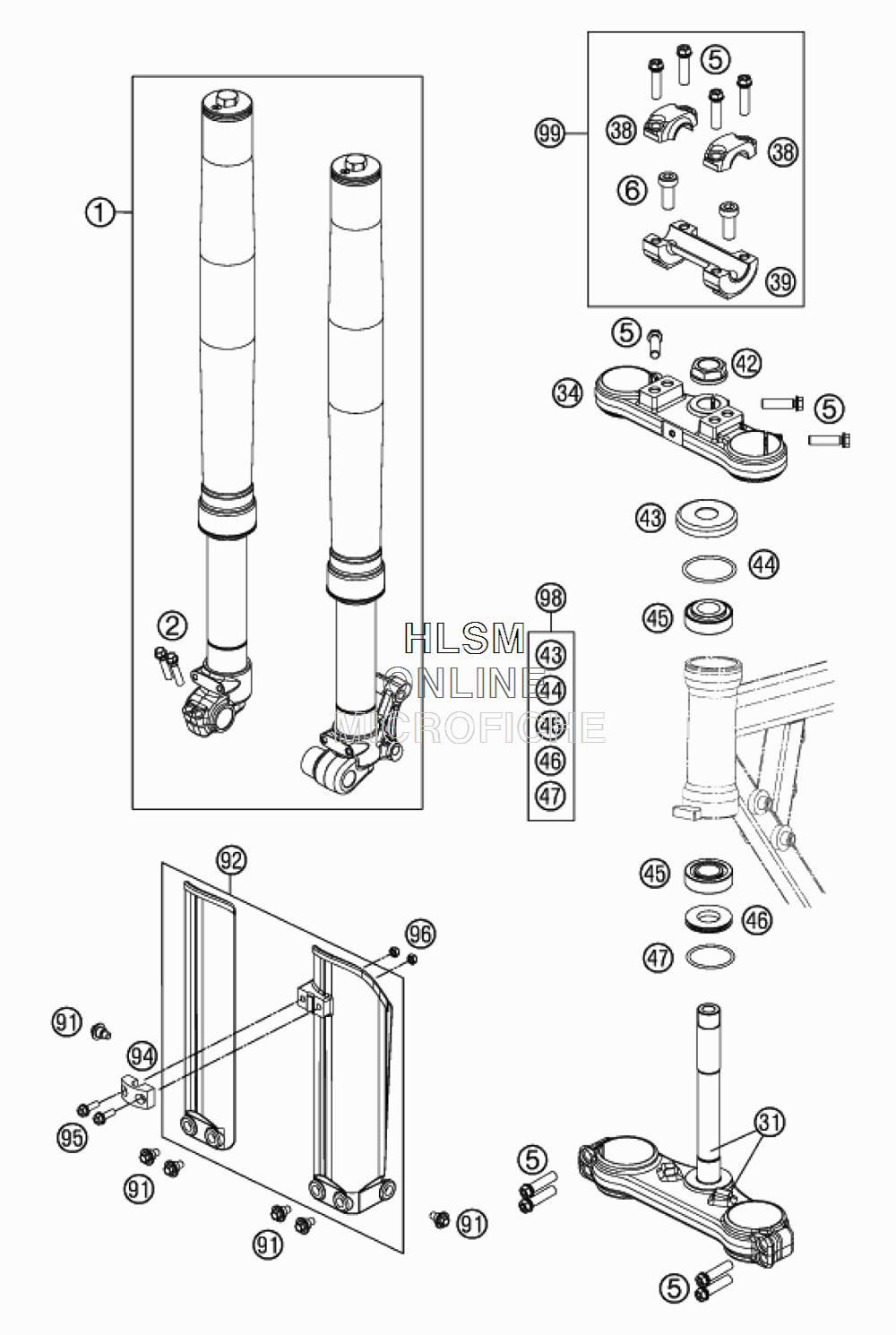

FRONT FORK TRIPLE CLAMP для Ktm 50 SXS - 2015 года выпуска
-
№АртикулНазвание
-
107181L0301 FORK USDFORK USD
-
20025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
50025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
60032100256S AH-COLLAR SCREW M10X25 ISA45AH-COLLAR SCREW M10X25 ISA45
-
3145201032022 BOT . TRIPLE CLAMP CPL.BOT . TRIPLE CLAMP CPL.
-
3445201034022 TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
3850301038000 HANDLEB AR CLAMP D=22MM 2001HANDLEB AR CLAMP D=22MM 2001
-
3945201039000 HANDLEB AR SUPPOR T 50SX D=22MMHANDLEB AR SUPPOR T 50SX D=22MM
-
4259030029000 HH NUT M20X1,5 WS=27 RIGHTHH NUT M20X1,5 WS=27 RIGHT
-
4349001086000 COVERING CAPCOVERING CAP
-
440770049025 O-RING 49,00X2,50 NBRO-RING 49,00X2,50 NBR
-
4549001081000 T APERED ROLLER BEARING 32004XT APERED ROLLER BEARING 32004X
-
4646001086000 PROTECTION RING 20,1X39X5PROTECTION RING 20,1X39X5
-
470770360030 O-RING 36,00X3,00 NBRO-RING 36,00X3,00 NBR
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
924610109400028 FORK PROTECTOR SET WHITEFORK PROTECTOR SET WHITE
-
945460108500028 BRAKE HOSE CLIPBRAKE HOSE CLIP
-
950025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
960985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
9800050000931 STEARING HEAD REP . KIT MINISTEARING HEAD REP . KIT MINI
-
9900050000925 HANDLEB AR SUPPORT KITHANDLEB AR SUPPORT KIT
