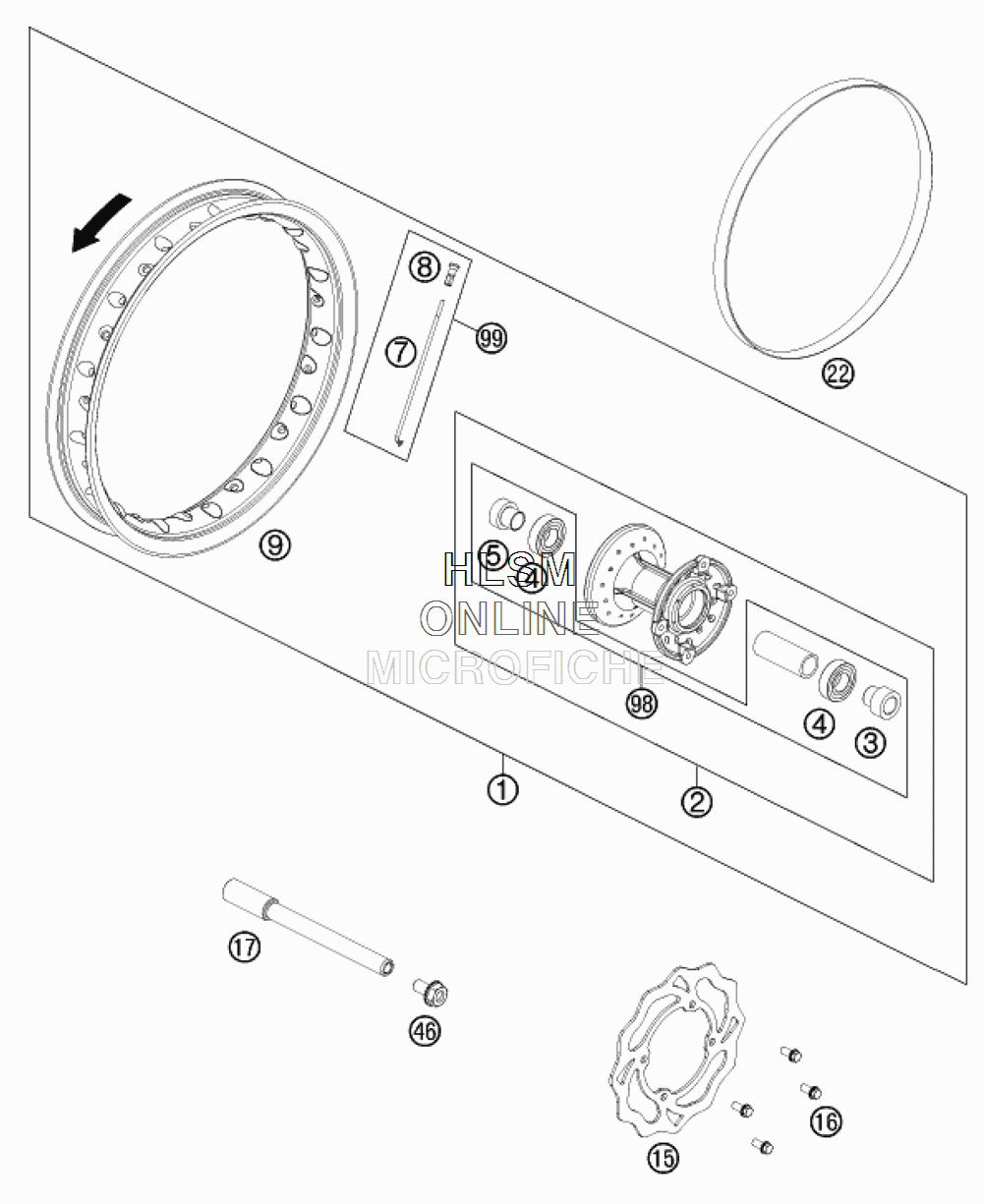

FRONT WHEEL для Ktm 50 SXS - 2015 года выпуска
-
№АртикулНазвание
-
145209001244 FRONT WHEELFRONT WHEEL
-
245209010044 FRONT WHEEL HUB CPL.FRONT WHEEL HUB CPL.
-
345209012000 SPACER BUSHING LEFTSPACER BUSHING LEFT
-
40625060037 GR.BALL BEAR. 6003-2RSH/C3H MTFGR.BALL BEAR. 6003-2RSH/C3H MTF
-
545209013000 SP ACER BUSHING RIGHTSP ACER BUSHING RIGHT
-
745209071126 SPOKE 3X126C.110°C.5 ZINCSPOKE 3X126C.110°C.5 ZINC
-
846210072000 SPOKE NIPPLE ALUSPOKE NIPPLE ALU
-
94520907020030 FRONT RIM 12"X1,5 SCHWFRONT RIM 12"X1,5 SCHW
-
1545209060000 BRAKE DISC FRONT JUN/SEN 09BRAKE DISC FRONT JUN/SEN 09
-
1659009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1745209081000 AXLE FRONTAXLE FRONT
-
2245109073100 RIM BAND 12"RIM BAND 12"
-
4649032011000 HH COLLAR SCREW M10X20 WS=17HH COLLAR SCREW M10X20 WS=17
-
9845209015000 FRONT WHEEL REP . KITFRONT WHEEL REP . KIT
-
9900050000964 SPOKE KIT FRONT 12"SPOKE KIT FRONT 12"
