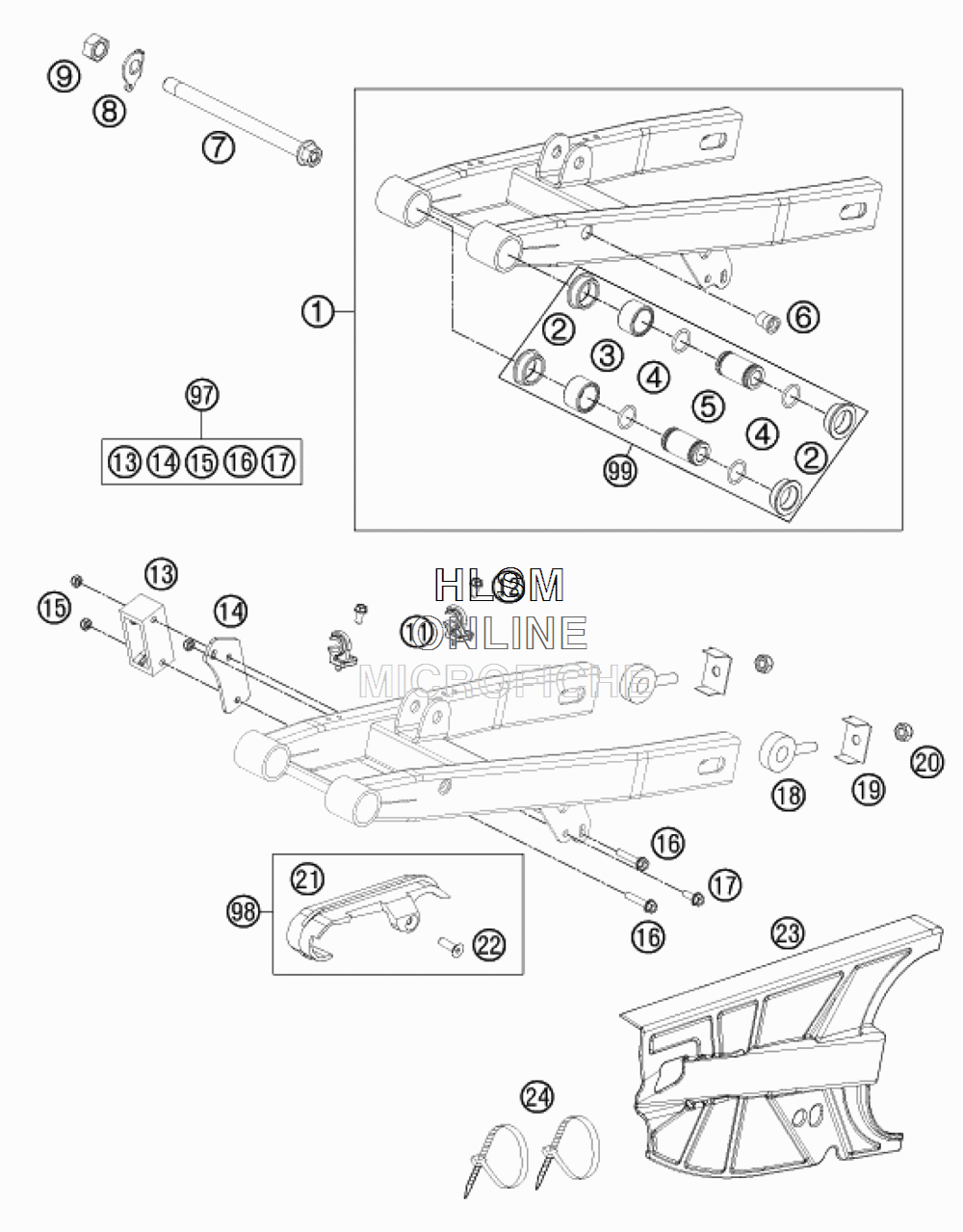

SWING ARM для Ktm 50 SXS - 2015 года выпуска
-
№АртикулНазвание
-
145204030033 SWING ARM CPL. (MB9S)SWING ARM CPL. (MB9S)
-
246004030070 SP ACER BUSHING 20X26X30X 9,7SP ACER BUSHING 20X26X30X 9,7
-
354603097000 NEEDLE BUSH HK 2016NEEDLE BUSH HK 2016
-
40770160021 O-RING 16,00X2,00 VITONO-RING 16,00X2,00 VITON
-
546004030071 BUSHING BOX 12X20X36,5BUSHING BOX 12X20X36,5
-
655003139900 BLIND RIVET THREAD M6 STE. 4MMBLIND RIVET THREAD M6 STE. 4MM
-
745103014144 SWING ARM BOLT CPL.SWING ARM BOLT CPL.
-
845213053000 LOCK WASHERLOCK WASHER
-
90934120103 HEXAGON NUT DIN0934-M12X1HEXAGON NUT DIN0934-M12X1
-
1154611076100 RET AIN.CLAMP FOR BRAKE HOSERET AIN.CLAMP FOR BRAKE HOSE
-
120009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
1345004070000 CHAIN GUIDE REARCHAIN GUIDE REAR
-
1445104170000 BRACKET FOR CHAIN GUARDBRACKET FOR CHAIN GUARD
-
150985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
160025050306 HH COLLAR SCREW M5X30 TX30HH COLLAR SCREW M5X30 TX30
-
170025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
1845010083000 CHAIN ADJUSTERCHAIN ADJUSTER
-
1945010083060 SUPPOR TING BRACKETSUPPOR TING BRACKET
-
200985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
2145204066000 CHAIN SLIDING GUARDCHAIN SLIDING GUARD
-
220991060202 FLA T HEAD DIN7991-M 6X20FLA T HEAD DIN7991-M 6X20
-
2345104061000 CHAINGUARD JUNOIRCHAINGUARD JUNOIR
-
2444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
9745104070044 CHAIN GUIDE KIT MINI 04-11CHAIN GUIDE KIT MINI 04-11
-
9845204066010 CHAIN GUARD KITCHAIN GUARD KIT
-
9945204230010 SWINGARM REP . KITSWINGARM REP . KIT
