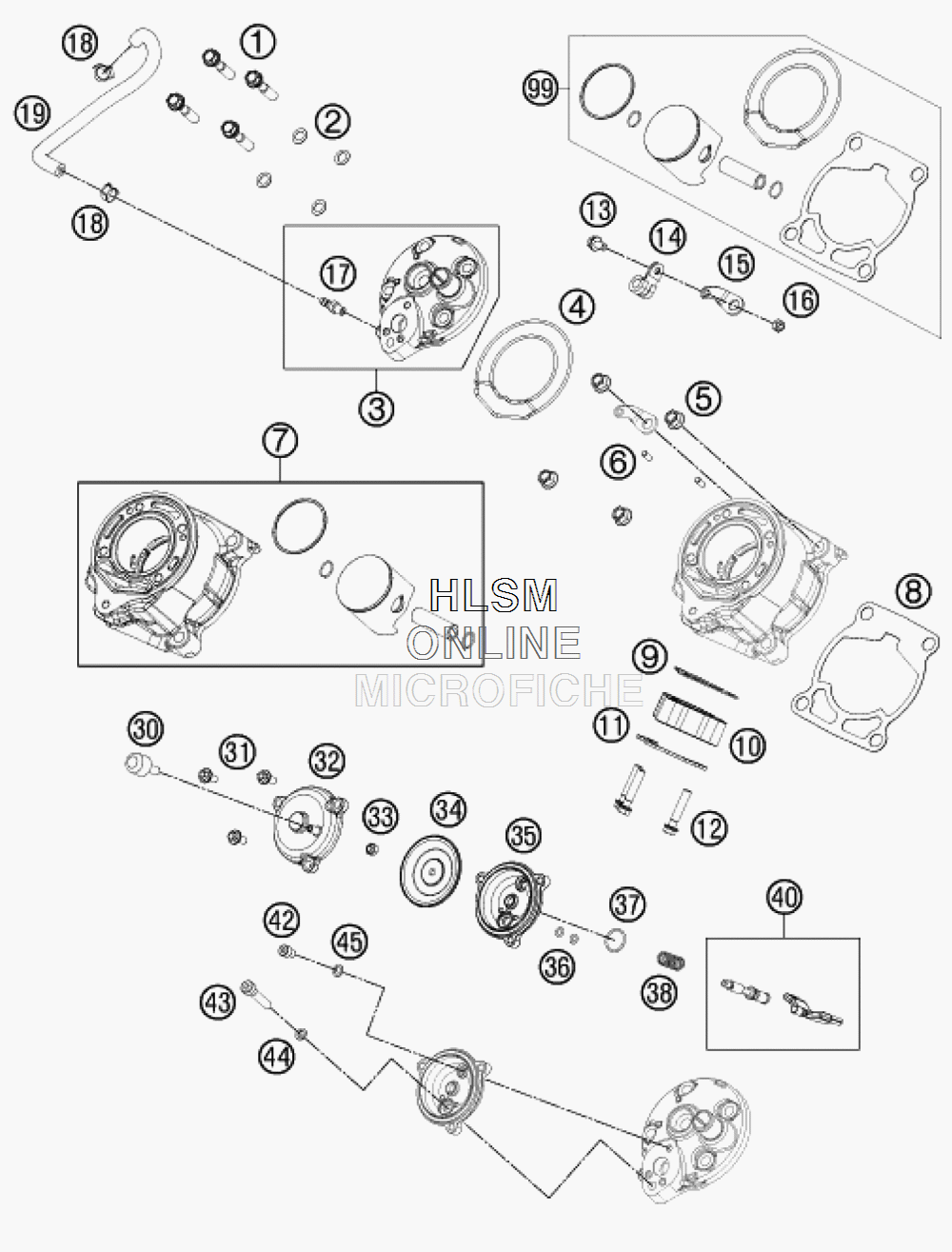

CYLINDER CYLINDER HEAD для Ktm 65 SX - 2015 года выпуска
-
№АртикулНазвание
-
150330079000 CYL. HEAD BOLT M 7X30 WS=10CYL. HEAD BOLT M 7X30 WS=10
-
20603070121 CU-SEAL RING DIN7603- 7,3X12X1CU-SEAL RING DIN7603- 7,3X12X1
-
346230006000 CYLINDER HEADCYLINDER HEAD
-
445230036000 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
546030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
60402040980 NEEDLE ROL.DIN540 2 NRB 4X9,8NEEDLE ROL.DIN540 2 NRB 4X9,8
-
746230038000 CYLINDER W/ PISTONCYLINDER W/ PISTON
-
846230035020 CYLINDER BASE GASKET 0,2 MMCYLINDER BASE GASKET 0,2 MM
-
846230035040 CYLINDER BASE GASKET 0,4 MMCYLINDER BASE GASKET 0,4 MM
-
846230035050 CYLINDER BASE GASKET 0,5 MMCYLINDER BASE GASKET 0,5 MM
-
846230035060 CYLINDER BASE GASKET 0,6MMCYLINDER BASE GASKET 0,6MM
-
946205004000 EXHAUST PIPE FLANGE GASKETEXHAUST PIPE FLANGE GASKET
-
1046205003000 EXHAUST FLANGEEXHAUST FLANGE
-
1146205003050 BRACKET FOR SPRING HOLDERBRACKET FOR SPRING HOLDER
-
120025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
130025050106 COLLAR SCREW M5X12 ISA30COLLAR SCREW M5X12 ISA30
-
1445001070000 BRAKE CABLE CLAMP RSGU 9/12BRAKE CABLE CLAMP RSGU 9/12
-
1546232060050 RETAINING PLATE CLUTCH HOSERETAINING PLATE CLUTCH HOSE
-
160985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
1758336020190 VACUUM CONNECTION M6/3MMVACUUM CONNECTION M6/3MM
-
1859007017000 CLAMP YDNAC 10096F (9,6MM)CLAMP YDNAC 10096F (9,6MM)
-
1945237014100 HOSE EXHAUST CONTROLHOSE EXHAUST CONTROL
-
3046237036044 VENTILA TION CPL.VENTILA TION CPL.
-
310014050163 HH COLLAR SCREW M 5X16 WS=6HH COLLAR SCREW M 5X16 WS=6
-
3246237035000 CLOSING COVERCLOSING COVER
-
330985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
3446237013000 MEMBRANEMEMBRANE
-
3546237011000 FLANGE EXHAUST CONTROLFLANGE EXHAUST CONTROL
-
360770030015 O-RING 31X1,5 NBR 70O-RING 31X1,5 NBR 70
-
370770150151 O-RING 15,00X1,50 VITONO-RING 15,00X1,50 VITON
-
3846237074100 ADJ. SPRING - EXHAUST CONTROLADJ. SPRING - EXHAUST CONTROL
-
4046237020144 CONTROL SLIDE CPL.CONTROL SLIDE CPL.
-
420912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
430012060303 AH SCREW DIN6912 M6X30 8.8AH SCREW DIN6912 M6X30 8.8
-
440603061001 CU-SEAL RING DIN7603-6X10X 1CU-SEAL RING DIN7603-6X10X 1
-
450603050901 COPPER T GASKET 5X9X1COPPER T GASKET 5X9X1
-
9900050000202 PISTON KIT GR.IPISTON KIT GR.I
-
9900050000203 PISTON KIT GR.IIPISTON KIT GR.II
