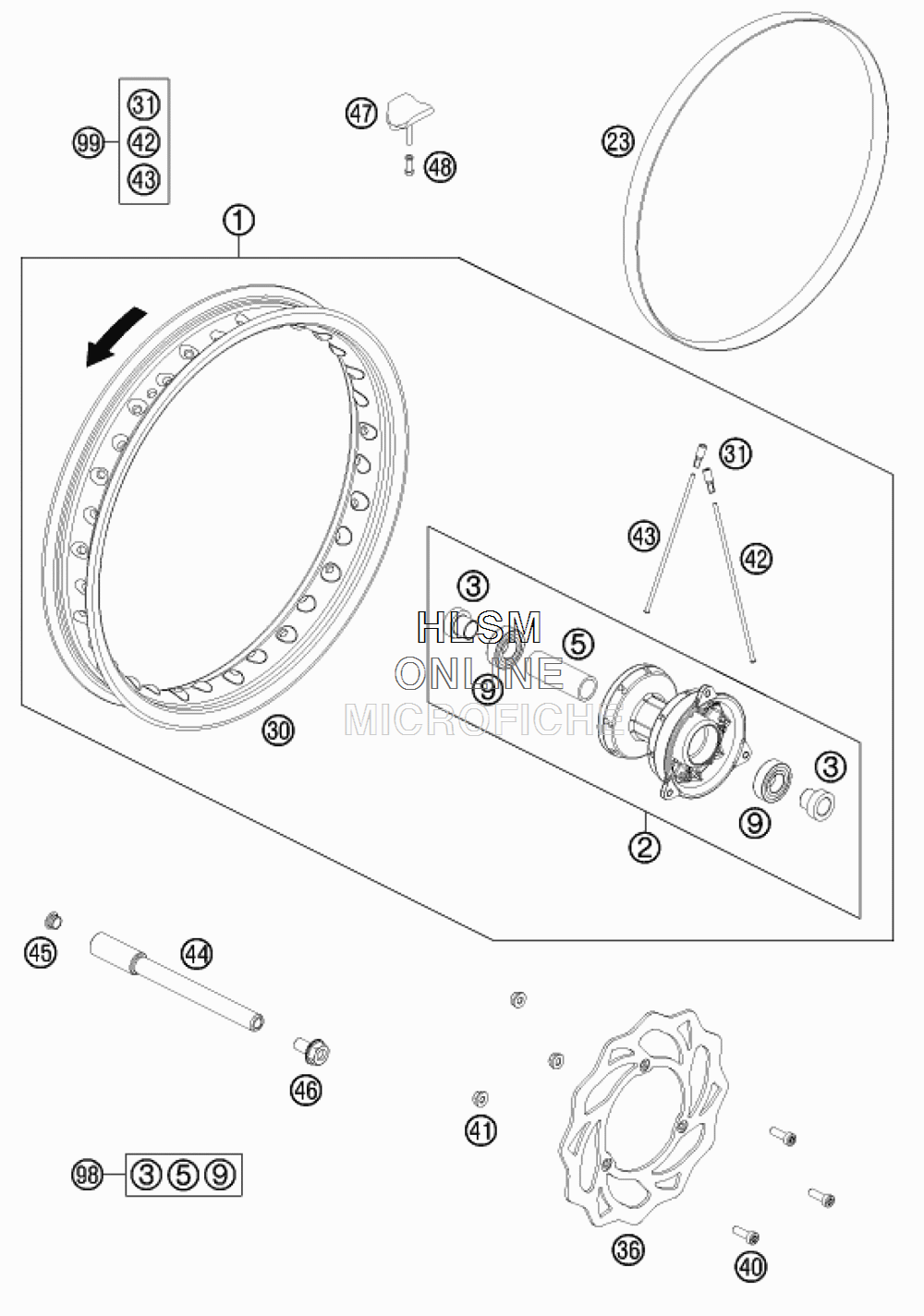

FRONT WHEEL для Ktm 65 SX - 2015 года выпуска
-
№АртикулНазвание
-
146209001144 FRONT WHEEL ETFRONT WHEEL ET
-
246209010044 FRONT WHEEL HUB CPL.FRONT WHEEL HUB CPL.
-
346209012000 DISTANCE BUSHING FRONTDISTANCE BUSHING FRONT
-
546009011100 BEARING SP ACER TUBEBEARING SP ACER TUBE
-
90625060037 GR.BALL BEAR. 6003-2RSH/C3H MTFGR.BALL BEAR. 6003-2RSH/C3H MTF
-
2347010073000 RIM BAND 85 SX 14"RIM BAND 85 SX 14"
-
304620907000030 RIM FRONT 14"X1,6 BLACKRIM FRONT 14"X1,6 BLACK
-
3146210072000 SPOKE NIPPLE ALUSPOKE NIPPLE ALU
-
3646209060100 BRAKE DISC FRONTBRAKE DISC FRONT
-
4059009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
4156509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
4246209071148 SPOKE 3X148 C.165° C.3,3SPOKE 3X148 C.165° C.3,3
-
4346209071150 SPOKE 3X150 C.166° C.2,6SPOKE 3X150 C.166° C.2,6
-
4445209081000 AXLE FRONTAXLE FRONT
-
4550210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4649032011000 HH COLLAR SCREW M10X20 WS=17HH COLLAR SCREW M10X20 WS=17
-
4745110090000 RIM LOCK CPL.RIM LOCK CPL.
-
4850310090050 % NUT FOR WHEEL HOLDER% NUT FOR WHEEL HOLDER
-
9846209015000 FRONT WHEEL REP . KITFRONT WHEEL REP . KIT
-
9900050000918 SPOKE KIT FRONT 14"SPOKE KIT FRONT 14"
