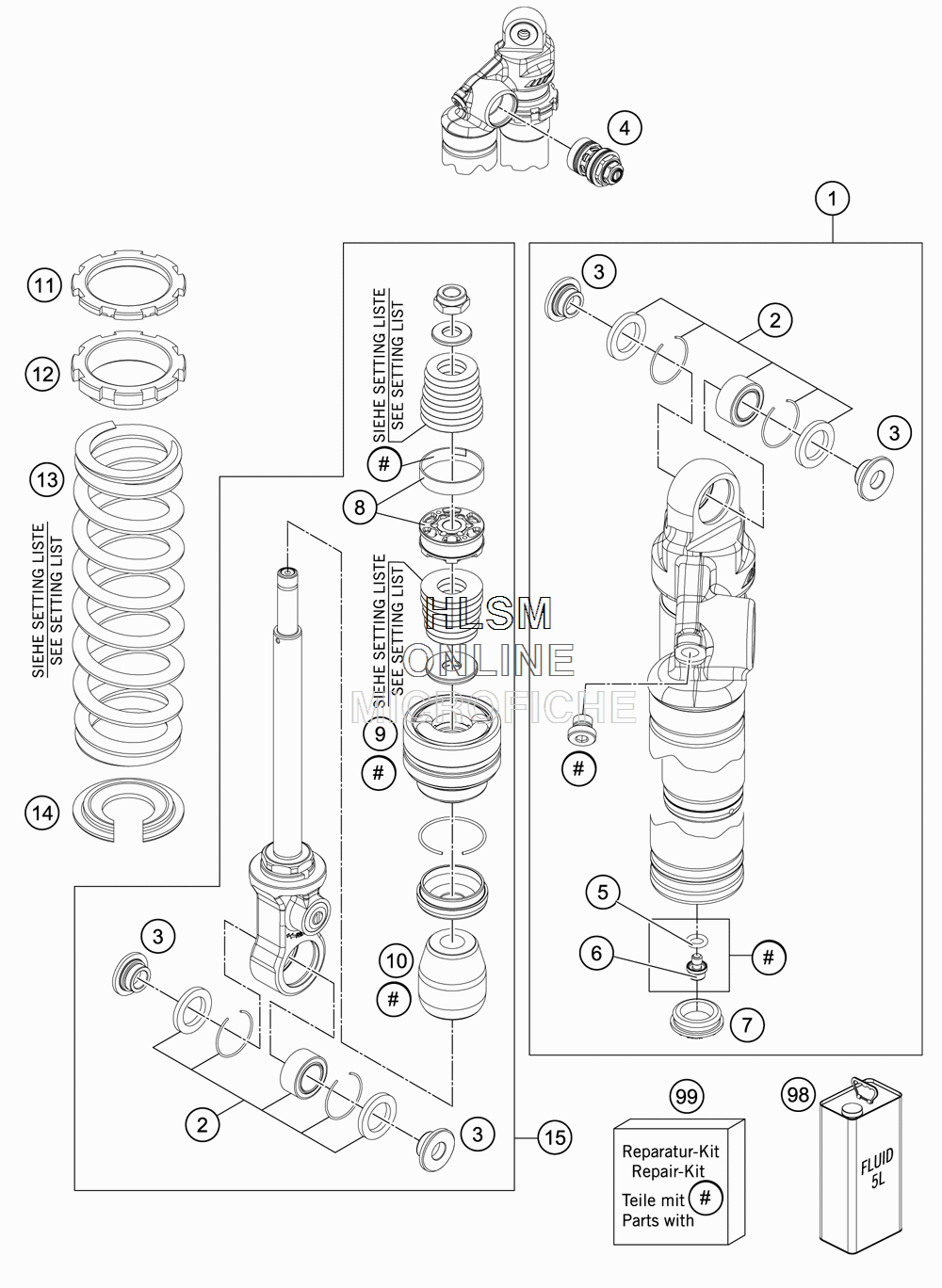

MONOSHOCK DISASSEMBLED для Ktm 65 SX - 2015 года выпуска
-
№АртикулНазвание
-
136120846S1 MONOSHOCK TOP PART CPL.MONOSHOCK TOP PART CPL.
-
2R15009 BEARING KIT KGW 1525 990 DUKEBEARING KIT KGW 1525 990 DUKE
-
346180009 SPACER BUSHING KGW 10X22SPACER BUSHING KGW 10X22
-
450180213S25 DCC-COMPR .DAMP .CONTROL CPL.DCC-COMPR .DAMP .CONTROL CPL.
-
546810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
636120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
746811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
814460016 PISTON + PISTON SPRINGPISTON + PISTON SPRING
-
936120787S ADAPTOR 36MM H26,6 CPL.ADAPTOR 36MM H26,6 CPL.
-
1036120799 BUMP RUBBERBUMP RUBBER
-
1136120015 COUNTER NUTCOUNTER NUT
-
1236120418 ADJUSTING NUTADJUSTING NUT
-
1393010207S SHOCK SPRING 35N/MM - 210MMSHOCK SPRING 35N/MM - 210MM
-
1393010208S SHOCK SPRING 40N/MM - 210MMSHOCK SPRING 40N/MM - 210MM
-
1393010209S SHOCK SPRING 45N/MM - 210MMSHOCK SPRING 45N/MM - 210MM
-
1436120386 SPRING RET . H=3, D=14,5SPRING RET . H=3, D=14,5
-
1536120781S12 MONOSHOCK LOWER PART CPL.MONOSHOCK LOWER PART CPL.
-
9850180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99R12023 REPAIR KITREPAIR KIT
