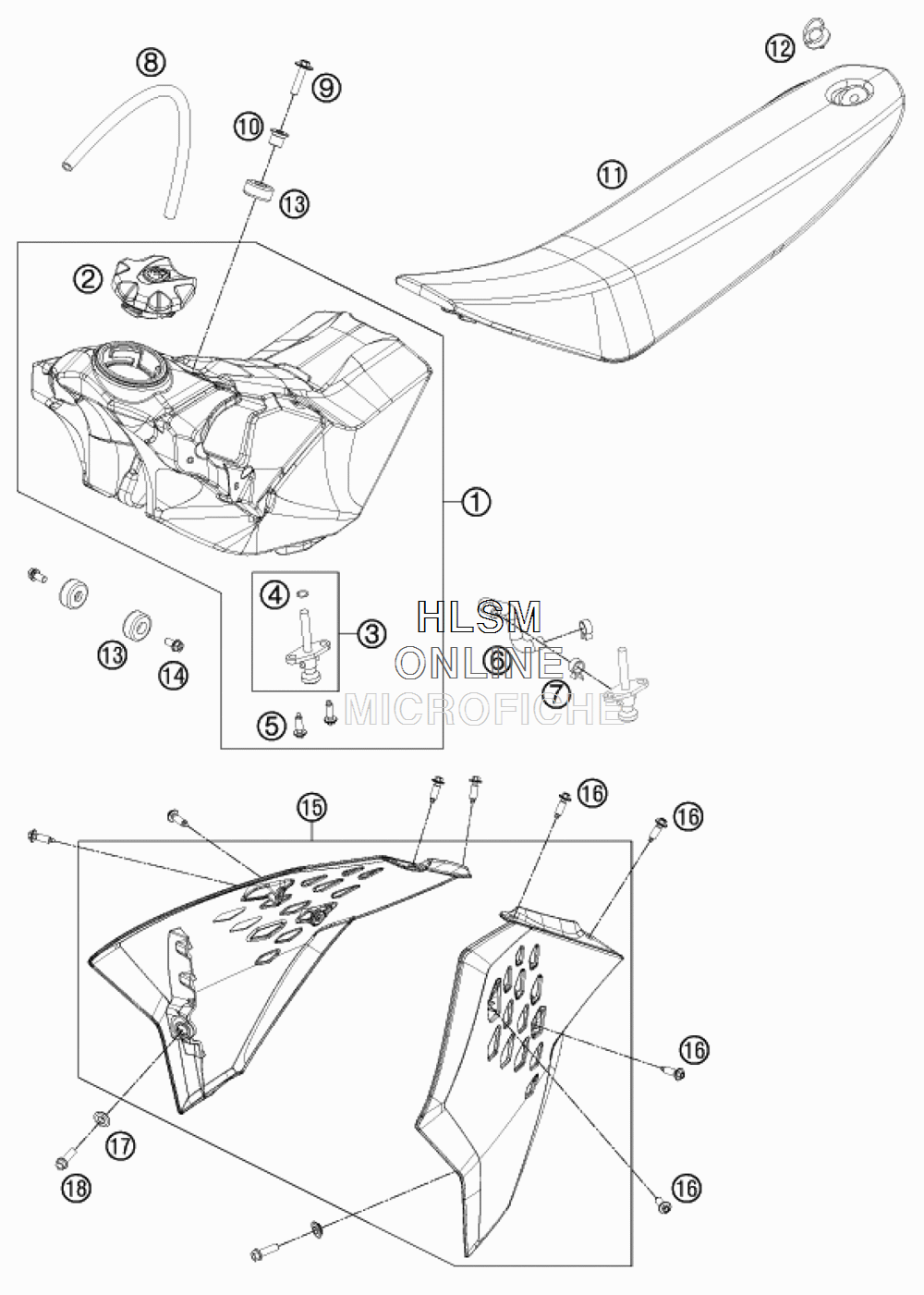

TANK SEAT COVER для Ktm 65 SX - 2015 года выпуска
-
№АртикулНазвание
-
14620701313330 FUEL TANK CPL. 3LFUEL TANK CPL. 3L
-
278107008044X4 TANK PLUG CPL. 14TANK PLUG CPL. 14
-
358507003200 FUEL COCK CPL.FUEL COCK CPL.
-
40770020130 O-RING 1,78X10,82X14,38 2-013O-RING 1,78X10,82X14,38 2-013
-
50017060205 SCREW FOR PLASTIC K60X20 SW6SCREW FOR PLASTIC K60X20 SW6
-
646207016000 FUEL PREFORMED HOSEFUEL PREFORMED HOSE
-
758007117000 YDNAC-C LAMP 10107 10MMYDNAC-C LAMP 10107 10MM
-
878007000270 PVC-HOSE 5,6X10X270M MPVC-HOSE 5,6X10X270M M
-
90024060273 COLLAR SCREW M6X27 TXCOLLAR SCREW M6X27 TX
-
1077307026000 TANK BUSHINGTANK BUSHING
-
1146207040000 SEA TSEA T
-
1245007040051 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
1350307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
140025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
154620805400004D SPOILER SET 65 SX2015 WITH DECALSPOILER SET 65 SX2015 WITH DECAL
-
160017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
1750308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
180025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
