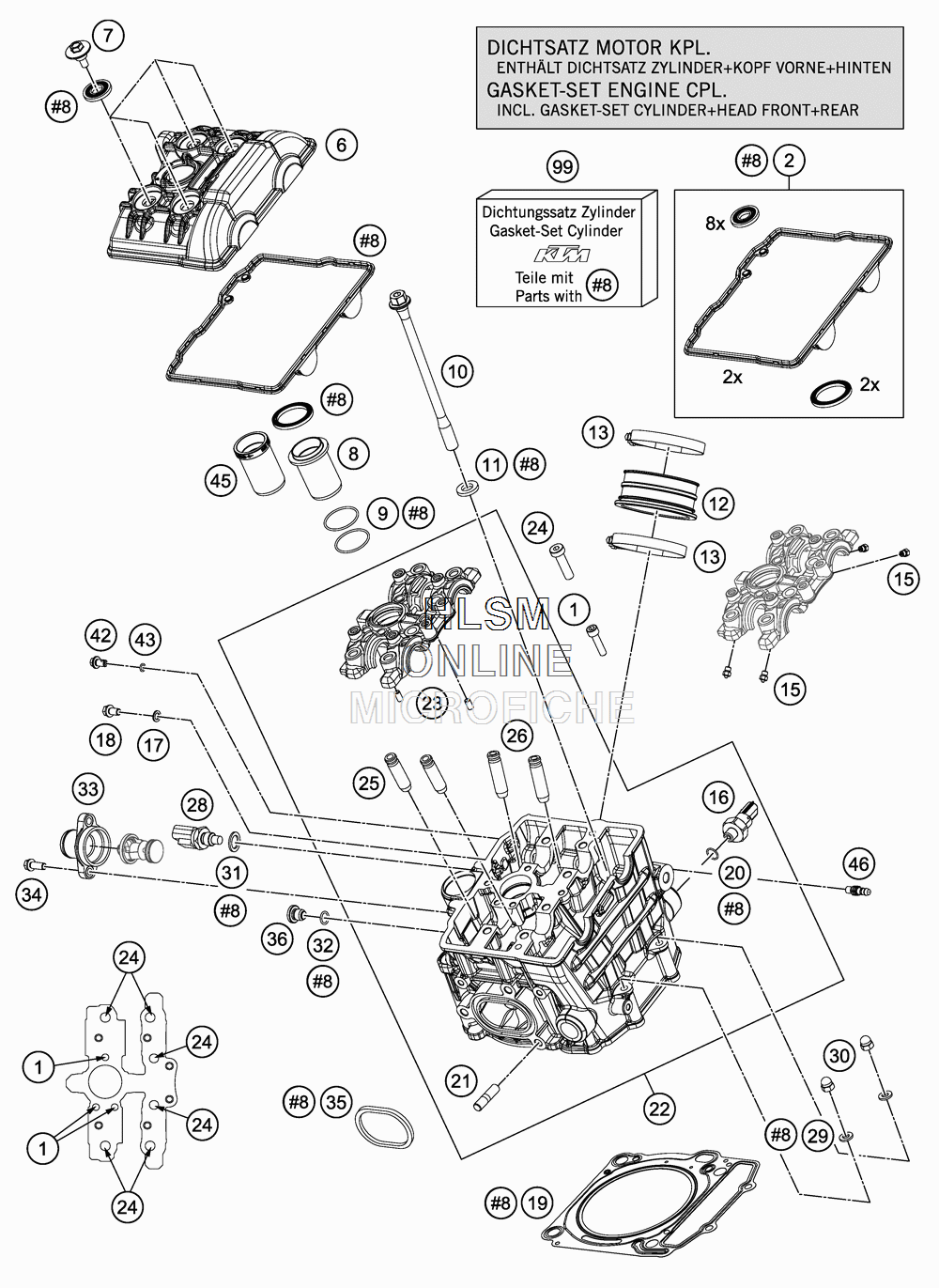

CYLINDER HEAD FRONT для Ktm 1190 ADVENTURE ABS ORANGE - 2016 года выпуска
-
№АртикулНазвание
-
10912060255 AH SCREW DIN0912-M 6X25 10.9AH SCREW DIN0912-M 6X25 10.9
-
261236099100 VALVE COVER GASKET SETVALVE COVER GASKET SET
-
66123605210033 VALVE COVER FRONTVALVE COVER FRONT
-
760036052020 COLLAR SCREW M 6 WS=10COLLAR SCREW M 6 WS=10
-
860336075000 SPARK PLUG SHAFTSPARK PLUG SHAFT
-
90770298178 O-RING 29,87X1,78 VITONO-RING 29,87X1,78 VITON
-
1061236079000 CYLINDER HEAD SCREWCYLINDER HEAD SCREW
-
1161236079050 WASHER 11,1X20X3WASHER 11,1X20X3
-
1261336044000 INTAKE BOOTINTAKE BOOT
-
1361336048000 HOSE CLAMP GEMI 75HOSE CLAMP GEMI 75
-
1560030063050 OIL JET 50OIL JET 50
-
1661238091000 OIL PRESSURE SWITCH "BITRON"OIL PRESSURE SWITCH "BITRON"
-
170603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
180025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
1969130036000 CYLINDER HEAD GASKET MLSCYLINDER HEAD GASKET MLS
-
200770080015 O-RINGO-RING
-
210835080165 STUD M 8X16STUD M 8X16
-
226133602010024 CYL. HEAD CPL. FRONTCYL. HEAD CPL. FRONT
-
230402050980 NEEDLE ROLLER DIN5402 5X9,8NEEDLE ROLLER DIN5402 5X9,8
-
240984080305 AH SCREW DIN7984-M 8X30 10.9AH SCREW DIN7984-M 8X30 10.9
-
2561236026001 VALVE GUIDE EXHAUSTVALVE GUIDE EXHAUST
-
2661236025001 VALVE GIUDE INTAKE 6MMVALVE GIUDE INTAKE 6MM
-
280908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
290125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
3061230045000 CAP NUT M6 STAINLESS STEELCAP NUT M6 STAINLESS STEEL
-
3158038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
3207700900151 O-RING 9X1,5 V80 SHO-RING 9X1,5 V80 SH
-
3361235019100 WATER CONNECTION CPL.WATER CONNECTION CPL.
-
340025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
3569005005100 EXHAUST PIPE FLANGE GASKETEXHAUST PIPE FLANGE GASKET
-
3677336056095 SCREW PLUGSCREW PLUG
-
4259036006090 VENT SCREW M6X10 CPL.VENT SCREW M6X10 CPL.
-
430770050012 O-RING 5,0X1,2 NBR 70O-RING 5,0X1,2 NBR 70
-
4560236075000 INSERT SPARK-PLUG SHAFTINSERT SPARK-PLUG SHAFT
-
4660036023200 VACUUM CONNECTION M6/0.75MMVACUUM CONNECTION M6/0.75MM
-
9969130097000 GASKET KIT CYLINDER+HEAD F+RGASKET KIT CYLINDER+HEAD F+R
