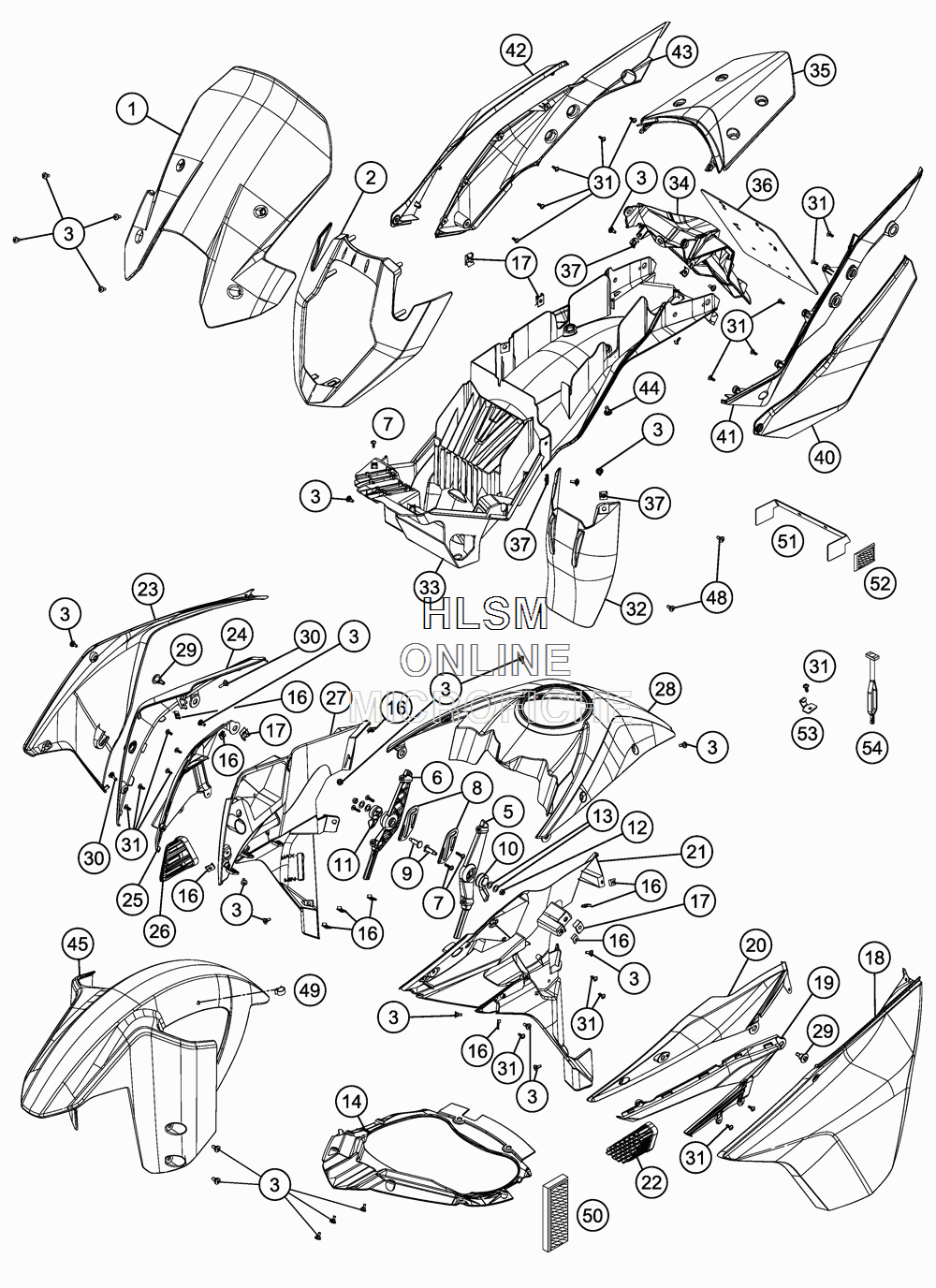

MASK FENDER для Ktm 1190 ADVENTURE ABS ORANGE - 2016 года выпуска
-
№АртикулНазвание
-
160308108000 WIND SHIELDWIND SHIELD
-
26030800100033 HEADLIGHT MASKHEADLIGHT MASK
-
369008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
560308008050 WIND SHIELD SUPPORT L/SWIND SHIELD SUPPORT L/S
-
660308008051 WIND SHIELD SUPPORT R/SWIND SHIELD SUPPORT R/S
-
70081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
860308008055 SLIDING SHEET WIND SHIELDSLIDING SHEET WIND SHIELD
-
960308008056 TENSION BOLTTENSION BOLT
-
1060308008052 TENSION LEVER L/STENSION LEVER L/S
-
1160308008053 TENSION LEVER R/STENSION LEVER R/S
-
120985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
130093081508 BELLEVILLE SPRING 8,2X15X0,8BELLEVILLE SPRING 8,2X15X0,8
-
1460308005000 COCKPIT COVER LOWER SIDECOCKPIT COVER LOWER SIDE
-
1669008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
1754603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
1860308050000E CB SPOILER L/SCB SPOILER L/S
-
196030800205033 AIR INTAKE L/SAIR INTAKE L/S
-
2060308002000B1A MASK SPOILER L/SMASK SPOILER L/S
-
2160308025000 INNER COVER LEFTINNER COVER LEFT
-
2260308021050 COVERING GRID AIR INTAKE L/SCOVERING GRID AIR INTAKE L/S
-
2360308051000ECB SPOILER R/SSPOILER R/S
-
2460308003000B1A MASK SPOILER R/SMASK SPOILER R/S
-
256030800305033 AIR INTAKE R/SAIR INTAKE R/S
-
2660308031050 COVERING GRID AIR INTAKE RIGHTCOVERING GRID AIR INTAKE RIGHT
-
2760308026000 INNER COVER RIGHTINNER COVER RIGHT
-
2860308030000ECA COVER FUEL TANK (ORANGE)COVER FUEL TANK (ORANGE)
-
2960035001000 SPECIAL SCREW M6X21 WS=8SPECIAL SCREW M6X21 WS=8
-
3069008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
310081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
3260304050000 SPLASH PROTECTIONSPLASH PROTECTION
-
3360308019000 TAIL END LOWER PARTTAIL END LOWER PART
-
3460308015000 NUMBER PLATE SUPPORTNUMBER PLATE SUPPORT
-
356030801300033 REAR FENDERREAR FENDER
-
3660012081200 LICENCE FITTINGLICENCE FITTING
-
3754603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
4060308041000E CB SIDECOVER L/SCB SIDECOVER L/S
-
416030804300033 REAR SIDE COVER LEFTREAR SIDE COVER LEFT
-
4260308042000E CB SIDECOVER R/SCB SIDECOVER R/S
-
436030804400033 REAR SIDE COVER RIGHTREAR SIDE COVER RIGHT
-
4483008000015 SPECIAL SCREW M6X15X3SPECIAL SCREW M6X15X3
-
456030811000033 FRONTFENDERFRONTFENDER
-
480025080126 HH COLLAR SCREW M8X12HH COLLAR SCREW M8X12
-
4958111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
5060012080000 SIDE REFLECTOR (YELLOW)SIDE REFLECTOR (YELLOW)
-
5162512081000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
5216512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
5360312062000 BRACKET FOR VEHICLE TOOLSBRACKET FOR VEHICLE TOOLS
-
5450303018000 RUBBER L=145MMRUBBER L=145MM
