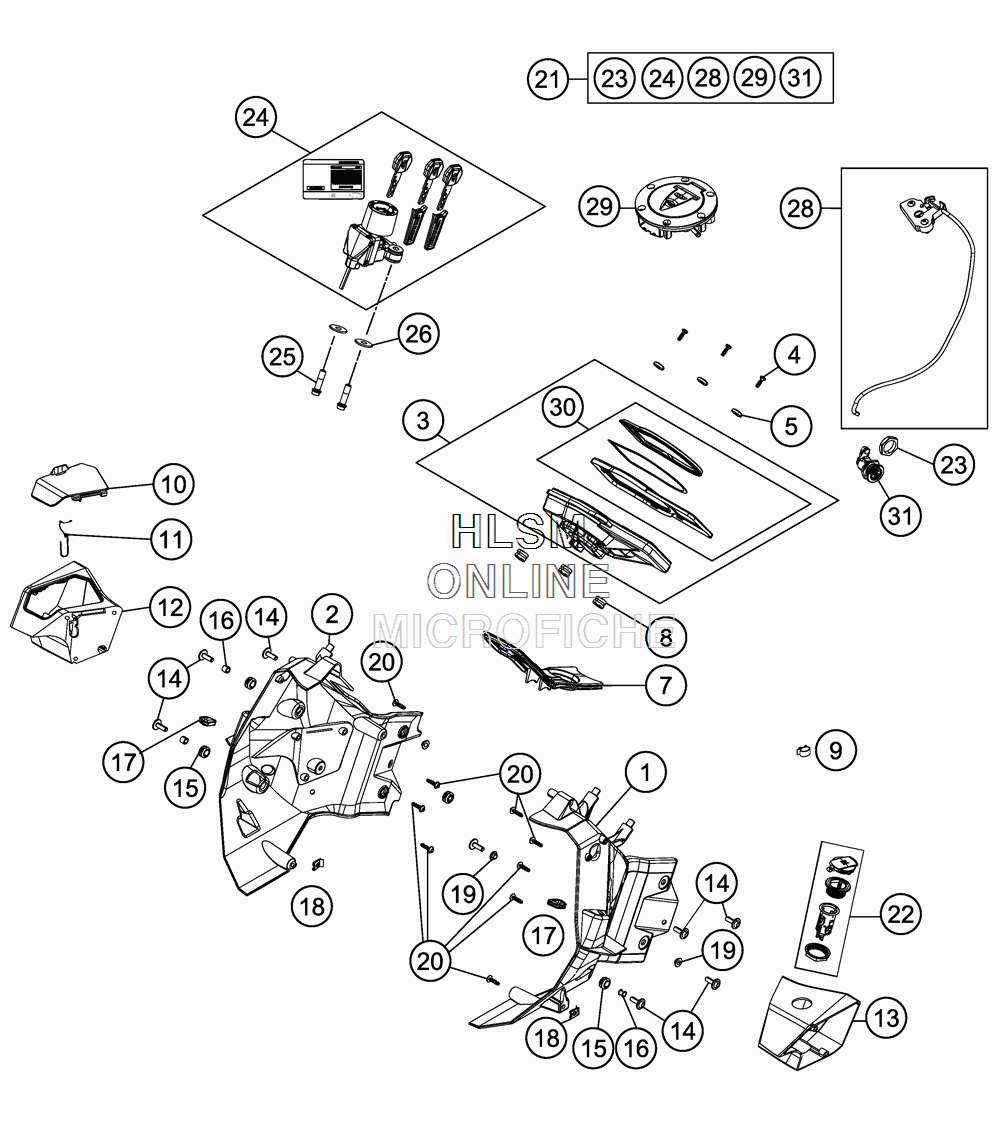

INSTRUMENTS / LOCKSYSTEM для Ktm 1190 ADVENTURE ABS ORANGE - 2016 года выпуска
-
№АртикулНазвание
-
160314010000 COCKPIT SUPPORT L/SCOCKPIT SUPPORT L/S
-
260314011000 COCKPIT SUPPORT R/SCOCKPIT SUPPORT R/S
-
360414069000 SPEEDOMETERSPEEDOMETER
-
40081250141 SCREW FOR PLASTIC PT K50X14T25SCREW FOR PLASTIC PT K50X14T25
-
560308045000 SPECIAL WASHER 4.5X16SPECIAL WASHER 4.5X16
-
760314012000 IGNITION LOCK CAPIGNITION LOCK CAP
-
861314069051 DAMP. COMPONENT SPEEDOMETERDAMP. COMPONENT SPEEDOMETER
-
957013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
1060314079000 STORAGE BOX COVERSTORAGE BOX COVER
-
1160314080000 STORAGE BOX SPRINGSTORAGE BOX SPRING
-
1260314078000 STORAGE BOXSTORAGE BOX
-
1360314070000 COCKPIT COVER L/SCOCKPIT COVER L/S
-
1469014017000 SPECIAL SCREW M6X18 ISA30SPECIAL SCREW M6X18 ISA30
-
1560006001022 RUB.SLEEVE FLOAT CHAMB.VENTINGRUB.SLEEVE FLOAT CHAMB.VENTING
-
1669014014000 BUSHING 6,1X9,2X7,5BUSHING 6,1X9,2X7,5
-
1760308008057 RUBBER SLEEVERUBBER SLEEVE
-
1854603048400 RANGE CHANGE MET. NUT M5 15460RANGE CHANGE MET. NUT M5 15460
-
1969004060050 BUSHING CHAIN GUARDBUSHING CHAIN GUARD
-
200081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
2160311066344 LOCK SYSTEM GKS CPL.LOCK SYSTEM GKS CPL.
-
2260311042000 POWER OUTLET 12VPOWER OUTLET 12V
-
2369007050050 NUT SEAT LOCK M22X1,5NUT SEAT LOCK M22X1,5
-
2460311066100 IGNITION LOCKIGNITION LOCK
-
250025080306S HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
260021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
2860307050000 SEAT LOCK CPL.SEAT LOCK CPL.
-
2960307008100 TANK CAPTANK CAP
-
3060314069050 SPEEDOMETER FRAME CPL.SPEEDOMETER FRAME CPL.
-
3160307050020 LOCK CYLINDER SEAT LOCKLOCK CYLINDER SEAT LOCK
