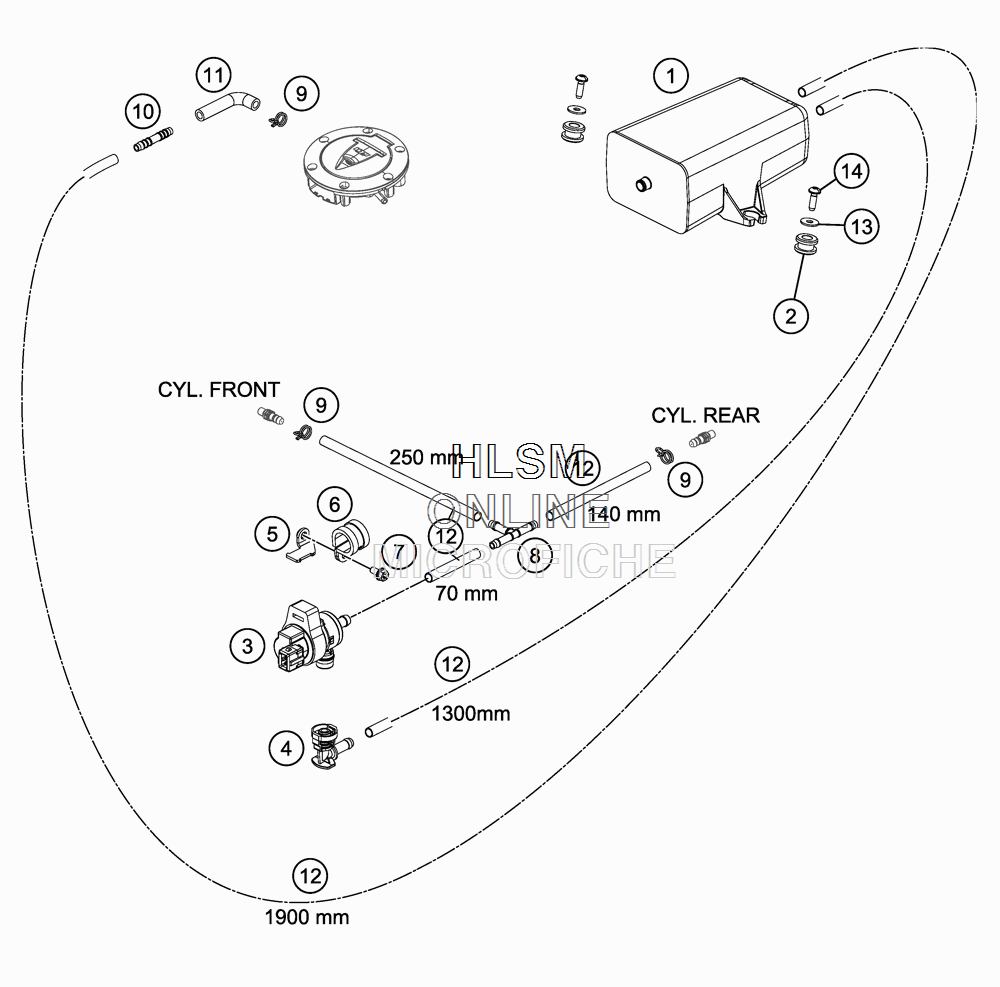

EVAPORATE CANISTER для Ktm 1190 ADVENTURE ABS ORANGE - 2016 года выпуска
-
№АртикулНазвание
-
160415001000 EVAPORATE CANISTEREVAPORATE CANISTER
-
260039030000 VIBRATION DAMPER DIGITALBOXVIBRATION DAMPER DIGITALBOX
-
361115015000 VALVE FOR CARBON CANISTERVALVE FOR CARBON CANISTER
-
461115016000 FITTING PIECE NQV2 NW7 90°FITTING PIECE NQV2 NW7 90°
-
576515032000 RETAINING PLATE VALVE ECRETAINING PLATE VALVE EC
-
659007439000 CLAMP RSGU 18/15CLAMP RSGU 18/15
-
70025050106 COLLAR SCREW M5X10 ISA30COLLAR SCREW M5X10 ISA30
-
860015022000 T-CONNECTOR TS-6T-CONNECTOR TS-6
-
958007017000 YDNAC CLAMP 10101 (10,4MM)YDNAC CLAMP 10101 (10,4MM)
-
1069015019010 HOSE CONNECTION STRAIGHTHOSE CONNECTION STRAIGHT
-
1161315022000 PREFORMED HOSE 6X10 FPMPREFORMED HOSE 6X10 FPM
-
1278015019000 HOSE EPA D=6/10 L=2000MMHOSE EPA D=6/10 L=2000MM
-
130021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
140081050161 EJOT PT SCREW K50X16 1451EJOT PT SCREW K50X16 1451
