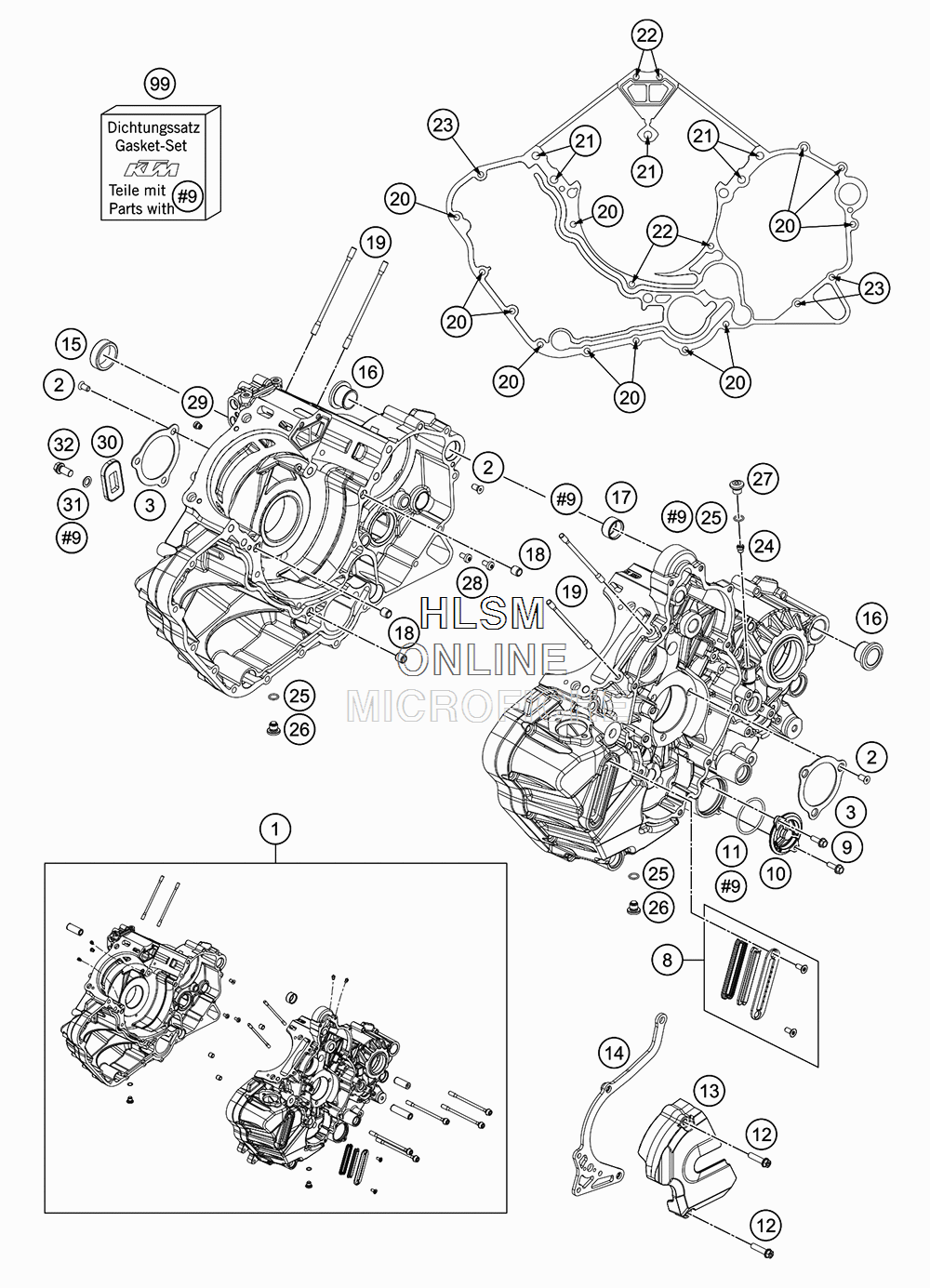

ENGINE CASE для Ktm 1290 SUPER DUKE GT GREY - 2017 года выпуска
-
№АртикулНазвание
-
16143000004424 ENGINE CASE CPL. W . BEARINGSENGINE CASE CPL. W . BEARINGS
-
20019050106S INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
361230084000 BRACKET FOR BEARING INSERT 08BRACKET FOR BEARING INSERT 08
-
862638084044 OIL SIGHT GLASS CPL.OIL SIGHT GLASS CPL.
-
90025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
1075038041200 OILFILTER CAPOILFILTER CAP
-
1107700390261 O-RING 39,34X2,62O-RING 39,34X2,62
-
120025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
1369030060144 PINION COVER CPL.PINION COVER CPL.
-
1460330047144 CHAIN FAIL. PROTECTION CPL.CHAIN FAIL. PROTECTION CPL.
-
1561330157050 SLIDE BEARINGSLIDE BEARING
-
1660030010000 SWING BEARING OUTSIDE LC8SWING BEARING OUTSIDE LC8
-
1760030023000 DOWEL 20,1X24X12DOWEL 20,1X24X12
-
1849030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
1961230044000 STUD M6X110STUD M6X110
-
200025060806 HH COLLAR SCREW M6X80HH COLLAR SCREW M6X80
-
2161230043000 CASE SCREW M8X125 ASCASE SCREW M8X125 AS
-
220025060906 HH COLLAR SCREW M6X90HH COLLAR SCREW M6X90
-
230025060606 HH COLLAR SCREW M6X60HH COLLAR SCREW M6X60
-
2460038029200 REDUCING JET "30" M6X0,75REDUCING JET "30" M6X0,75
-
2507700900151 O-RING 9X1,5 V80 SHO-RING 9X1,5 V80 SH
-
2677336056095 SCREW PLUGSCREW PLUG
-
2777236080100 SCREW PLUGSCREW PLUG
-
280018050103 INT. TORX OVAL HEAD M 5X10 8.8INT. TORX OVAL HEAD M 5X10 8.8
-
2957031523100 MAIN JET 100 DELLORTOMAIN JET 100 DELLORTO
-
3060005026000 SLS-VALVESLS-VALVE
-
3145038017000 SEAL RING 8X14X1 AISEAL RING 8X14X1 AI
-
320025080166 HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
9961330099000 GASKET KIT ENGINE KPL. 1290 SDGASKET KIT ENGINE KPL. 1290 SD
