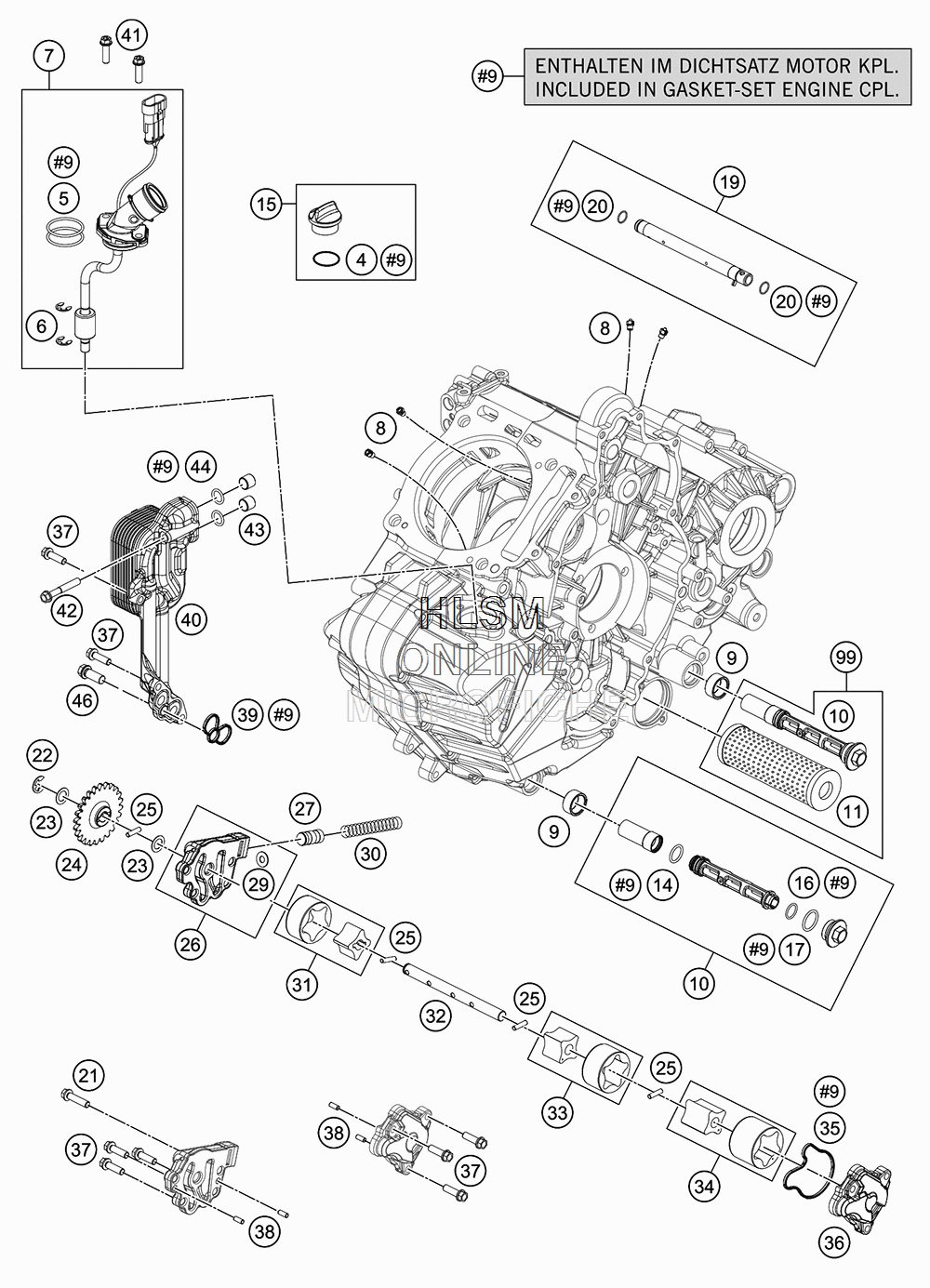

LUBRICATING SYSTEM для Ktm 1290 SUPER DUKE GT GREY - 2017 года выпуска
-
№АртикулНазвание
-
40770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
50770300020 O-RING 30X2,0 FPMO-RING 30X2,0 FPM
-
60799070000 TAB WASHER DIN6799-RS 7,0TAB WASHER DIN6799-RS 7,0
-
761338085000 OIL INFILLING PIPE CPL.OIL INFILLING PIPE CPL.
-
860030063070 OIL JET 70 M5OIL JET 70 M5
-
961238017000 OIL SCREEN BUSHINGOIL SCREEN BUSHING
-
1061238021100 OIL SCREEN CPL.OIL SCREEN CPL.
-
1161338015200 OIL FILTEROIL FILTER
-
140770140200 O-RING 14,00X2,00O-RING 14,00X2,00
-
1558030120000 OIL FILLER CAP M24X3 W. O-RINGOIL FILLER CAP M24X3 W. O-RING
-
160770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
170770170200 O-RING 17,00X2,00O-RING 17,00X2,00
-
1961230065000 OIL INJECTION TUBE CPL.OIL INJECTION TUBE CPL.
-
200770010010 O-RING 10,00X1,00 NBR 70 SHO-RING 10,00X1,00 NBR 70 SH
-
210025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
220799080000 TAB WASHER DIN6799 RS8TAB WASHER DIN6799 RS8
-
2360038007010 WASHER 10X16X0,5WASHER 10X16X0,5
-
2460038001324 OIL PUMP GEAR 24ZOIL PUMP GEAR 24Z
-
250402041580 NEEDLE ROLLER NRB 4X15,8 G2NEEDLE ROLLER NRB 4X15,8 G2
-
2661238009144 PRESSURE PUMP COVER CPL.PRESSURE PUMP COVER CPL.
-
2760038028000 CONTROL PISTON LC8CONTROL PISTON LC8
-
2950337073000 SHIMSHIM
-
3061438026000 OIL PRESSURE SPRINGOIL PRESSURE SPRING
-
3160038009000 ROTOR-SET 19MMROTOR-SET 19MM
-
3261238002000 OIL PUMP SHAFTOIL PUMP SHAFT
-
3361238011100 ROTOR SET 22MMROTOR SET 22MM
-
3461238010100 ROTOR SET 30MMROTOR SET 30MM
-
3561238008150 MOLDED RING SUCTION PUMP COVERMOLDED RING SUCTION PUMP COVER
-
3661238008200 SUCTION PUMP COVERSUCTION PUMP COVER
-
370025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
380402050980 NEEDLE ROLLER DIN5402 5X9,8NEEDLE ROLLER DIN5402 5X9,8
-
3961238051000 MOLDED RINGMOLDED RING
-
406923805000033 OIL COOLER CPL.OIL COOLER CPL.
-
410025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
420025060506 HH COLLAR SCREW M6X50HH COLLAR SCREW M6X50
-
4361238052000 BUSHINGBUSHING
-
440770012021 O-RING 12X2 VITON GREENO-RING 12X2 VITON GREEN
-
460025080206 HH COLLAR SCREW M8X20HH COLLAR SCREW M8X20
-
9900050000068 OILFILTER SERVICE KITOILFILTER SERVICE KIT
