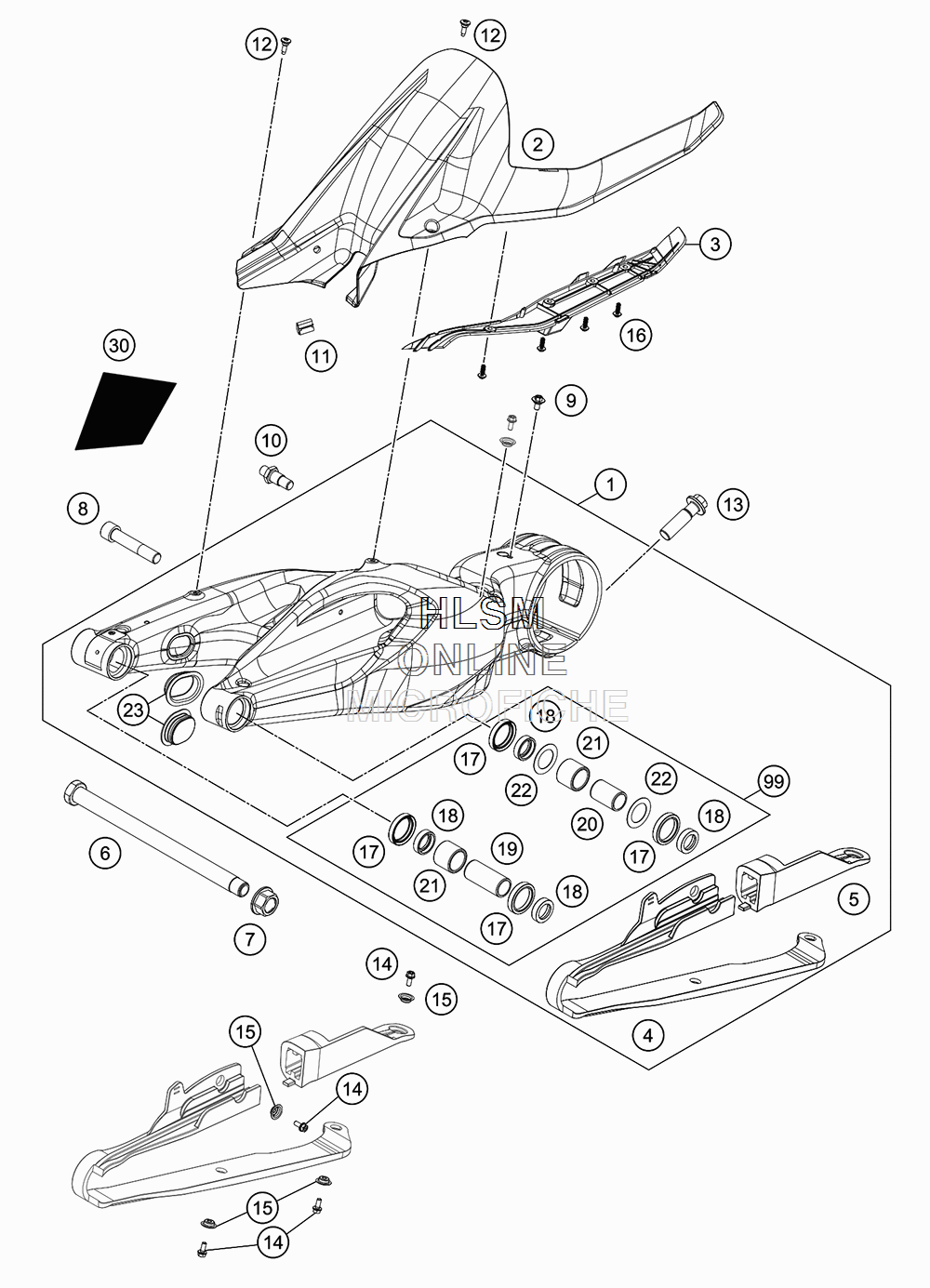

SWING ARM для Ktm 1290 SUPER DUKE GT GREY - 2017 года выпуска
-
№АртикулНазвание
-
16140403004433A SWINGARM CPL. SD-GTSWINGARM CPL. SD-GT
-
261304050100 REARFENDERREARFENDER
-
361304051000 BRACKET SPLASH PROTECTORBRACKET SPLASH PROTECTOR
-
461304060000 CHAIN SLIDING GUARD FRONTCHAIN SLIDING GUARD FRONT
-
561304070000 CHAIN SLIDING GUARD REARCHAIN SLIDING GUARD REAR
-
669004037244 SWING ARM BOLTSWING ARM BOLT
-
760004038200 COLLAR NUT M19X1,5 SW=27MMCOLLAR NUT M19X1,5 SW=27MM
-
860004017000 SCREW M14X1,5 L=73MMSCREW M14X1,5 L=73MM
-
983008000012 SPECIAL SCREW M6X12X3SPECIAL SCREW M6X12X3
-
1076004142000 BOLT BRAKE SADDLE BRACKETBOLT BRAKE SADDLE BRACKET
-
1161304042000 CABLE SUPPORTCABLE SUPPORT
-
1269008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
1361310021000 HH COLLAR SCREW M16X1,5X55HH COLLAR SCREW M16X1,5X55
-
140025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
1546104066050 BUSH FOR CHAINSLIDER GUARDBUSH FOR CHAINSLIDER GUARD
-
160081050141 EJOT PT SCREW 50X14 WN 1451EJOT PT SCREW 50X14 WN 1451
-
170760304073 SHAFT SEAL RING 30X40X7SHAFT SEAL RING 30X40X7
-
1860004034000 BUCKET F. SHAFT SEAL RINGBUCKET F. SHAFT SEAL RING
-
1969004032000 INNER RING JR 20X25X56,5INNER RING JR 20X25X56,5
-
2060004032000 INNER RING JR20X25X38,5INNER RING JR20X25X38,5
-
2160004031000 NEEDLE BUSH HK2526BNEEDLE BUSH HK2526B
-
2260004033000 STOP DISKSTOP DISK
-
2361304041100 CLOSING COVER SWINGARMCLOSING COVER SWINGARM
-
3061604030010 SWING PROTECTIVE FOIL SW .SWING PROTECTIVE FOIL SW .
-
9969004230010 SWING ARM REP. KITSWING ARM REP. KIT
