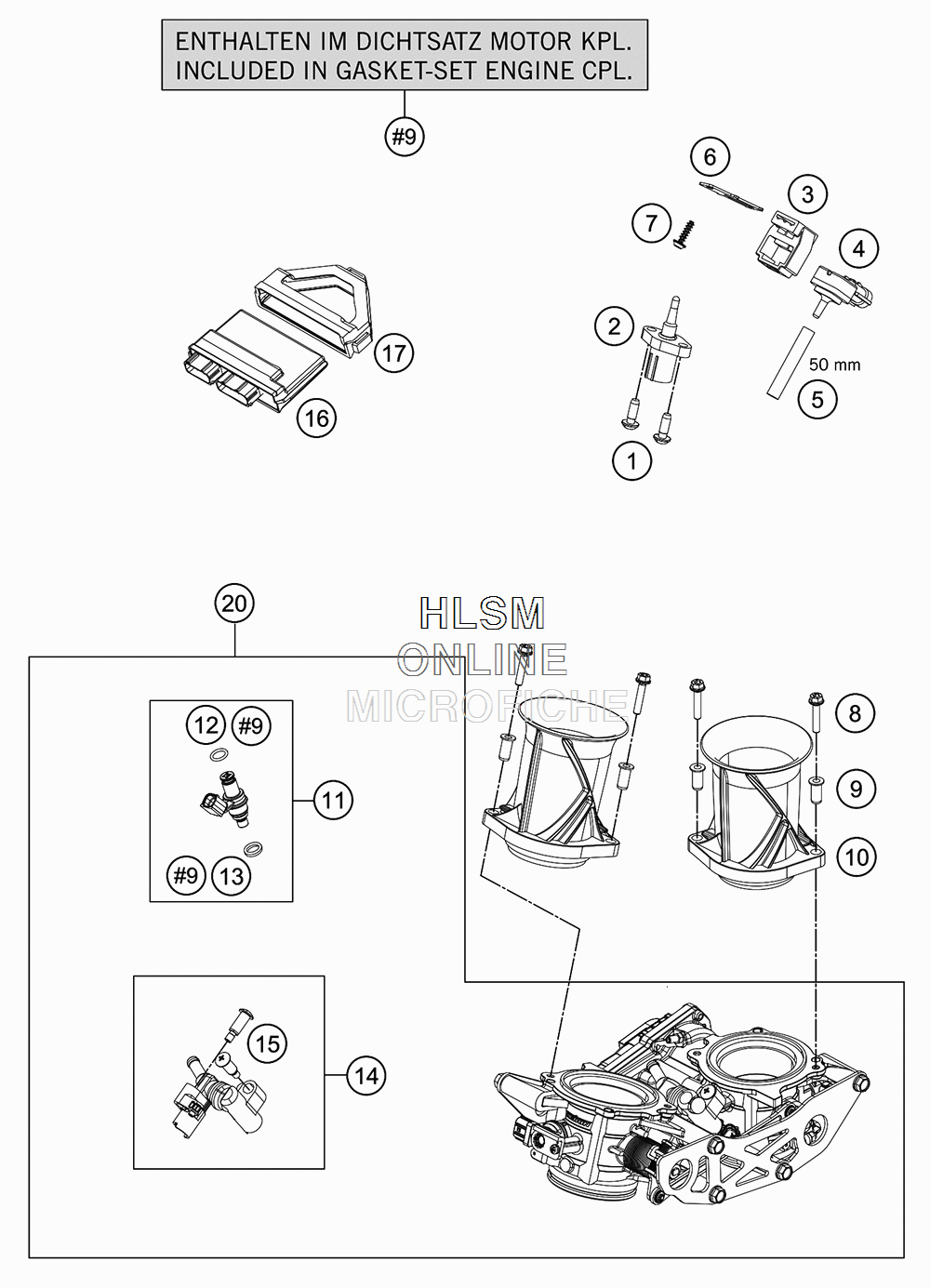

THROTTLE BODY для Ktm 1290 SUPER DUKE GT GREY - 2017 года выпуска
-
№АртикулНазвание
-
10081050161 EJOT PT SCREW K50X16 1451EJOT PT SCREW K50X16 1451
-
261041080000 AMBIENT-AIR TEMPERATURE SENSORAMBIENT-AIR TEMPERATURE SENSOR
-
361041085150 RUBBER SUPP. PRESSURE SENS.RUBBER SUPP. PRESSURE SENS.
-
461041085100 PRESSURE SENSORPRESSURE SENSOR
-
560031098001 HOSE 3,2X8,5 PER METERHOSE 3,2X8,5 PER METER
-
661311085050 SUPPORT VACUUM SENSORSUPPORT VACUUM SENSOR
-
70081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
80025050256S HH COLLAR SCREW M5X25 ISA30HH COLLAR SCREW M5X25 ISA30
-
960306042010 BUSHING INTAKE TRUMPETBUSHING INTAKE TRUMPET
-
1061341040100 INTAKE TRUMPET LENGTH 100INTAKE TRUMPET LENGTH 100
-
1160341023044 FUEL INJECTOR CPL.FUEL INJECTOR CPL.
-
1260341023020 O-RINGO-RING
-
1375041023010 SEAL RINGSEAL RING
-
1460341013044 FUEL PIPE CPL.FUEL PIPE CPL.
-
1575041013060 SCREW SHOULDERSCREW SHOULDER
-
1661341031000 ELECTRONIC CONTROL UNITELECTRONIC CONTROL UNIT
-
1760341031050 ECU RUBBER BRACKETECU RUBBER BRACKET
-
2061341001000 THROTTLE BODYTHROTTLE BODY
