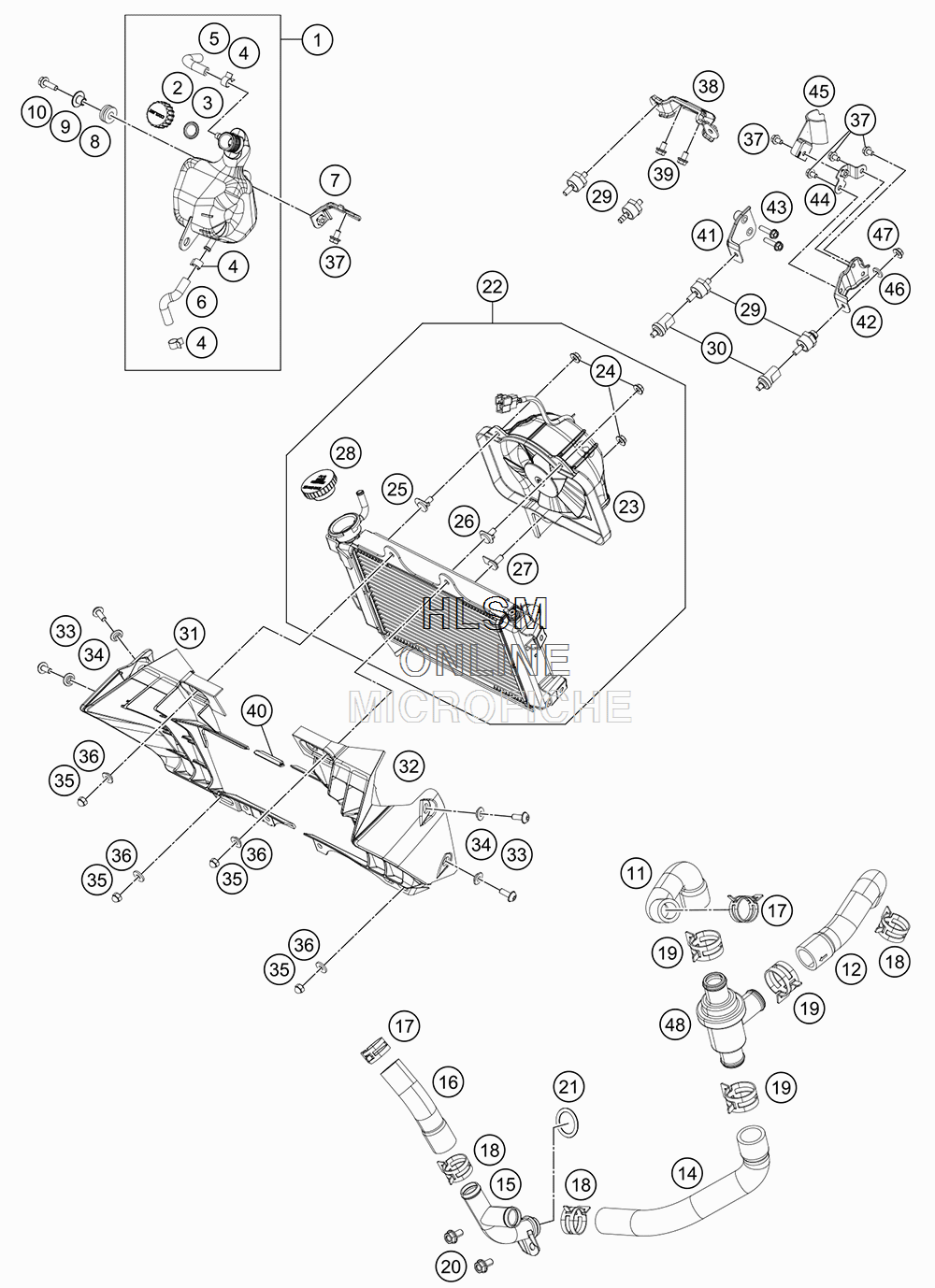

COOLING SYSTEM для Ktm 390 DUKE ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
193035065033 COMPENSATING TANK COMPLETECOMPENSATING TANK COMPLETE
-
290135066000 PLUG F. EXPANSION TANKPLUG F. EXPANSION TANK
-
390102055000 EXPANSION TANK O-RINGEXPANSION TANK O-RING
-
490107018011 CLAMP 10MMCLAMP 10MM
-
590135067000 HOSE 6X10,5X80 MMHOSE 6X10,5X80 MM
-
693035067000 PRE-FORMED HOSEPRE-FORMED HOSE
-
793035065050 RETAINING BRACKETRETAINING BRACKET
-
893008028050 RUBBER BUSHINGRUBBER BUSHING
-
993035065030 RUBBER BUSHINGRUBBER BUSHING
-
1090135017000 THERMOSTATTHERMOSTAT
-
1193035024000 PRE-FORMED HOSEPRE-FORMED HOSE
-
1293035025000 PRE-FORMED HOSEPRE-FORMED HOSE
-
1493035026000 PRE-FORMED HOSEPRE-FORMED HOSE
-
1590635071033 COOLANT PIPE TCOOLANT PIPE T
-
1690235024030 HOSE COOLANT RADIATOR - T-PIPEHOSE COOLANT RADIATOR - T-PIPE
-
1790135020002 HOSE CLAMP D24HOSE CLAMP D24
-
1890135020001 HOSE CLAMP D26HOSE CLAMP D26
-
1990135020003 HOSE CLAMP D28HOSE CLAMP D28
-
21J770018530 O-RING 18,5X3O-RING 18,5X3
-
2293035010033 RADIATOR COMPLETERADIATOR COMPLETE
-
2390835041033 FAN CPL.FAN CPL.
-
2490835041004 FLANGED NUTFLANGED NUT
-
2590835041003 BRACKET FAN MOUNTING 3BRACKET FAN MOUNTING 3
-
2690835041002 BRACKET FAN MOUNTING 2BRACKET FAN MOUNTING 2
-
2790835041001 BRACKET FAN MOUNTING 1BRACKET FAN MOUNTING 1
-
2890135016100 RADIATOR CAPRADIATOR CAP
-
2993335001000 SILENTBLOCK M6SILENTBLOCK M6
-
3093035033020 SPACER FOR RADIATOR COVERSPACER FOR RADIATOR COVER
-
3193035035000 RADIATOR FAIRING RIGHTRADIATOR FAIRING RIGHT
-
3293035034000 RADIATOR FAIRING LEFTRADIATOR FAIRING LEFT
-
3390808043000 SPECIAL SCREW M6X1X16SPECIAL SCREW M6X1X16
-
3493035033010 WASHERWASHER
-
3593035003000 CAP NUT M6CAP NUT M6
-
37J025060103 HH COLLAR SCREW M6X10 SW10HH COLLAR SCREW M6X10 SW10
-
3893035004000 SUPPORTSUPPORT
-
39J025060101 HEXAGON SCREW M6X10HEXAGON SCREW M6X10
-
4093035009050 FLANGEFLANGE
-
4190203006001 RADIATOR SUPPORT R/S BELOWRADIATOR SUPPORT R/S BELOW
-
4290203005001 RADIATOR SUPPORT L/S BELOWRADIATOR SUPPORT L/S BELOW
-
43J025060253 HH COLLAR SCREW M6X25 SW10HH COLLAR SCREW M6X25 SW10
-
4493035017060 RETAINING BRACKETRETAINING BRACKET
-
4593035017050 THERMOSTAT HOLDERTHERMOSTAT HOLDER
-
46J127060003 WASHER SPRING B6WASHER SPRING B6
-
47J926060000 FLANGED NUT M6 WS10 SELF LOCK.FLANGED NUT M6 WS10 SELF LOCK.
-
4890135017000 THERMOSTATTHERMOSTAT
