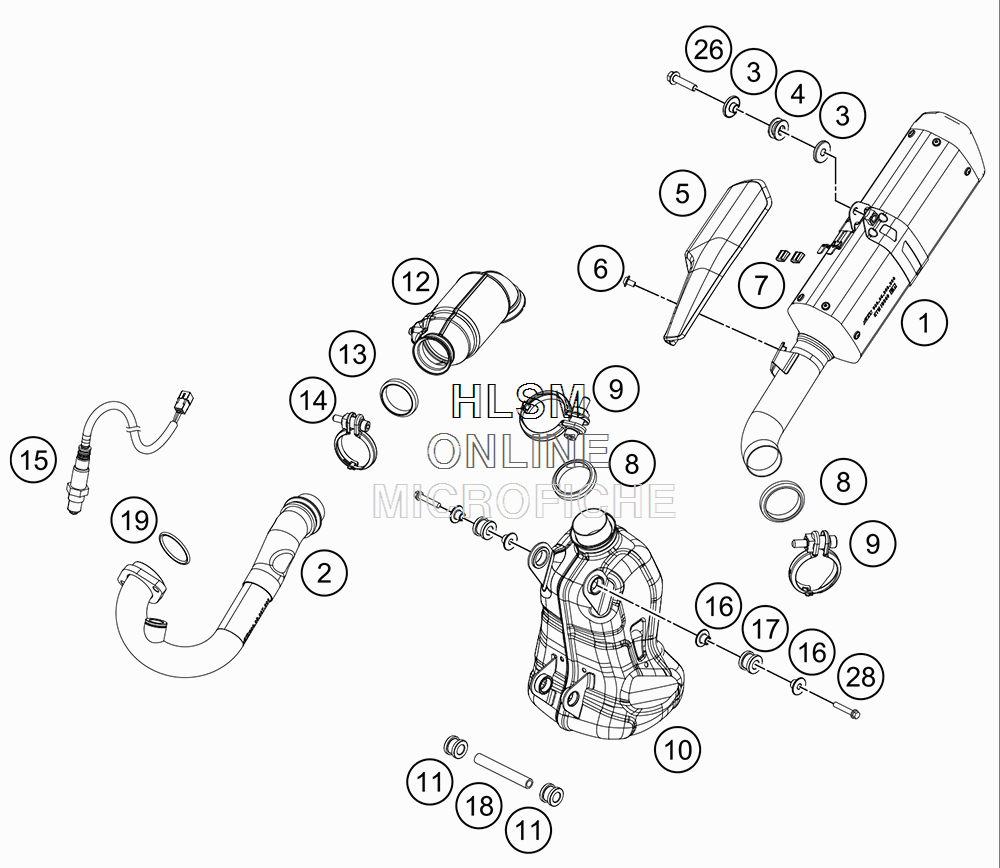

EXHAUST SYSTEM для Ktm 390 DUKE ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
193805583000 MUFFLER EGS - SUB ASSY.MUFFLER EGS - SUB ASSY.
-
293805007000 HEADER CPL.HEADER CPL.
-
393805095000 BUSH MUFFLERBUSH MUFFLER
-
493805096000 DAMPER MUFFLERDAMPER MUFFLER
-
593805011000 MUFFLER SHIELDMUFFLER SHIELD
-
6J031060103 LENS HEAD SCREW M6X10LENS HEAD SCREW M6X10
-
793805011003 GROMMET MUFFLER SHIELDGROMMET MUFFLER SHIELD
-
893805005100 GASKET PIPE CGASKET PIPE C
-
993805058100 CLAMP DIA 60CLAMP DIA 60
-
1093505050000 PREMUFFLERPREMUFFLER
-
1190105068100 DAMPING ELEMENT LOWERDAMPING ELEMENT LOWER
-
1293605008000 CATALYTIC CONVERTER CPL.CATALYTIC CONVERTER CPL.
-
1393805005000 GASKET PIPE BGASKET PIPE B
-
1493805058000 CLAMP DIA 54CLAMP DIA 54
-
1590141090000 LAMBDA SENSORLAMBDA SENSOR
-
1690205086001 DISTANCE BUSHING SIL. MOUNTINGDISTANCE BUSHING SIL. MOUNTING
-
1790205068000 DAMPER , BOTTOMDAMPER , BOTTOM
-
1890105084000 MOUNTING TUBE EDMOUNTING TUBE ED
-
1990105004000 EXHAUST PIPE FLANGE GASKETEXHAUST PIPE FLANGE GASKET
-
26J025080353 BOLT FLANGED M8X35BOLT FLANGED M8X35
-
2890105000002 BOLT SILENCER MTGBOLT SILENCER MTG
