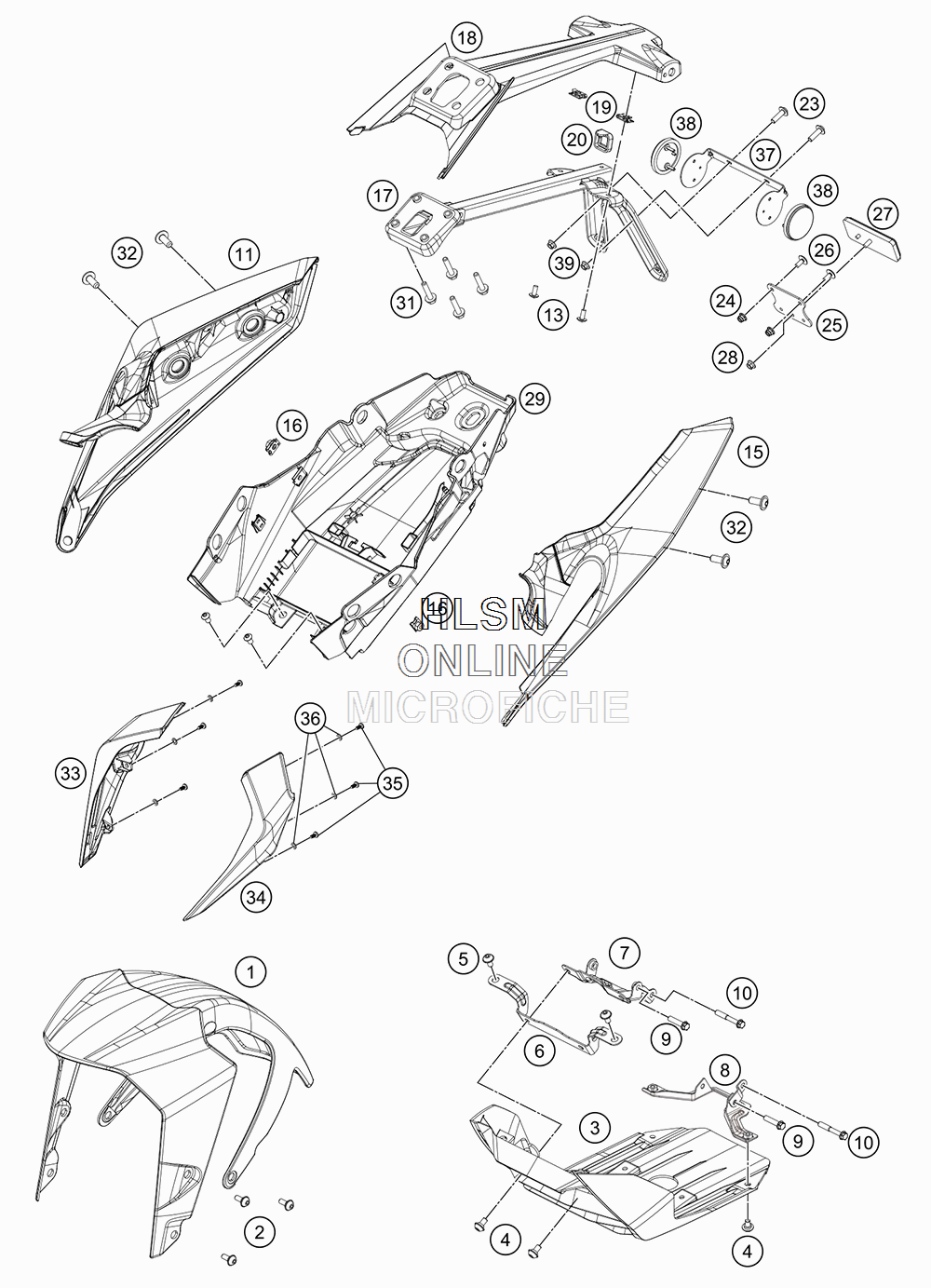

MASK- FENDERS для Ktm 390 DUKE ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
19300801003330 FRONT FENDER CPL. BLACKFRONT FENDER CPL. BLACK
-
2J031050161 LINSENKOPF-SCHRAU BE MIT ABSATZLINSENKOPF-SCHRAU BE MIT ABSATZ
-
393308020000 UNDER -ENGINE FAIRING 250/390UNDER -ENGINE FAIRING 250/390
-
493008020060 SCREW M6X1X9SCREW M6X1X9
-
590508006001 SOCKET HEAD BOLT M6X12SOCKET HEAD BOLT M6X12
-
693008021000 RETAINING BRACKETRETAINING BRACKET
-
793008021020 RETAINING BRACKETRETAINING BRACKET
-
893008021120 BRACKET BELLY PAN REARBRACKET BELLY PAN REAR
-
9J025060144 BOLT FLANGED-SMALLBOLT FLANGED-SMALL
-
10J025060359 BOLT FLANGED-SMALLBOLT FLANGED-SMALL
-
119300804210028 ASSLYSEAT COWL RIGHTASSLYSEAT COWL RIGHT
-
13J031050123 LENS HEAD SCREW M5X12LENS HEAD SCREW M5X12
-
159300804110028 ASSLY DUKE MY17 SEAT COWL LH WHIASSLY DUKE MY17 SEAT COWL LH WHI
-
1690108050001 CLIP NUT M5CLIP NUT M5
-
1793008015000 LICENSE PLATE HOLDER SUPPORTLICENSE PLATE HOLDER SUPPORT
-
1893008015050 LICENSE PLATE HOLDER SUPPORT COVERLICENSE PLATE HOLDER SUPPORT COVER
-
1993008083010 CLIP NUT M5CLIP NUT M5
-
2093008015010 PROTECTION RUBBERPROTECTION RUBBER
-
2390508006003 AH SCREW M6X1X20AH SCREW M6X1X20
-
2490102031010 HEX NUT M5 AF8HEX NUT M5 AF8
-
2590514044000 REFLECTOR MOUNTINGREFLECTOR MOUNTING
-
26J005050123 FLAT HEAD SCREW M6X12 PHFLAT HEAD SCREW M6X12 PH
-
2790514045000 REFLECTORREFLECTOR
-
2890204060001 HH COLLAR NUTHH COLLAR NUT
-
2993008019000 TAIL END LOWER PARTTAIL END LOWER PART
-
31J025060143 HH COLLAR SCREW M6X14 SW8HH COLLAR SCREW M6X14 SW8
-
3290508008001 AH SCREW M8X20AH SCREW M8X20
-
3393008001000EB SIDE MASK RH ORANGESIDE MASK RH ORANGE
-
3493008024000EB SIDE MASK LH ORANGESIDE MASK LH ORANGE
-
35J981030101 SCREW TAPPING PAN CROSS-ST3.5X L10SCREW TAPPING PAN CROSS-ST3.5X L10
-
36J125040003 WASHER PLAIN SMALL 4.5X8X0.5XBLKWASHER PLAIN SMALL 4.5X8X0.5XBLK
-
3790212581000 BRACKET SIDE REFLECTOR REARBRACKET SIDE REFLECTOR REAR
-
3890212582000 SIDE REFLECTOR REARSIDE REFLECTOR REAR
