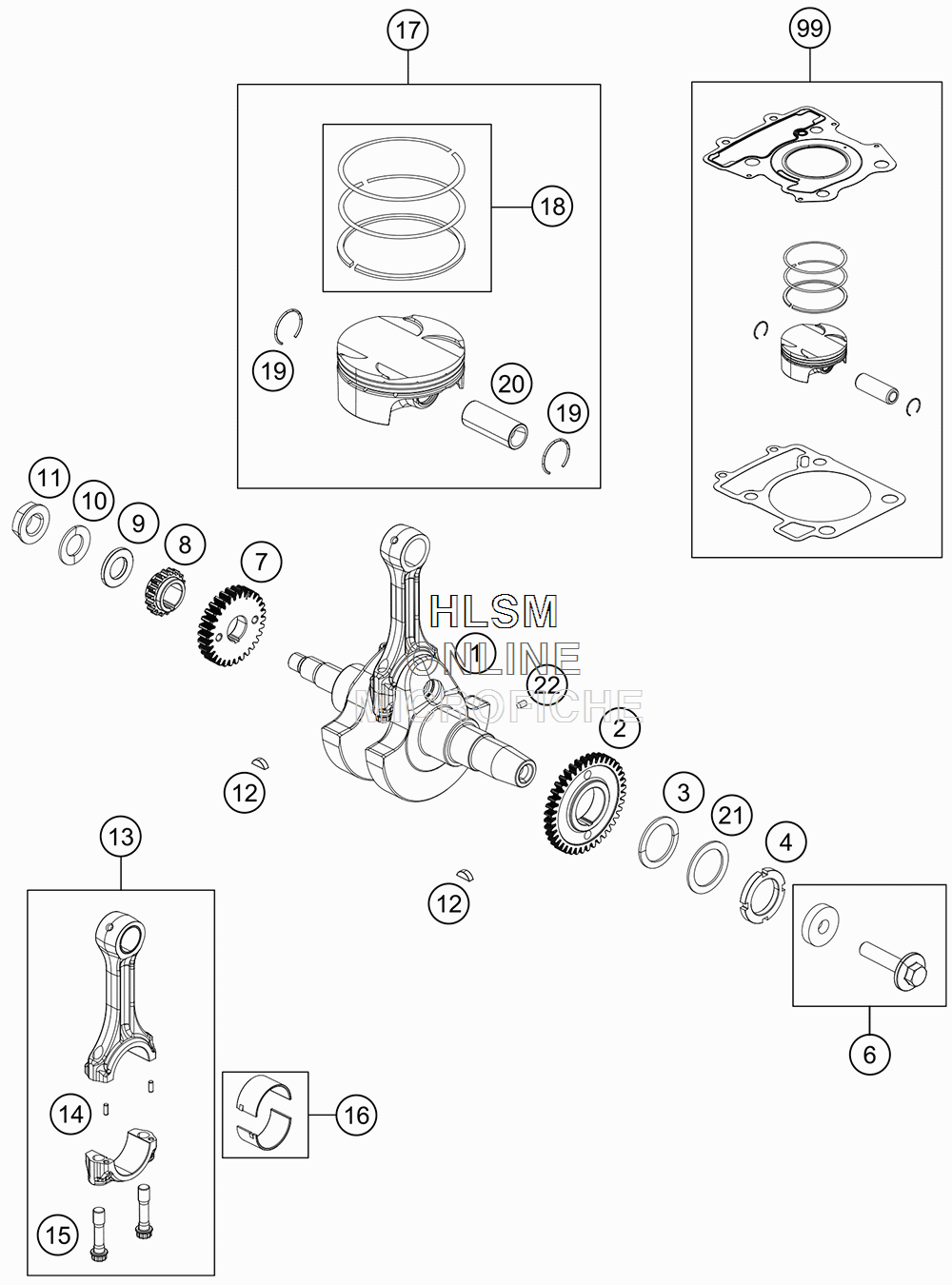

CRANKSHAFT - PISTON для Ktm 390 DUKE ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
193830018100 CRANKSHAFT ASSEMBY COMPCRANKSHAFT ASSEMBY COMP
-
290230055000 GEAR BALANCER DRIVEGEAR BALANCER DRIVE
-
390230069000 CONICAL WASHER 28,35X38X1,75CONICAL WASHER 28,35X38X1,75
-
490130018008 NUT FOR DRIVE WHEEL AGWNUT FOR DRIVE WHEEL AGW
-
690239005050 ROTOR SCREW CPL.ROTOR SCREW CPL.
-
790232023030 PRIMARY GEAR 30TPRIMARY GEAR 30T
-
890236014000 SPROCKET CRANKSHAFTSPROCKET CRANKSHAFT
-
990236015000 WASHER PLAINWASHER PLAIN
-
1090236015001 SPECIAL WASHERSPECIAL WASHER
-
1190230029000 NUT M16X1,5NUT M16X1,5
-
12J888040050 WOODRUFF KEY 4X5X13WOODRUFF KEY 4X5X13
-
1390230015100 CON ROD CPL.CON ROD CPL.
-
1490630015002 PARALLEL PINPARALLEL PIN
-
1590230015013 CON ROD SCREWCON ROD SCREW
-
1690230015010 CONROD BEARING SHELLCONROD BEARING SHELL
-
1690230015011 CONROD BEARING SHELL (GREEN)CONROD BEARING SHELL (GREEN)
-
1690230015012 CONROD BEARING SHELL (BLUE)CONROD BEARING SHELL (BLUE)
-
1790230007000 PISTON CPL.PISTON CPL.
-
1890230030010 PISTON RINGS CPL.PISTON RINGS CPL.
-
1990230074000 RING SNAPRING SNAP
-
2090230033000 PISTON PINPISTON PIN
-
2190230068000 PLAIN WASHER 28,2X39X1,5PLAIN WASHER 28,2X39X1,5
-
2290134013000 PARALLEL PINPARALLEL PIN
-
9990230007010 PISTON KIT 390 DUKE 2013PISTON KIT 390 DUKE 2013
