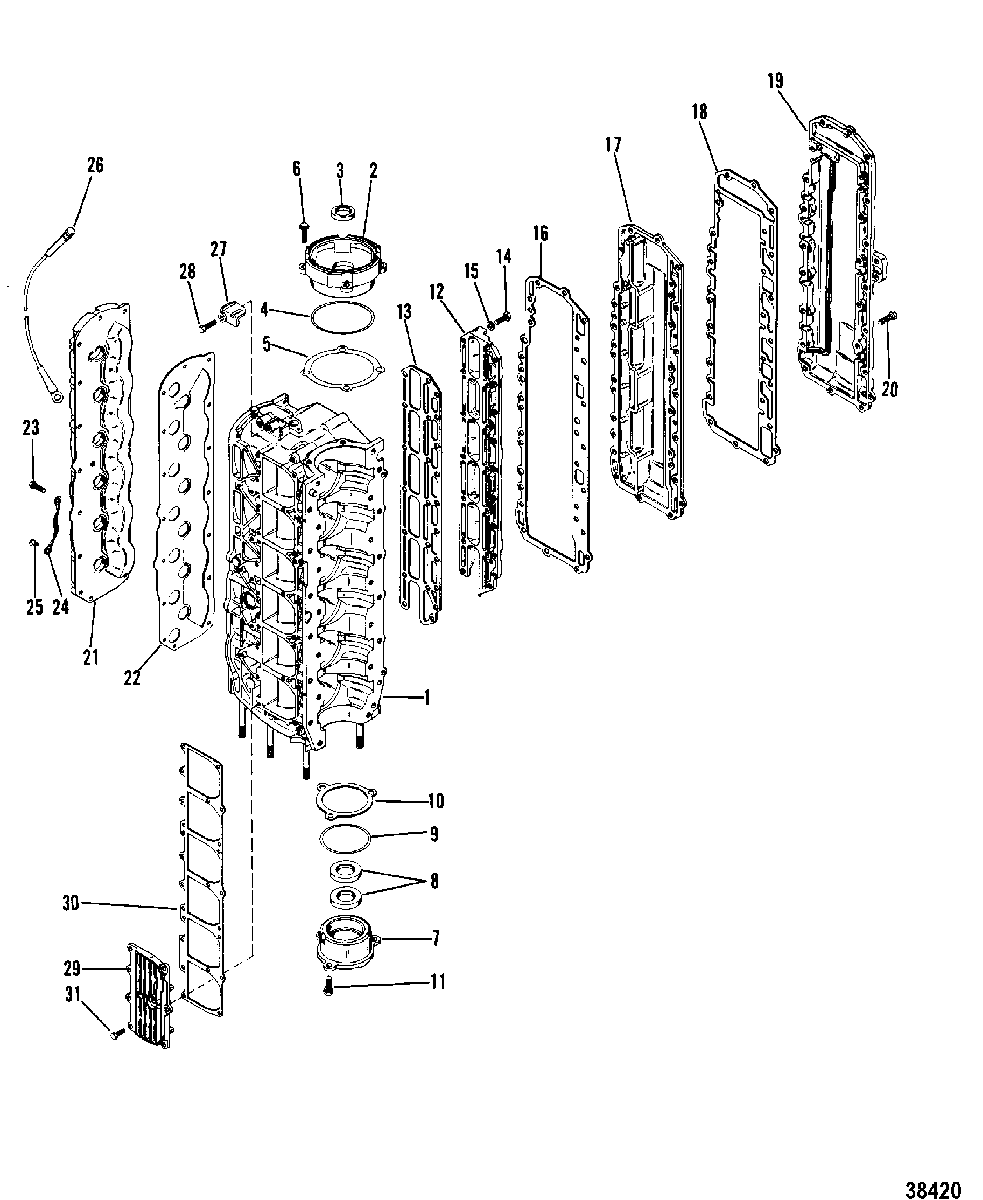

END CAP, MANIFOLD AND EXHAUST COVERS для Mariner - 115 (6 CYL.) 7208848 & Up
-
№АртикулНазвание
-
1852-8311A4 CYLINDER BLOCK ASSEMBLY
(90)CYLINDER BLOCK ASSEMBLY
(90) -
1852-8310A4 CYLINDER BLOCK ASSEMBLY
(115)CYLINDER BLOCK ASSEMBLY
(115) -
21161-7616A2 END CAP ASSEMBLYEND CAP ASSEMBLY
-
326-41953 SEAL, END CAPSEAL, END CAP
-
425-47254 O-RINGO-RING
-
515-73644A1 SHIM, END CAP (.006-10)SHIM, END CAP (.006-10)
-
610-812618 SCREW, END CAP (1")SCREW, END CAP (1")
-
71148-5410T1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
826-41953 SEAL, END CAPSEAL, END CAP
-
925-32546 O-RING, END CAPO-RING, END CAP
-
1015-20085A1 SHIM SET, END CAP (.005-10)SHIM SET, END CAP (.005-10)
-
1110-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00), END CAPSCREW AND LOCKWASHER, (.312-18 x 1.00), END CAP
-
1271808 COVER, WATER JACKETCOVER, WATER JACKET
-
1327-721421 GASKET, WATER JACKET COVERGASKET, WATER JACKET COVER
-
1410-53167T SCREW, (.312-18 x .880), WATER JACKET COVERSCREW, (.312-18 x .880), WATER JACKET COVER
-
1512-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
1627-854952 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
17757781 PLATE, Baffle, EXHAUST MANIFOLDPLATE, Baffle, EXHAUST MANIFOLD
-
1827-854972 GASKETGASKET
-
1999896A1 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
2010-53576 SCREW, (.312-18 x 1.125), MANIFOLD COVERSCREW, (.312-18 x 1.125), MANIFOLD COVER
-
211023-8368A1 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
2227-981853 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
2310-76630 SCREW, COVER (1")SCREW, COVER (1")
-
2446933A3 STRAP ASEMBLY, GroundSTRAP ASEMBLY, Ground
-
2510-62568 SCREW, (#10-16 x .375), GROUND STRAPSCREW, (#10-16 x .375), GROUND STRAP
-
2687-96829A1 SWITCH ASSEMBLY, TemperatureSWITCH ASSEMBLY, Temperature
-
2737440 BRACKET, MOUNT SUPPORTBRACKET, MOUNT SUPPORT
-
2810-35386 SCREW, (.312-18 x 1.00), BRACKET TO CYLINDER BLOCKSCREW, (.312-18 x 1.00), BRACKET TO CYLINDER BLOCK
-
2987872 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
3027-856730 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
3110-28636 SCREW, (.250-20 x .750), TRANSFER PORT COVERSCREW, (.250-20 x .750), TRANSFER PORT COVER
-
-27-85653A87 GASKET SETGASKET SET
