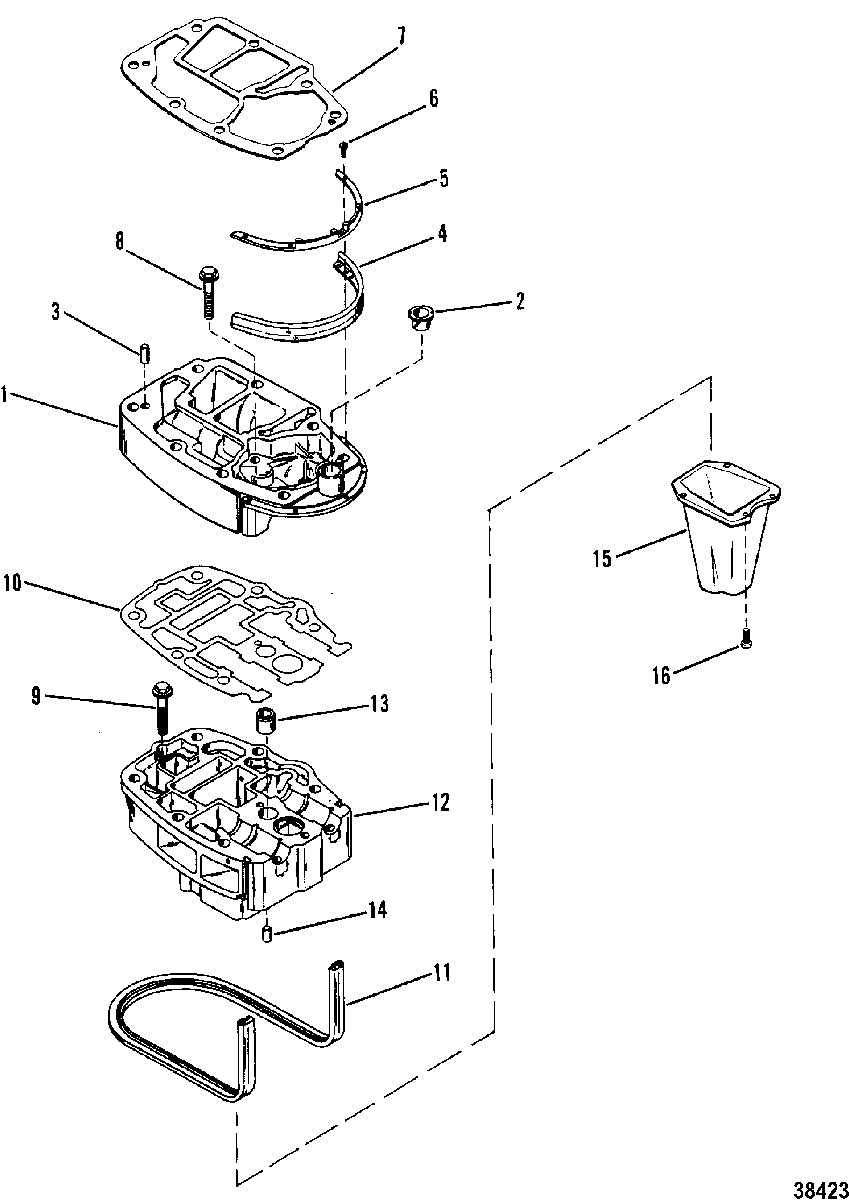

EXHAUST EXTENSION PLATE для Mariner - 115 (6 CYL.) 7208848 & Up
-
№АртикулНазвание
-
143289A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
223-27132 BUSHING, NYLON - EXHAUST EXTENSION PLATEBUSHING, NYLON - EXHAUST EXTENSION PLATE
-
317-23784 PIN, Dowel, EXHAUST EXTENSION PLATEPIN, Dowel, EXHAUST EXTENSION PLATE
-
437918 SEAL, EXHAUST PLATESEAL, EXHAUST PLATE
-
599358 STRIP, RETAINING - EXHAUST EXTENSION PLATESTRIP, RETAINING - EXHAUST EXTENSION PLATE
-
610-37571 SCREW, (.190-32 x .500)SCREW, (.190-32 x .500)
-
727-692381 GASKET, POWERHEADGASKET, POWERHEAD
-
810-66023 SCREW, (.312-18 x 2.00) Flange Head, ADAPTOR PLATE TO HOUSING PLATESCREW, (.312-18 x 2.00) Flange Head, ADAPTOR PLATE TO HOUSING PLATE
-
910-66023 SCREW, (.312-18 x 2.00) Flange HeadSCREW, (.312-18 x 2.00) Flange Head
-
1027-661021 GASKET, DRIVESHAFT HOUSING PLATEGASKET, DRIVESHAFT HOUSING PLATE
-
1126-60898 SEAL, DRIVESHAFT HOUSING PLATESEAL, DRIVESHAFT HOUSING PLATE
-
1243290A4 PLATE ASSEMBLY, DRIVESHAFT HOUSINGPLATE ASSEMBLY, DRIVESHAFT HOUSING
-
1326-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
1417-23784 PIN, Dowel, DRIVESHAFT HOUSING PLATEPIN, Dowel, DRIVESHAFT HOUSING PLATE
-
1599699 MEGAPHONE, Exhaust
(90)MEGAPHONE, Exhaust
(90) -
1599700 TUBE, Exhaust
(115)TUBE, Exhaust
(115) -
1610-65414 SCREW (3/4 INCH)SCREW (3/4 INCH)
-
-27-85653A87 GASKET SETGASKET SET
