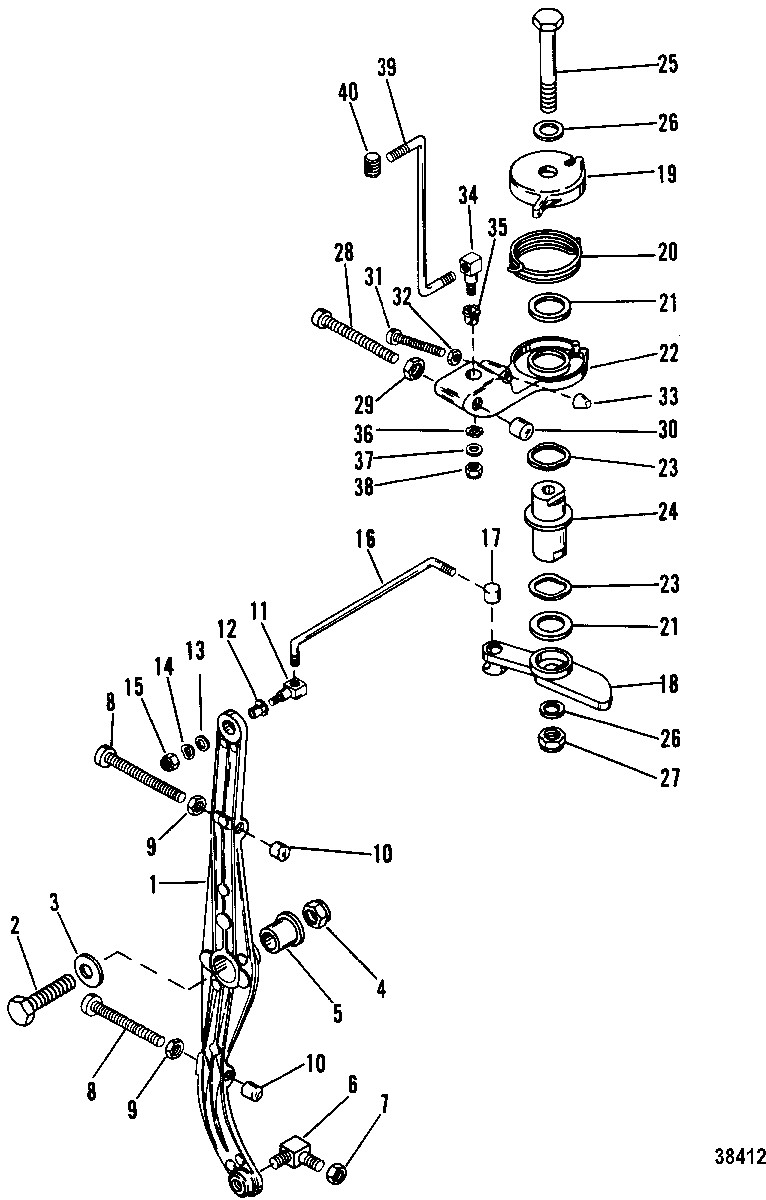

THROTTLE LEVER AND LINK RODS для Mariner - 115 (6 CYL.) 7208848 & Up
-
№АртикулНазвание
-
179900 LEVER, THROTTLELEVER, THROTTLE
-
210-31830 BOLT, (.375-24 x 1.75)
(USE WITH NUT)BOLT, (.375-24 x 1.75)
(USE WITH NUT) -
210-818165 SCREW, (.375-16 x 1.75)
(USE W/O NUT)SCREW, (.375-16 x 1.75)
(USE W/O NUT) -
312-8M0042641 WASHER, (.390 x 1.00 x .06)
(USE WITH NUT)WASHER, (.390 x 1.00 x .06)
(USE WITH NUT) -
312-46765 WASHER
(USE W/O NUT)WASHER
(USE W/O NUT) -
411-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
523-45818 BUSHING, THROTTLE LEVER SCREWBUSHING, THROTTLE LEVER SCREW
-
637587 SWIVEL, THROTTLE LEVER TO THROTTLE CABLESWIVEL, THROTTLE LEVER TO THROTTLE CABLE
-
711-20184 NUT, (1/4-28X7/32), THROTTLE CABLE TO SWIVELNUT, (1/4-28X7/32), THROTTLE CABLE TO SWIVEL
-
810-75168 SCREW, ADJUSTING - THROTTLE LEVERSCREW, ADJUSTING - THROTTLE LEVER
-
911-29598 NUT, (.250-28) Stainless Steel, ADJUSTING SCREWNUT, (.250-28) Stainless Steel, ADJUSTING SCREW
-
1052023 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
1177013A1 SWIVEL, THROTTLE LEVERSWIVEL, THROTTLE LEVER
-
1223-26856 BUSHING, SWIVELBUSHING, SWIVEL
-
1312-73288 WASHER, SWIVELWASHER, SWIVEL
-
1413-29402 WAVE WASHER, SWIVELWAVE WASHER, SWIVEL
-
1511-45774 NUT, SWIVEL TO THROTTLE LEVERNUT, SWIVEL TO THROTTLE LEVER
-
1685300 LINK ROD, THROTTLELINK ROD, THROTTLE
-
1723-74213 BARREL, LINK ROD TO THROTTLE CAMBARREL, LINK ROD TO THROTTLE CAM
-
1885441 CAM, Throttle
(90)CAM, Throttle
(90) -
1888754 CAM, Throttle
(115)CAM, Throttle
(115) -
1985082 HOUSING, THROTTLE - UPPERHOUSING, THROTTLE - UPPER
-
2024-95721 SPRING, TORSION - SHAFTSPRING, TORSION - SHAFT
-
2112-85303 WASHER, PLASTIC - THROTTLE CAMWASHER, PLASTIC - THROTTLE CAM
-
2279903F1 HOUSING, THROTTLE - LOWERHOUSING, THROTTLE - LOWER
-
2313-86498 WAVE WASHER, SHAFTWAVE WASHER, SHAFT
-
2487937 SHAFT, THROTTLE AND SPARK ADVANCESHAFT, THROTTLE AND SPARK ADVANCE
-
2510-28239 SCREW, (.250-20 x 2.50), THROTTLE HOUSINGSCREW, (.250-20 x 2.50), THROTTLE HOUSING
-
2612-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, THROTTLE HOUSING SCREWWASHER, (.2656 x .625 x .0625) Stainless Steel, THROTTLE HOUSING SCREW
-
2711-8267088 NUT, (.250-20), THROTTLE HOUSING SCREWNUT, (.250-20), THROTTLE HOUSING SCREW
-
2810-75168 SCREW, ADJUSTING - LOWER HOUSING (2-1/4")SCREW, ADJUSTING - LOWER HOUSING (2-1/4")
-
2911-29598 NUT, (.250-28) Stainless Steel, ADJUSTING SCREWNUT, (.250-28) Stainless Steel, ADJUSTING SCREW
-
3052023 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
3110-60464 SCREW, ADJUSTING - LOWER HOUSING (2-1/8")SCREW, ADJUSTING - LOWER HOUSING (2-1/8")
-
3211-68219 NUT, (#10-32) Stainless Steel, ADJUSTING SCREWNUT, (#10-32) Stainless Steel, ADJUSTING SCREW
-
3348039 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
3477013A1 SWIVEL, SPARK LINKSWIVEL, SPARK LINK
-
3523-26856 BUSHING, SWIVELBUSHING, SWIVEL
-
3613-29402 WAVE WASHER, SWIVELWAVE WASHER, SWIVEL
-
3712-73288 WASHER, SWIVELWASHER, SWIVEL
-
3811-45774 NUT, SWIVELNUT, SWIVEL
-
3985301 SPARK LINKSPARK LINK
-
4074897T PIVOT, SPARK LINK TO TRIGGERPIVOT, SPARK LINK TO TRIGGER
