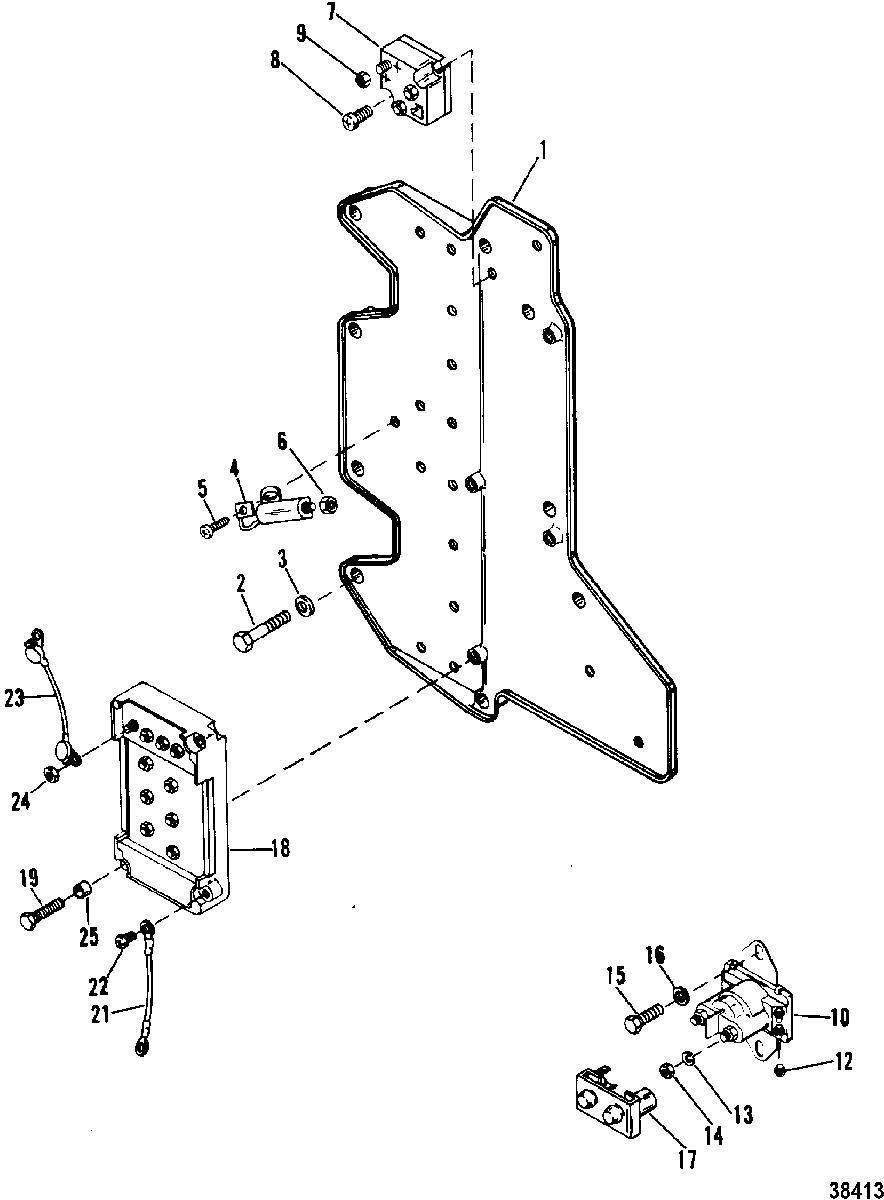

SWITCH BOX AND STARTER SOLENOID для Mariner - 115 (6 CYL.) 7208848 & Up
-
№АртикулНазвание
-
189748T PLATE, ELECTRICAL MOUNTINGPLATE, ELECTRICAL MOUNTING
-
210-86885 SCREW, (.250-20 x 1.500) Stainless Steel, PLATE TO CYLINDER BLOCKSCREW, (.250-20 x 1.500) Stainless Steel, PLATE TO CYLINDER BLOCK
-
210-28636 SCREW, (.250-20 x .750), PLATE TO CYLINDER BLOCKSCREW, (.250-20 x .750), PLATE TO CYLINDER BLOCK
-
210-455611 SCREW, (.250-20 x 1.12), PLATE TO CYLINDER BLOCKSCREW, (.250-20 x 1.12), PLATE TO CYLINDER BLOCK
-
312-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
487-33386A3 SWITCH ASSEMLBY, MERCURYSWITCH ASSEMLBY, MERCURY
-
510-25764 SCREW, (.190-32 x .50), MERCURY SWITCH TO PLATESCREW, (.190-32 x .50), MERCURY SWITCH TO PLATE
-
611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
78M0058226 RECTIFIERRECTIFIER
-
810-25764 SCREW, (.190-32 x .50), RECTIFIER TO IGNITION PLATESCREW, (.190-32 x .50), RECTIFIER TO IGNITION PLATE
-
911-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALSNUT, (#10-32) Brass, RECTIFIER TERMINALS
-
1089-96054T SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
1211-26419 NUT, (#8-32) Brass, SOLENOID TERMINALSNUT, (#8-32) Brass, SOLENOID TERMINALS
-
1313-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINALSLOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINALS
-
1411-94330 NUT, (.250-20) Brass, SOLENOID TERMINALSNUT, (.250-20) Brass, SOLENOID TERMINALS
-
1510-28635 SCREW, (.250-20 x .620) Stainless Steel, STARTER SOLENOID TO PLATESCREW, (.250-20 x .620) Stainless Steel, STARTER SOLENOID TO PLATE
-
1613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1785-97861 INSULATOR, STARTER SOLENOIDINSULATOR, STARTER SOLENOID
-
18332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
1910-20619 SCREW, (#12-24 x 1.25), SWITCH BOXSCREW, (#12-24 x 1.25), SWITCH BOX
-
2184-60871A10 WIRE ASSEMBLY, SWITCH BOXWIRE ASSEMBLY, SWITCH BOX
-
2210-69079 SCREW, (#10-16 x .440), WIRESCREW, (#10-16 x .440), WIRE
-
2384-62310A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
2411-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2523-94304 SPACERSPACER
