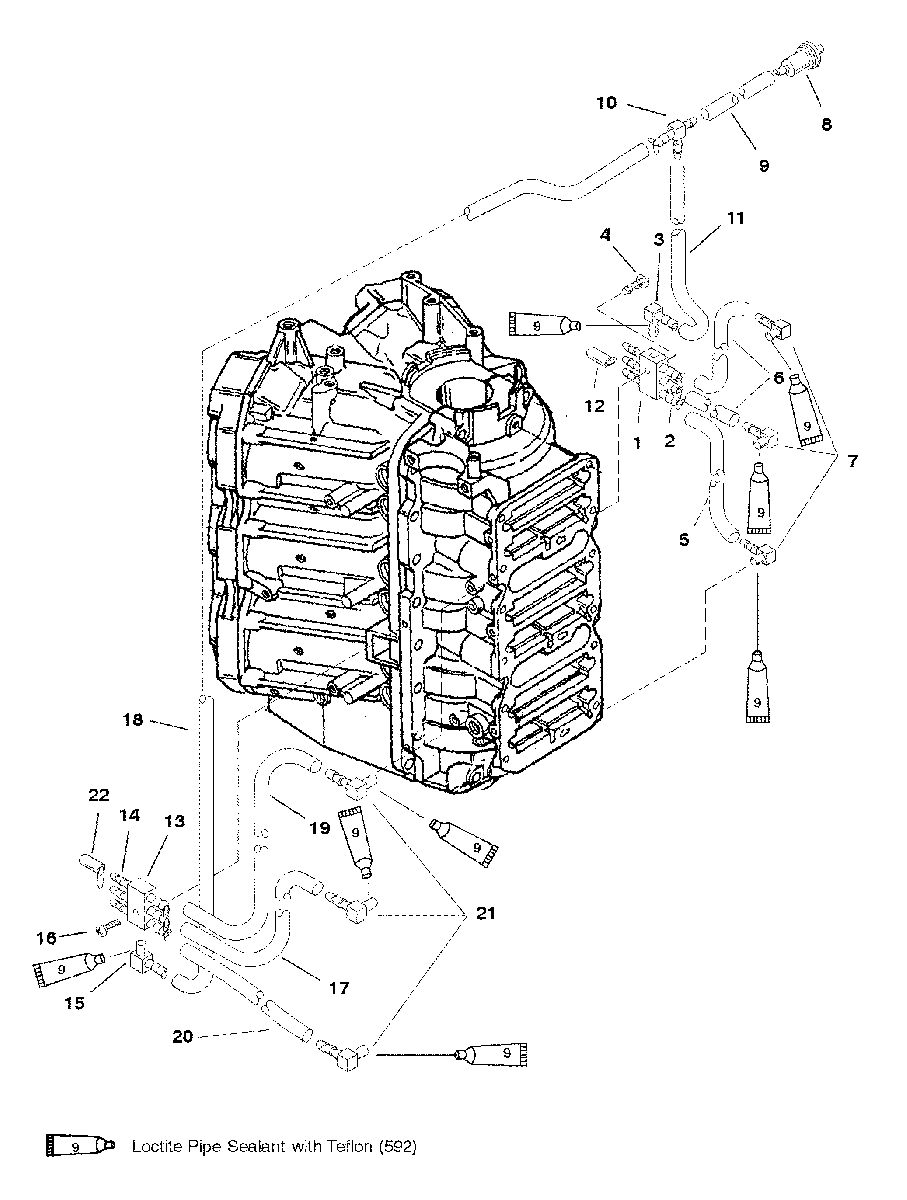

BLEED SYSTEM для Mariner - 200 (DFI) 0G386496 THRU 0G589999
-
№АртикулНазвание
-
1827210A1 MANIFOLD-BLEED SYSTEM
PORTMANIFOLD-BLEED SYSTEM
PORT -
221-426233 CHECK VALVE
PORTCHECK VALVE
PORT -
322-15133 ELBOW
PORTELBOW
PORT -
410-92051 SCREW (10-16 X 3/4 IN.)
PORTSCREW (10-16 X 3/4 IN.)
PORT -
532-892024122 TUBING (9 IN.)
PORTTUBING (9 IN.)
PORT -
632-892024122 TUBING (5-1/4 IN.)
PORTTUBING (5-1/4 IN.)
PORT -
722-768431 FITTING
(SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) PORTFITTING
(SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) PORT -
835-8M0042285 FUEL FILTER
PORTFUEL FILTER
PORT -
932-9912688 TUBING (2-3/4 IN.)
PORTTUBING (2-3/4 IN.)
PORT -
1022-827200 FITTING-TEE
PORTFITTING-TEE
PORT -
1132-892024122 TUBING (9-1/2 IN.)
PORTTUBING (9-1/2 IN.)
PORT -
1222-15026 CAP
PORTCAP
PORT -
13827210A1 MANIFOLD-BLEED SYSTEM
STARBOARDMANIFOLD-BLEED SYSTEM
STARBOARD -
1421-426233 CHECK VALVE
STARBOARDCHECK VALVE
STARBOARD -
1522-15133 ELBOW
STARBOARDELBOW
STARBOARD -
1610-92051 SCREW (10-16 X 3/4 IN.)
STARBOARDSCREW (10-16 X 3/4 IN.)
STARBOARD -
1732-892024122 TUBING (5-1/4 IN.)
STARBOARDTUBING (5-1/4 IN.)
STARBOARD -
1832-892024122 TUBING (20-1/2 IN.)
STARBOARDTUBING (20-1/2 IN.)
STARBOARD -
1932-892024122 TUBING (7 IN.)
STARBOARDTUBING (7 IN.)
STARBOARD -
2032-892024122 TUBING (8-1/2 IN.)
STARBOARDTUBING (8-1/2 IN.)
STARBOARD -
2122-768431 FITTING
(SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) STARBOARDFITTING
(SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) STARBOARD -
2222-15026 CAP
STARBOARDCAP
STARBOARD
