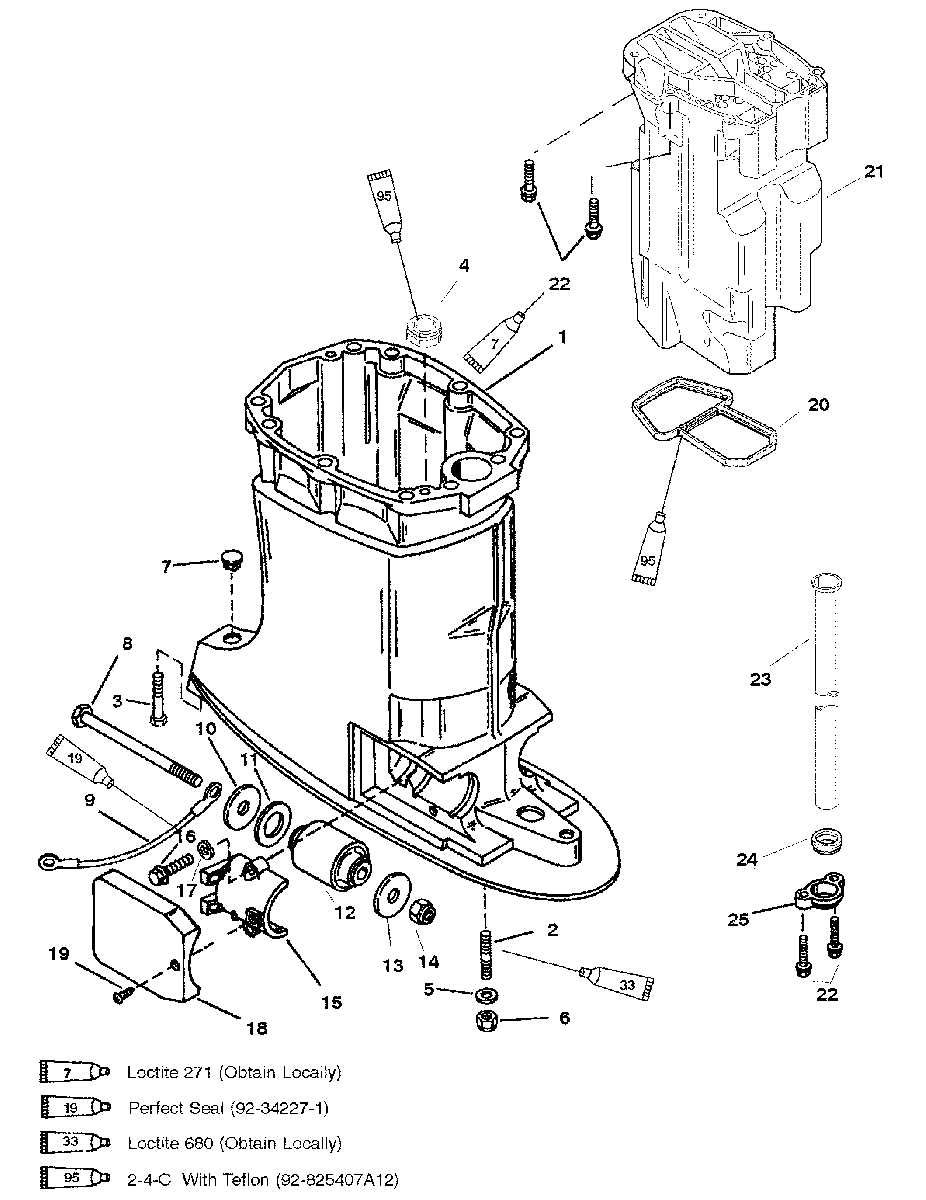

DRIVE SHAFT HOUSING AND EXHAUST TUBE (S/N-0G509800 & UP) для Mariner - 200 (DFI) 0G386496 THRU 0G589999
-
№АртикулНазвание
-
13518-832937A06 DRIVE SHAFT HOUSING )
(BLACK-LONGDRIVE SHAFT HOUSING )
(BLACK-LONG -
13518-832937A06 DRIVE SHAFT HOUSING
(GRAY-LONG)DRIVE SHAFT HOUSING
(GRAY-LONG) -
13519-832938A06 DRIVE SHAFT HOUSING
(BLACK-X-LONG)DRIVE SHAFT HOUSING
(BLACK-X-LONG) -
13519-832938A3 DRIVE SHAFT HOUSING
(WHITE-X-LONG)DRIVE SHAFT HOUSING
(WHITE-X-LONG) -
216-8M0070951 STUD (M12 X 1.75 X 50)STUD (M12 X 1.75 X 50)
-
310-82130130 SCREW (M10 X 1.5 X 30)SCREW (M10 X 1.5 X 30)
-
425-8331231 GROMMETGROMMET
-
512-4002321 WASHERWASHER
-
611-4013812 NUT (M12 X 1.75)NUT (M12 X 1.75)
-
719-64649 PLUGPLUG
-
810-898834 SCREW (M14 X 2 X 178)SCREW (M14 X 2 X 178)
-
988238A10 GROUND WIREGROUND WIRE
-
1012-815432 WASHERWASHER
-
1112-8154331 WASHERWASHER
-
128137711 MOUNTMOUNT
-
1312-825190 WASHERWASHER
-
1411-896602 NUTNUT
-
15879150A90 CLAMPCLAMP
-
1610-81893435 SCREW (M8 X 35)SCREW (M8 X 35)
-
1713-72521 LOCKWASHERLOCKWASHER
-
18879150A90 COVER
(BLACK)COVER
(BLACK) -
18818645F2 COVER
(GRAY)COVER
(GRAY) -
18818645F4 COVER
(WHITE)COVER
(WHITE) -
1910-69079 SCREW (5/8 IN.)SCREW (5/8 IN.)
-
208329321 SEALSEAL
-
21833116A7 EXHAUST TUBEEXHAUST TUBE
-
2210-81893435 SCREW (M8 X 35)SCREW (M8 X 35)
-
2332-8M0042785 WATER TUBE
(LONG)WATER TUBE
(LONG) -
2332-8M0042786 WATER TUBE
(X-LONG)WATER TUBE
(X-LONG) -
24832940001 SEALSEAL
-
258329391 CLAMPCLAMP
