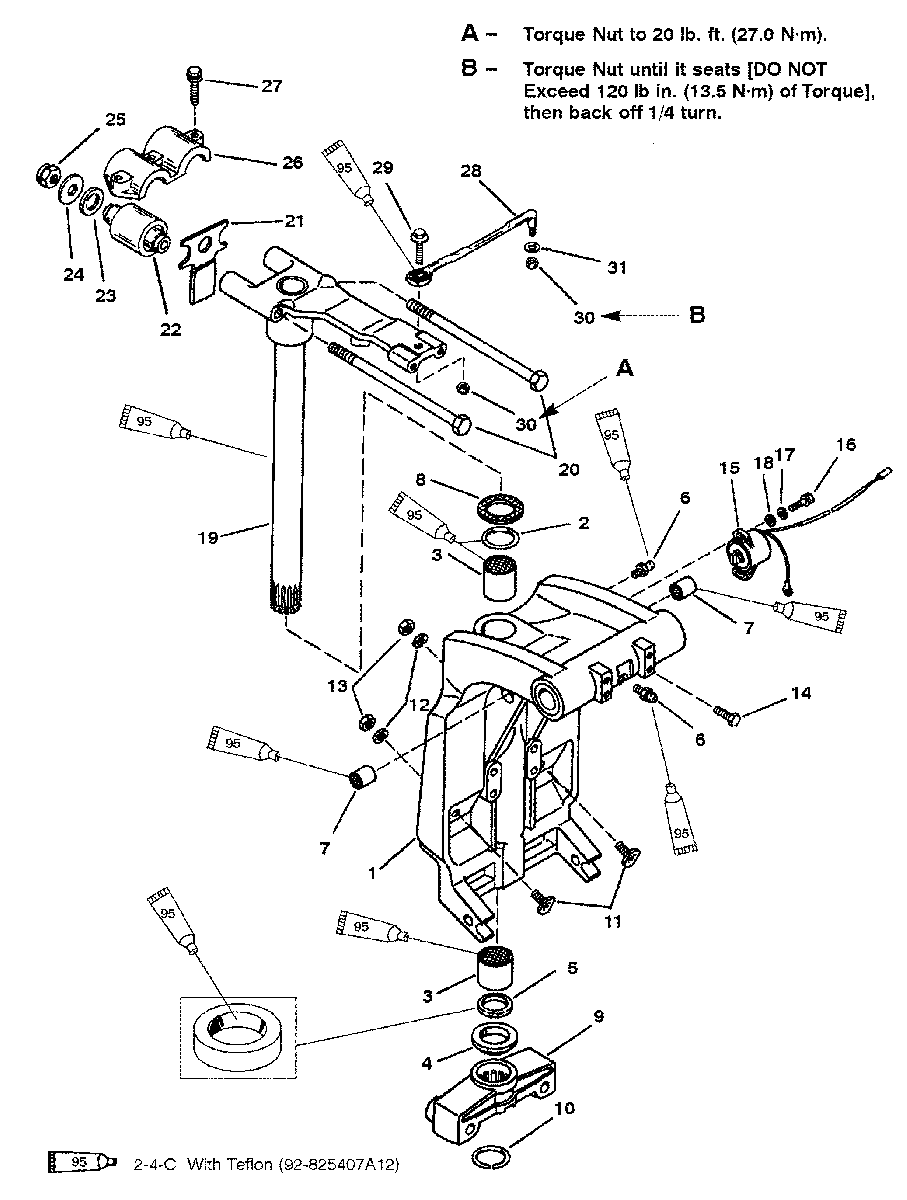

SWIVEL BRACKET AND STEERING ARM для Mariner - 200 (DFI) 0G386496 THRU 0G589999
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET
(BLACK)SWIVEL BRACKET
(BLACK) -
11499-8M0102865 SWIVEL BRACKET
(GRAY)SWIVEL BRACKET
(GRAY) -
11499-8710A23 SWIVEL BRACKET
(WHITE)SWIVEL BRACKET
(WHITE) -
225-33504 O RINGO RING
-
323-818764 BUSHINGBUSHING
-
423-816039 SPACERSPACER
-
526-87735 OIL SEAL (LOWER)OIL SEAL (LOWER)
-
622-74036 GREASE FITTINGGREASE FITTING
-
723-821207 BUSHINGBUSHING
-
812-816432 THRUST WASHERTHRUST WASHER
-
9814084F1 BOTTOM YOKE
(BLACK)(LONG - CARBON STEEL)BOTTOM YOKE
(BLACK)(LONG - CARBON STEEL) -
9814084F2 BOTTOM YOKE
(GRAY)(LONG - CARBON STEEL)BOTTOM YOKE
(GRAY)(LONG - CARBON STEEL) -
9826364T BOTTOM YOKE
(BLACK-XL-STAINLESS STEEL)BOTTOM YOKE
(BLACK-XL-STAINLESS STEEL) -
9826364F2 BOTTOM YOKE
(GRAY-XL-STAINLESS STEEL)BOTTOM YOKE
(GRAY-XL-STAINLESS STEEL) -
9826364F3 BOTTOM YOKE
(WHITE-XL-STAINLESS STEEL)BOTTOM YOKE
(WHITE-XL-STAINLESS STEEL) -
1053-67684 RETAINING RINGRETAINING RING
-
118M0045383 STRIKER PLATESTRIKER PLATE
-
1213-58643 LOCKWASHERLOCKWASHER
-
1311-46335 NUTNUT
-
1410-64014 SCREW (1/4-28)SCREW (1/4-28)
-
158M0098273 TRIM SENDERTRIM SENDER
-
1610-852368 SCREW (10-24 X 3/4 IN.)SCREW (10-24 X 3/4 IN.)
-
1713-26996 LOCKWASHERLOCKWASHER
-
1812-89302 WASHERWASHER
-
1917-8M0132731 SWIVEL PIN/STEERING ARM
(BLACK)(LONG - CARBON STEEL)SWIVEL PIN/STEERING ARM
(BLACK)(LONG - CARBON STEEL) -
1917-8M0132731 SWIVEL PIN/STEERING ARM
(GRAY)(LONG - CARBON STEEL)SWIVEL PIN/STEERING ARM
(GRAY)(LONG - CARBON STEEL) -
1917-8M0132731 SWIVEL PIN/STEERING ARM
(BLACK-XL-STAINLESS STEEL)SWIVEL PIN/STEERING ARM
(BLACK-XL-STAINLESS STEEL) -
1917-8M0132731 SWIVEL PIN/STEERING ARM
(GRAY-XL-STAINLESS STEEL)SWIVEL PIN/STEERING ARM
(GRAY-XL-STAINLESS STEEL) -
1917-8M0132731 SWIVEL PIN/STEERING ARM
(WHITE-XL-STAINLESS STEEL)SWIVEL PIN/STEERING ARM
(WHITE-XL-STAINLESS STEEL) -
2010-8M0141069 SCREW (M12 X 1.75 X 190)SCREW (M12 X 1.75 X 190)
-
21824998001 BUMPERBUMPER
-
228163851 UPPER MOUNTUPPER MOUNT
-
2312-8154371 WASHERWASHER
-
2412-815436 WASHERWASHER
-
2511-896963 NUTNUT
-
268M0036783 CLAMPCLAMP
-
2710-81893435 SCREW (M8 X 35)SCREW (M8 X 35)
-
2892876A12 STEERING LINK ASSEMBLYSTEERING LINK ASSEMBLY
-
2910-849838 SCREWSCREW
-
3011-8M0042636 NUT (.375-24)NUT (.375-24)
-
3112-37828 WASHERWASHER
