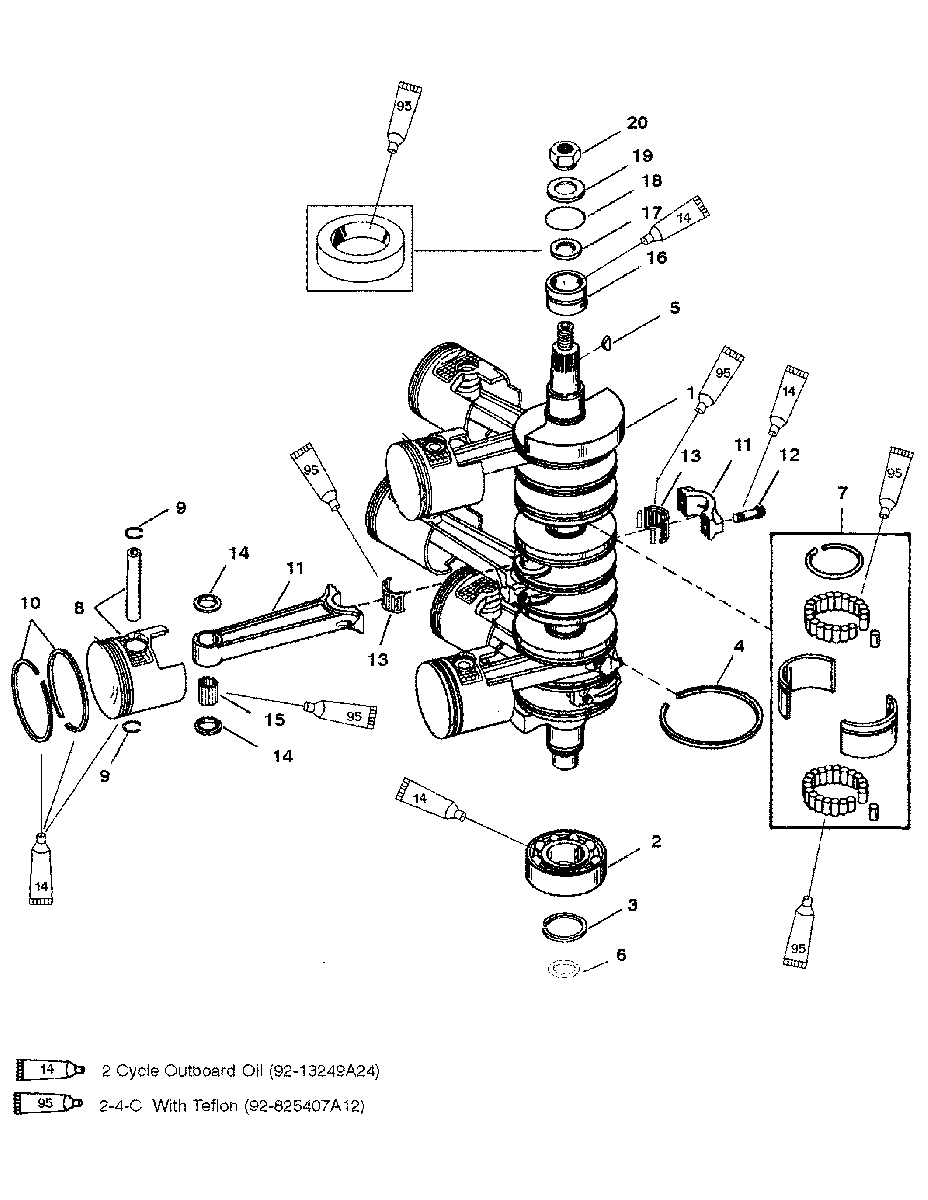

CRANKSHAFT - PISTONS - AND CONNECTING RODS для Mariner - 200 (DFI) 0G386496 THRU 0G589999
-
№АртикулНазвание
-
1482-9784A11 CRANKSHAFTCRANKSHAFT
-
230-67923T BALL BEARING (LOWER)BALL BEARING (LOWER)
-
353-67446 RETAINING RINGRETAINING RING
-
439-843198T01 SEAL RINGSEAL RING
-
528-91800 WOODRUFF KEYWOODRUFF KEY
-
625-35126 O RINGO RING
-
78M0113288 BEARING RACEBEARING RACE
-
82720-827902T4 PISTON
(STARBOARD)PISTON
(STARBOARD) -
82720-827901T4 PISTON
(PORT)PISTON
(PORT) -
953-8320811 LOCK RINGLOCK RING
-
1039-834805A12 PISTON RINGPISTON RING
-
11600-8M0125869 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1210-94320 SCREW (1-1/4 IN.)SCREW (1-1/4 IN.)
-
1331-844338A01 BEARING CAGEBEARING CAGE
-
1412-88263 THRUST WASHERTHRUST WASHER
-
1529-88258001 ROLLER BEARINGROLLER BEARING
-
1631-816773A2 MAIN BEARING (UPPER)MAIN BEARING (UPPER)
-
1726-859093 OIL SEALOIL SEAL
-
1825-823683 O RINGO RING
-
1912-33001 WASHERWASHER
-
2011-42979 NUT (M16 X 1.5)NUT (M16 X 1.5)
-
-27-814195A97 GASKET SETGASKET SET
-
-809973A97 POWERHEADPOWERHEAD
