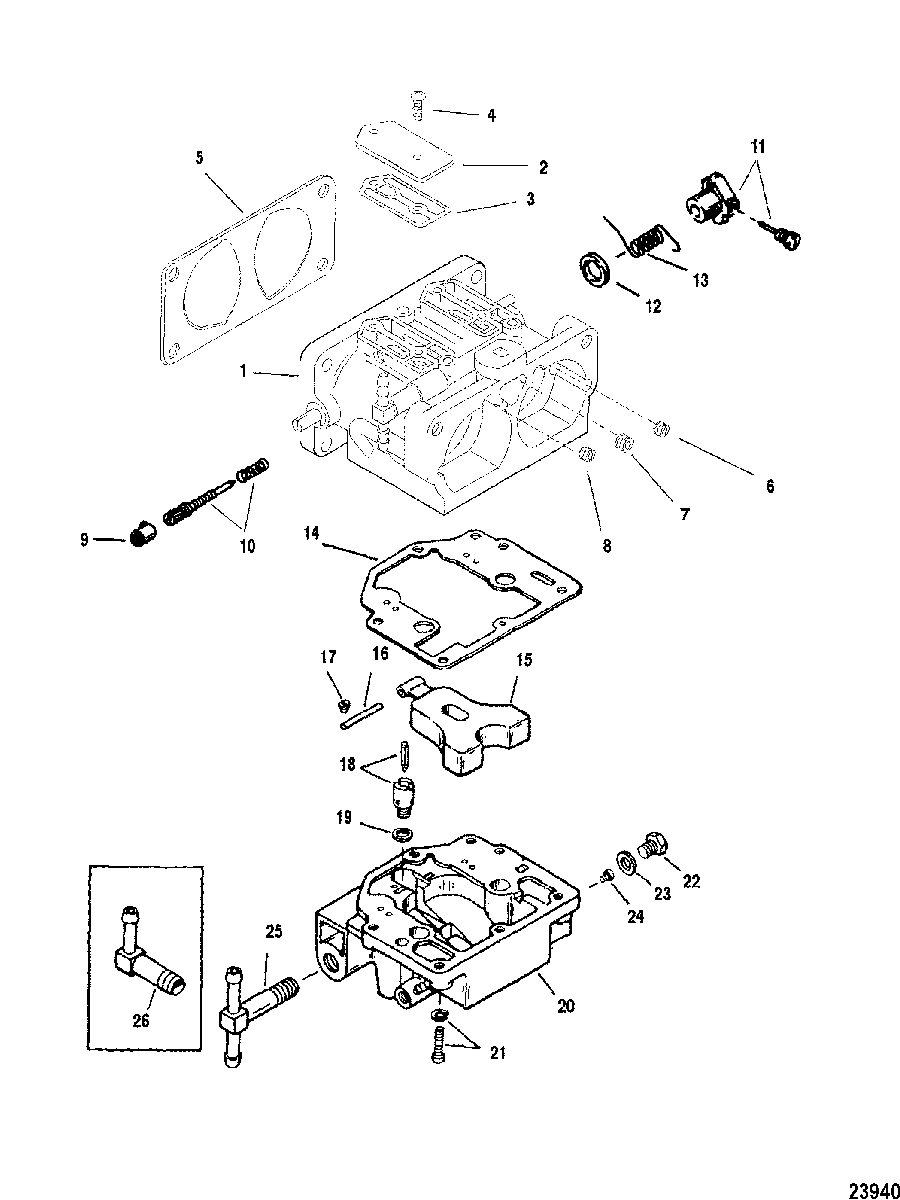

CARBURETOR(S/N-0G303046 & UP) для Mariner - 225 (3.0L CARB) 0D280813 THRU 0G760299
-
№АртикулНазвание
-
13326-828272A16 CARBURETOR, Top
SEAPRO/MARATHON WMV-6CARBURETOR, Top
SEAPRO/MARATHON WMV-6 -
13326-828272A17 CARBURETOR, Center
SEAPRO/MARATHON WMV-6CARBURETOR, Center
SEAPRO/MARATHON WMV-6 -
13326-828272A18 CARBURETOR, Bottom
SEAPRO/MARATHON WMV-6CARBURETOR, Bottom
SEAPRO/MARATHON WMV-6 -
13327-828273A1 CARBURETOR, Top
WMV-7CARBURETOR, Top
WMV-7 -
13327-828273A2 CARBURETOR, Center
WMV-7CARBURETOR, Center
WMV-7 -
13327-828273A3 CARBURETOR, Bottom
WMV-7CARBURETOR, Bottom
WMV-7 -
13326-828272T52 CARBURETOR, Top
SEAPRO/MARATHON WMV-11CARBURETOR, Top
SEAPRO/MARATHON WMV-11 -
13326-828272T53 CARBURETOR, Center
SEAPRO/MARATHON WMV-11CARBURETOR, Center
SEAPRO/MARATHON WMV-11 -
13326-828272T54 CARBURETOR, Bottom
SEAPRO/MARATHON WMV-11CARBURETOR, Bottom
SEAPRO/MARATHON WMV-11 -
13326-828272T55 CARBURETOR, Top
WMV-13CARBURETOR, Top
WMV-13 -
13326-828272T56 CARBURETOR, Center
WMV-13CARBURETOR, Center
WMV-13 -
13326-828272T57 CARBURETOR, Bottom
WMV-13CARBURETOR, Bottom
WMV-13 -
13326-828272T52 CARBURETOR, Top
SEAPRO/MARATHON WMV-11ACARBURETOR, Top
SEAPRO/MARATHON WMV-11A -
13326-828272T53 CARBURETOR, Center
SEAPRO/MARATHON WMV-11ACARBURETOR, Center
SEAPRO/MARATHON WMV-11A -
13326-828272T54 CARBURETOR, Bottom
SEAPRO/MARATHON WMV-11ACARBURETOR, Bottom
SEAPRO/MARATHON WMV-11A -
13326-828272T55 CARBURETOR, Top
WMV-13ACARBURETOR, Top
WMV-13A -
13326-828272T56 CARBURETOR, Center
WMV-13ACARBURETOR, Center
WMV-13A -
13326-828272T57 CARBURETOR, Bottom
WMV-13ACARBURETOR, Bottom
WMV-13A -
21395-809743 COVERCOVER
-
31395-809758 GASKETGASKET
-
41395-8087391 SCREWSCREW
-
527-828292 GASKETGASKET
-
6815633042 JET, Idle Air Vent (.042-TOP)
RIGHT BORE WMV-6JET, Idle Air Vent (.042-TOP)
RIGHT BORE WMV-6 -
6815633056 JET, Idle Air Vent (.056-CENTER/BOTTOM)
RIGHT BORE WMV-6JET, Idle Air Vent (.056-CENTER/BOTTOM)
RIGHT BORE WMV-6 -
6815633038 JET, (.038) (TOP)
RIGHT BORE WMV-7JET, (.038) (TOP)
RIGHT BORE WMV-7 -
6815633070 JET (.070-CENTER/BOTTOM)
RIGHT BORE WMV-7JET (.070-CENTER/BOTTOM)
RIGHT BORE WMV-7 -
61399-7570 JET, .040 (TOP)
RIGHT BORE-WMV11JET, .040 (TOP)
RIGHT BORE-WMV11 -
6815633058 JET, Idle Air Vent (.058-CENTER)
RIGHT BORE-WMV11JET, Idle Air Vent (.058-CENTER)
RIGHT BORE-WMV11 -
6815633054 JET, (.054) (BOTTOM)
RIGHT BORE-WMV11JET, (.054) (BOTTOM)
RIGHT BORE-WMV11 -
6815633046 JET, (.046) (TOP)
RIGHT BORE-WMV-13JET, (.046) (TOP)
RIGHT BORE-WMV-13 -
6815633054 JET, (.054) (CENTER)
RIGHT BORE-WMV-13JET, (.054) (CENTER)
RIGHT BORE-WMV-13 -
6815633058 JET, Idle Air Vent (.058-BOTTOM)
RIGHT BORE-WMV-13JET, Idle Air Vent (.058-BOTTOM)
RIGHT BORE-WMV-13 -
71395-6201 JET, (.080)
(WMV-6/7/11/11A)JET, (.080)
(WMV-6/7/11/11A) -
71399-3518 JET, (.082) (TOP/BOTTOM)
(WMV-13)JET, (.082) (TOP/BOTTOM)
(WMV-13) -
71395-5815 JET, (.086) (CENTER)
(WMV-13)JET, (.086) (CENTER)
(WMV-13) -
8815633042 JET, Idle Air Vent (.042-TOP)
LEFT BORE WMV-6JET, Idle Air Vent (.042-TOP)
LEFT BORE WMV-6 -
8815633018 JET, Idle Air Vent (.018-CENTER/BOTTOM)
LEFT BORE WMV-6JET, Idle Air Vent (.018-CENTER/BOTTOM)
LEFT BORE WMV-6 -
8815633038 JET, (.038) (TOP)
WMV-7 LEFT BOREJET, (.038) (TOP)
WMV-7 LEFT BORE -
8815633020 JET, Idle Air Vent (.020 - CENTER)
WMV-7 LEFT BOREJET, Idle Air Vent (.020 - CENTER)
WMV-7 LEFT BORE -
81399-3252 JET, (.032) (BOTTOM)
WMV-7 LEFT BOREJET, (.032) (BOTTOM)
WMV-7 LEFT BORE -
8815633046 JET, (.046) (TOP)
LEFT BORE-WMV11JET, (.046) (TOP)
LEFT BORE-WMV11 -
8815633048 JET, (.048) (CENTER/BOTTOM)
LEFT BORE-WMV11JET, (.048) (CENTER/BOTTOM)
LEFT BORE-WMV11 -
8815633060 JET, (.060) (TOP)
LEFT BORE-WMV13JET, (.060) (TOP)
LEFT BORE-WMV13 -
8815633052 JET, (.052) (CENTER/BOTTOM)
LEFT BORE-WMV13JET, (.052) (CENTER/BOTTOM)
LEFT BORE-WMV13 -
9810779 CAPCAP
-
10NSS NOT SOLD SEPARATE, Idle Mixture Screw/SpringNOT SOLD SEPARATE, Idle Mixture Screw/Spring
-
111395-8113523 LEVER KITLEVER KIT
-
121395-6031 SPACERSPACER
-
13NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
14NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
15810738 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
16F10064 SHAFTSHAFT
-
171395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
181395-8116901 VALVE SEAT KITVALVE SEAT KIT
-
181395-8116901 VALVE SEAT KIT
(WMV-11/13A)VALVE SEAT KIT
(WMV-11/13A) -
19NSS NOT SOLD SEPARATE, Gasket-Valve SeatNOT SOLD SEPARATE, Gasket-Valve Seat
-
201395-8236232 BOWL, Fuel (TOP)BOWL, Fuel (TOP)
-
201395-8236241 BOWL, Fuel (CENTER/BOTTOM)BOWL, Fuel (CENTER/BOTTOM)
-
211395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
221395-811694 PLUG KITPLUG KIT
-
231395-802731 SEAL (CONSISTS OF 4 GASKETS)SEAL (CONSISTS OF 4 GASKETS)
-
241395-6680 JET, (.078)
SEAPRO/MARATHON WMV-6JET, (.078)
SEAPRO/MARATHON WMV-6 -
241395-6201 JET, (.080)
SEAPRO/MARATHON WMV-6JET, (.080)
SEAPRO/MARATHON WMV-6 -
241395-6202 JET MAIN (.088)
WMV-7JET MAIN (.088)
WMV-7 -
241395-5815 JET, (.086)
WMV-7JET, (.086)
WMV-7 -
241399-3518 JET, (.082)
(PORT-TOP/BOTTOM) WMV-11JET, (.082)
(PORT-TOP/BOTTOM) WMV-11 -
241395-5815 JET, (.086)
(PORT-CENTER) WMV-11JET, (.086)
(PORT-CENTER) WMV-11 -
241399-3518 JET, (.082)
(STBD.) WMV-11JET, (.082)
(STBD.) WMV-11 -
241399-3518 JET, (.082)
(PORT-TOP/BOTTOM) WMV-13JET, (.082)
(PORT-TOP/BOTTOM) WMV-13 -
241395-5815 JET, (.086)
(PORT-CENTER) WMV-13JET, (.086)
(PORT-CENTER) WMV-13 -
241399-3517 JET, (.084)
(STBD.) WMV-13JET, (.084)
(STBD.) WMV-13 -
251395-7900 TEE FITTING (TOP/CENTER)TEE FITTING (TOP/CENTER)
-
261395-7901 ELBOW (BOTTOM)ELBOW (BOTTOM)
-
-8107493 GASKET SET, CarburetorGASKET SET, Carburetor
-
-1395-8116913 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-27-814195A93 GASKET SETGASKET SET
