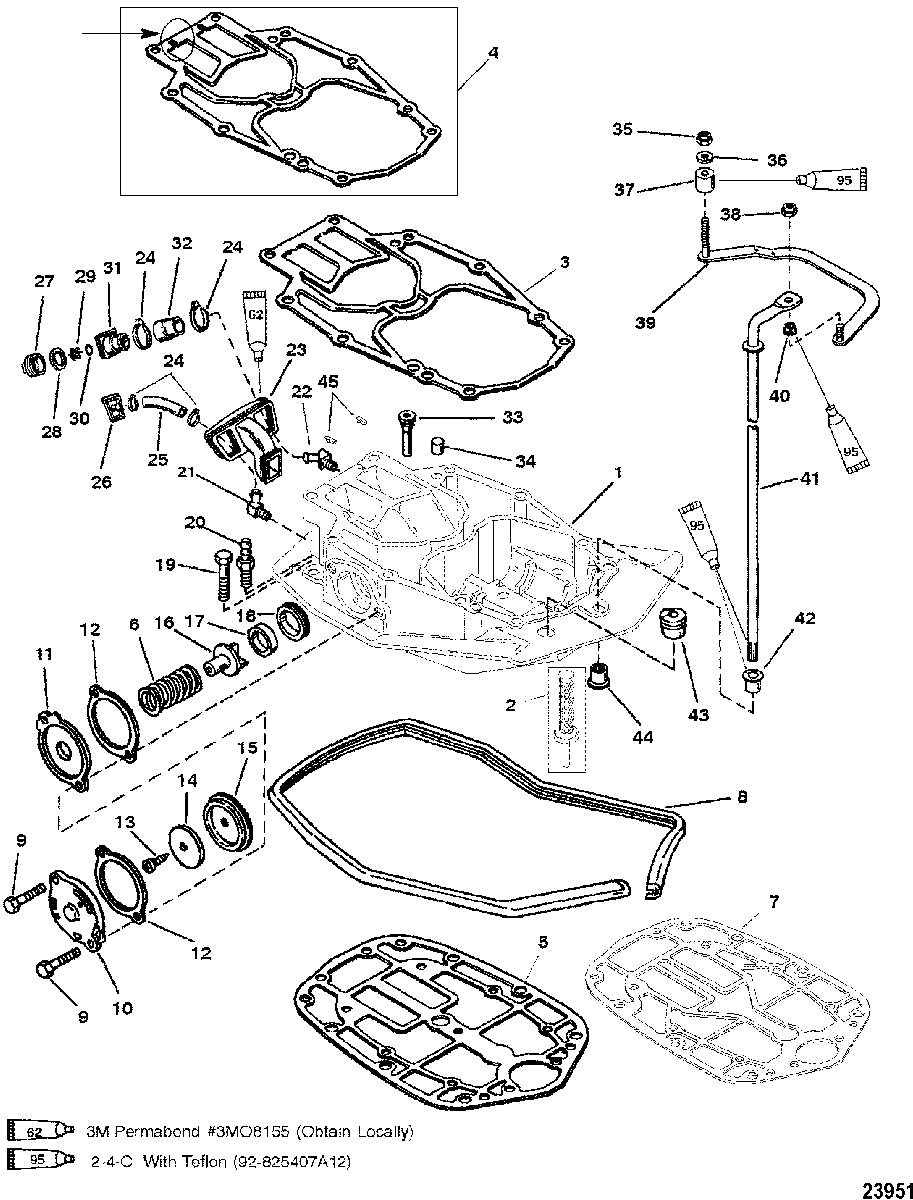

EXHAUST PLATE для Mariner - 225 (3.0L CARB) 0D280813 THRU 0G760299
-
№АртикулНазвание
-
1818450A2 PLATE ASSEMBLY, Exhaust
(W/O REF #2) SN# 0G437999 & BelowPLATE ASSEMBLY, Exhaust
(W/O REF #2) SN# 0G437999 & Below -
1818450A2 PLATE ASSEMBLY, Exhaust
(WITH REF #2) SN# 0G437999 & BelowPLATE ASSEMBLY, Exhaust
(WITH REF #2) SN# 0G437999 & Below -
2832994 STRAINER
SN# 0G437999 & BelowSTRAINER
SN# 0G437999 & Below -
327-8139322 GASKET
SN# 0G437999 & BelowGASKET
SN# 0G437999 & Below -
4NLA No Longer Available, Gasket
(REFER TO SERVICE BULLETIN #94-11) SN# 0G437999 & BelowNo Longer Available, Gasket
(REFER TO SERVICE BULLETIN #94-11) SN# 0G437999 & Below -
527-823988 GASKET (LOWER)
SN# 0G437999 & BelowGASKET (LOWER)
SN# 0G437999 & Below -
624-64878 SPRING
SN# 0G437999 & BelowSPRING
SN# 0G437999 & Below -
624-854478 SPRING
SN# 0G438000 THRU 0G693841SPRING
SN# 0G438000 THRU 0G693841 -
624-64878 SPRING
SN# 0G693842 & UpSPRING
SN# 0G693842 & Up -
1832935A1 PLATE ASSEMBLY, Exhaust
SN# 0G438000 & UpPLATE ASSEMBLY, Exhaust
SN# 0G438000 & Up -
327-832933006 GASKET
SN# 0G438000 & UpGASKET
SN# 0G438000 & Up -
727-832934006 GASKET (LOWER)
SN# 0G438000 & UpGASKET (LOWER)
SN# 0G438000 & Up -
88M0043157 SEALSEAL
-
910-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1065663A2 COVERCOVER
-
1165664A1 PLATE ASSEMBLYPLATE ASSEMBLY
-
1227-88907003 GASKETGASKET
-
1310-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
1412-76451 WASHERWASHER
-
15648771 DIAPHRAGMDIAPHRAGM
-
16814189 POPPETPOPPET
-
1725-814191 GROMMETGROMMET
-
18814190 CARRIERCARRIER
-
1910-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2022-34982 CONNECTORCONNECTOR
-
2122-782792 ELBOW (45 DEGREES)ELBOW (45 DEGREES)
-
2222-821975 ELBOW, 45 Degree (45 DEGREES)ELBOW, 45 Degree (45 DEGREES)
-
23821255 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
2454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2532-8M0108355 HOSE, (57.00 Inches Bulk) (2-1/2 IN.)HOSE, (57.00 Inches Bulk) (2-1/2 IN.)
-
2622-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
2719-821908 PLUGPLUG
-
2812-821915 WASHERWASHER
-
298219631 CHECK VALVECHECK VALVE
-
3025-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
3122-821952 FITTINGFITTING
-
3232-821976 HOSEHOSE
-
3321-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
3417-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
3511-401386 NUT, (M6)NUT, (M6)
-
3612-35459 WASHERWASHER
-
37824012 ROLLERROLLER
-
3811-401386 NUT, (M6)NUT, (M6)
-
39883142A03 SHIFT LINKSHIFT LINK
-
4023-42994 BUSHINGBUSHING
-
418M0036408 SHIFT SHAFT, Upper
(LONG)SHIFT SHAFT, Upper
(LONG) -
418M0046246 SHIFT SHAFT, Upper
(X-LONG)SHIFT SHAFT, Upper
(X-LONG) -
418240703 SHIFT SHAFT, Upper
(XX-LONG)SHIFT SHAFT, Upper
(XX-LONG) -
4223-48237 BUSHINGBUSHING
-
4325-19565002 GROMMETGROMMET
-
4443585 COUPLINGCOUPLING
-
4519-828808 PLUG
SN# 0G178947 & BelowPLUG
SN# 0G178947 & Below -
-27-814195A93 GASKET SETGASKET SET
-
-823291A94 POWERHEAD ASSEMBLY
(8 TOOTH SPLINES) SN# 0G129221 & BelowPOWERHEAD ASSEMBLY
(8 TOOTH SPLINES) SN# 0G129221 & Below -
-809794R97 POWERHEAD ASSEMBLY
(13 TOOTH SPLINES) SN# 0G129222 & UpPOWERHEAD ASSEMBLY
(13 TOOTH SPLINES) SN# 0G129222 & Up -
-809793A00 POWERHEAD ASSEMBLY
(SEAPRO/MARATHON)POWERHEAD ASSEMBLY
(SEAPRO/MARATHON)
