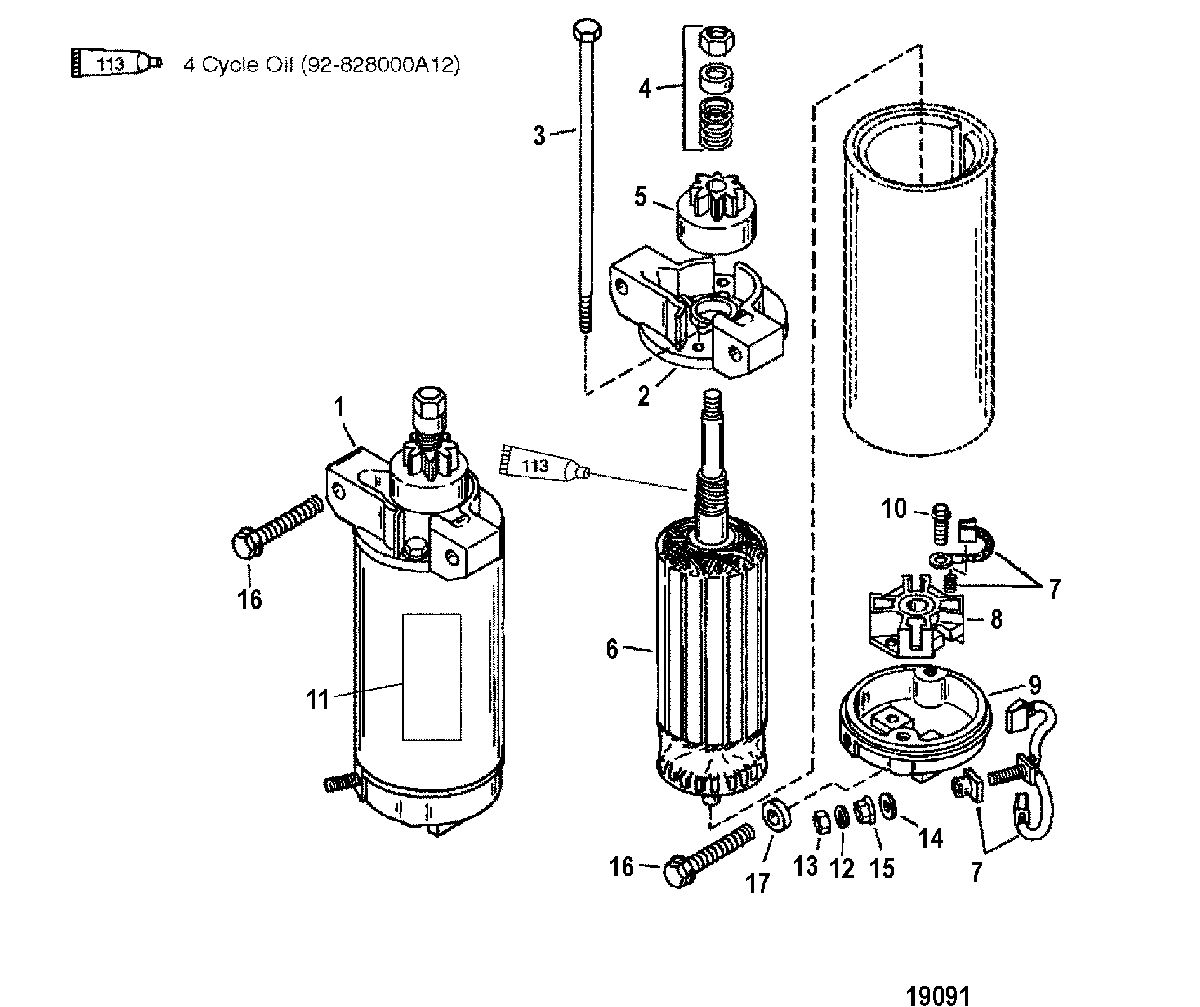

STARTER MOTOR для Mariner - 225 (3.0L CARB) 0D280813 THRU 0G760299
-
№АртикулНазвание
-
150-898265009 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
28236392 DRIVE CAPDRIVE CAP
-
310-823641 THRU BOLTTHRU BOLT
-
4823640T DRIVE KITDRIVE KIT
-
513310T1 DRIVEDRIVE
-
6823638 ARMATUREARMATURE
-
7898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
8898265014 HOLDERHOLDER
-
98119011 CAP, CommutatorCAP, Commutator
-
10F15158 SCREWSCREW
-
1137-8272822 DECAL, WarningDECAL, Warning
-
1213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1311-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1413-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1511-20890 NUT, (.250-20)NUT, (.250-20)
-
1610-81893450 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1723-824921 SPACERSPACER
