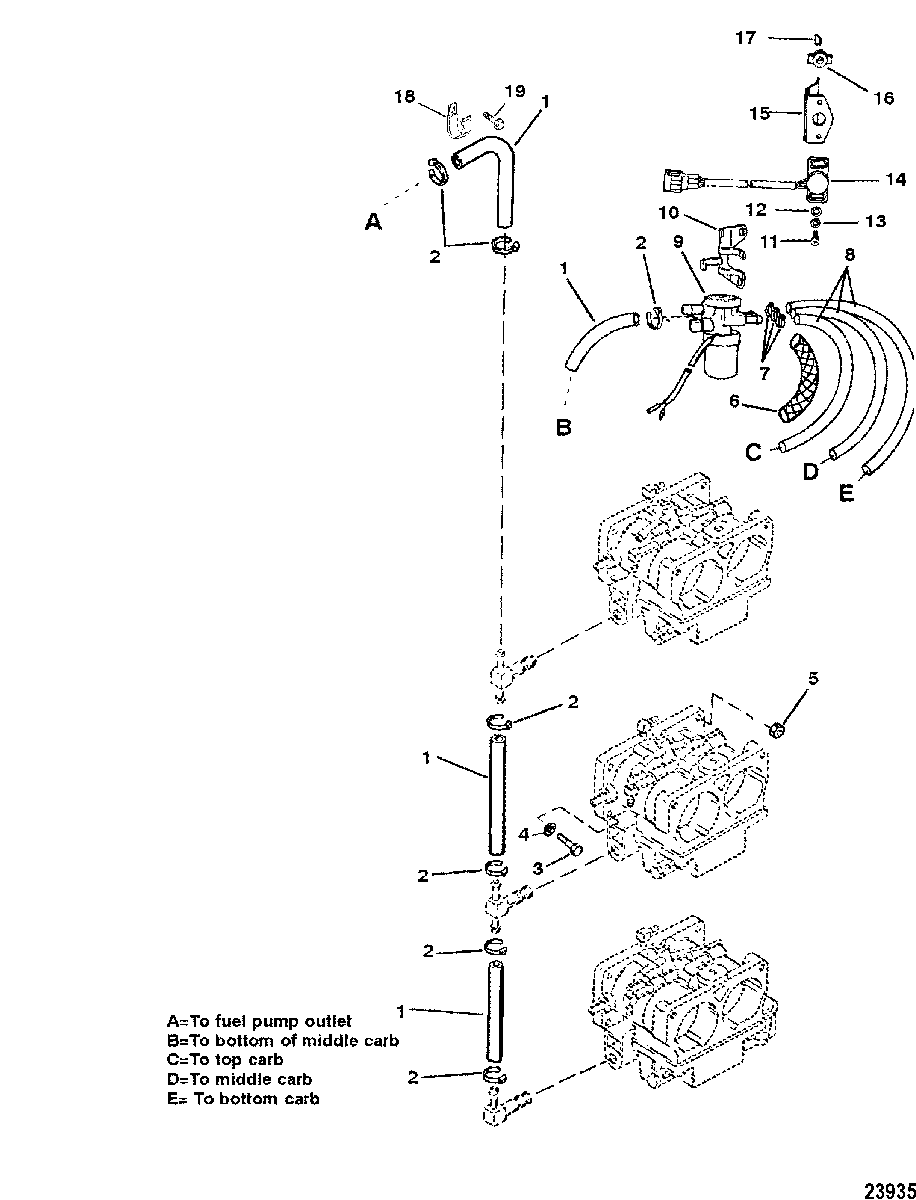

FUEL LINES(SEAPRO/MARATHON) для Mariner - 225 (3.0L CARB) 0D280813 THRU 0G760299
-
№АртикулНазвание
-
132-8M0108355 HOSE, (57.00 Inches Bulk) (5 IN.)(5 IN.)(4-1/2 IN.)(16 IN.)HOSE, (57.00 Inches Bulk) (5 IN.)(5 IN.)(4-1/2 IN.)(16 IN.)
-
254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
310-4008820 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
413-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
511-401386 NUT, (M6)NUT, (M6)
-
623-82459612 OVERSLEEVEOVERSLEEVE
-
756762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
832-9912878 HOSE, (.187) (26.00 Inches Bulk) (8-3/4 IN.)(8-3/4 IN.)(6 IN.)HOSE, (.187) (26.00 Inches Bulk) (8-3/4 IN.)(8-3/4 IN.)(6 IN.)
-
9822528T SOLENOID VALVESOLENOID VALVE
-
108224931 BRACKETBRACKET
-
1110-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
1212-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
1313-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
14821664 SENSOR, Throttle Position (TPI)SENSOR, Throttle Position (TPI)
-
158212021 BRACKET, SensorBRACKET, Sensor
-
16821153 COUPLINGCOUPLING
-
1728-89694 KEYKEY
-
1854-859172 CLAMPCLAMP
-
1910-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
