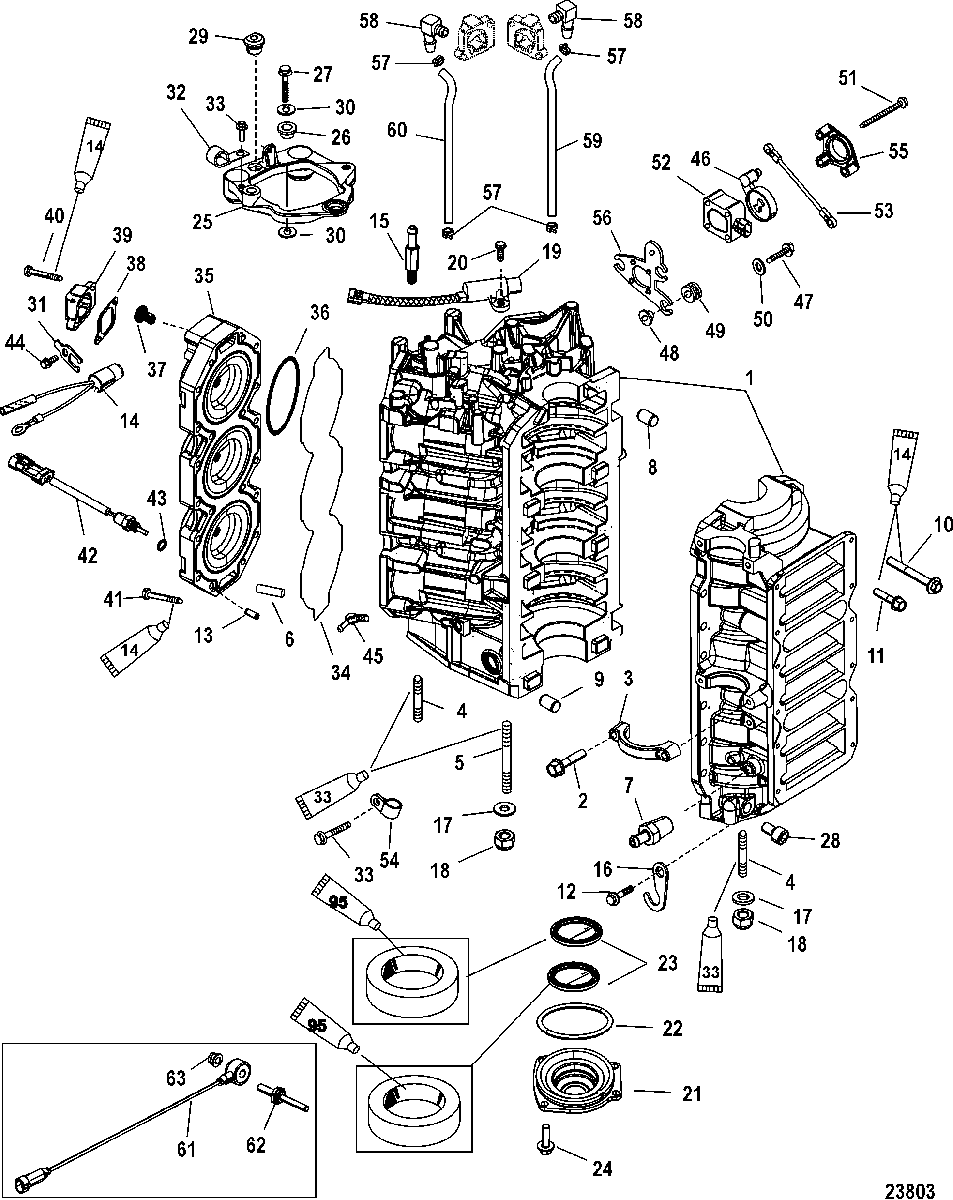

Cyliner Block and End Cap для Mariner - 225 (3.0L EFI) 1B504989 & Up
-
№АртикулНазвание
-
1885-899162A05 CYLINDER BLOCK ASSEMBLY
(200)CYLINDER BLOCK ASSEMBLY
(200) -
1885-899162A06 CYLINDER BLOCK ASSEMBLY
(225)CYLINDER BLOCK ASSEMBLY
(225) -
1885-899162A07 CYLINDER BLOCK ASSEMBLY
(250)CYLINDER BLOCK ASSEMBLY
(250) -
210-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
38M0111325 BRACKETBRACKET
-
416-903509 STUD, (M10 x 1.5 x 64)STUD, (M10 x 1.5 x 64)
-
516-8154431 STUD, (M10 x 1.5 x 155)STUD, (M10 x 1.5 x 155)
-
68248577 DEFLECTORDEFLECTOR
-
721-8781051 CHECK VALVECHECK VALVE
-
817-8M0036405 PINPIN
-
917-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1010-82446180 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
1110-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1210-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
1317-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
1413536A13 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1517-8405101 PINPIN
-
168588641 RETAINERRETAINER
-
1712-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1811-4013610 NUT, (M10) Stainless SteelNUT, (M10) Stainless Steel
-
198M0082988 SENSORSENSOR
-
2010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
211171-9787A4 END CAP ASSEMBLYEND CAP ASSEMBLY
-
2225-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
2326-8308981 SEALSEAL
-
2410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
25857186T02 PLATE ASSEMBLYPLATE ASSEMBLY
-
2623-855729 MOUNTMOUNT
-
2710-82130145 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
2810-82494810 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
2925-19565002 GROMMETGROMMET
-
3012-855725 WASHERWASHER
-
31137151 RETAINERRETAINER
-
3254-858951 J CLIPJ CLIP
-
3310-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
34818574 SEALSEAL
-
35812851A27 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
36884391 SEALSEAL
-
378M0057307 THERMOSTAT, 54 Degree C/130 Degree FTHERMOSTAT, 54 Degree C/130 Degree F
-
3827-8503181 GASKETGASKET
-
398M0039357 COVER, ThermostatCOVER, Thermostat
-
4010-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4110-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
42885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
4325-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
4410-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
4522-782792 FITTING, Elbow 45 Degree (1.25)FITTING, Elbow 45 Degree (1.25)
-
468583561 LEVER, TPILEVER, TPI
-
4710-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4823-856954 BUSHINGBUSHING
-
4925-834985 GROMMETGROMMET
-
5012-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
5110-40011113 SCREW, (M5 x 45) Stainless SteelSCREW, (M5 x 45) Stainless Steel
-
528M6005165 INDICATOR, Throttle PositionINDICATOR, Throttle Position
-
538M0084743 LINKLINK
-
5454-858902 CLAMPCLAMP
-
558582261 COVERCOVER
-
568544862 BRACKETBRACKET
-
5754-855228 CLAMP, (25.6 mm)CLAMP, (25.6 mm)
-
5822-8533394 FITTINGFITTING
-
5932-8404461 HOSE (Starboard)HOSE (Starboard)
-
6032-8404462 HOSE (Port)HOSE (Port)
-
618M6003194 SENSOR ASSEMBLY, Knock
(200)SENSOR ASSEMBLY, Knock
(200) -
6216-882781 STUD
(200)STUD
(200) -
6311-826292 NUT, (M10) Brass/Nickel Plated
(200)NUT, (M10) Brass/Nickel Plated
(200) -
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-891823A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-883892A07 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-883894A07 POWERHEAD ASSEMBLY
(250)POWERHEAD ASSEMBLY
(250)
