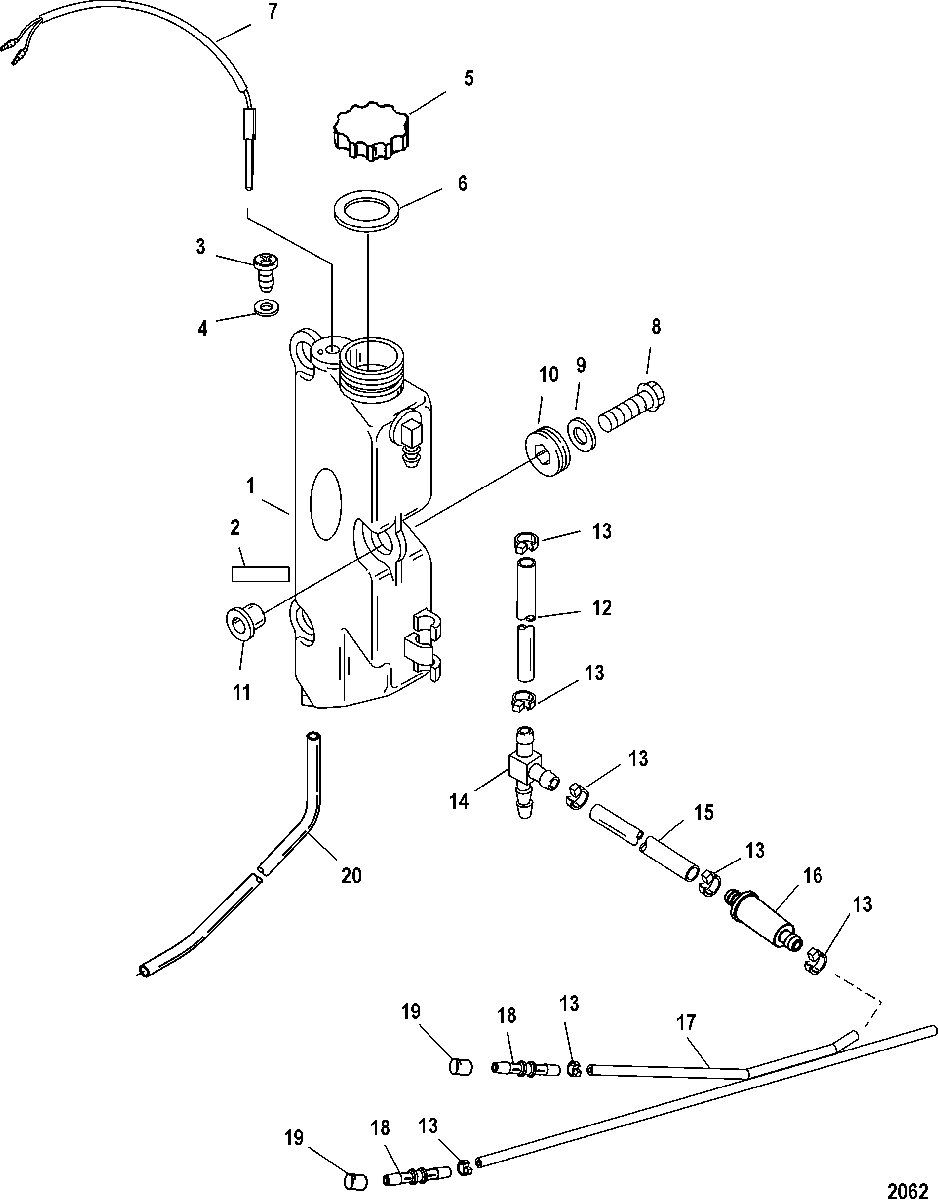

Oil Injection Components для Mariner - 225 (3.0L EFI) 1B504989 & Up
-
№АртикулНазвание
-
11200-8M0119508 TANK ASSEMBLY, OilTANK ASSEMBLY, Oil
-
2NSS NOT SOLD SEPARATE, Decal-ReservoirNOT SOLD SEPARATE, Decal-Reservoir
-
310-58376 SCREW, (.164-18 x .375)SCREW, (.164-18 x .375)
-
412-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
536-814449A3 CAP ASSEMBLYCAP ASSEMBLY
-
627-42999T GASKETGASKET
-
787-856156T02 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
810-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
912-4002318 WASHERWASHER
-
1025-855362001 GROMMETGROMMET
-
1123-855364 BUSHINGBUSHING
-
1232-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 7 Inches)HOSE, (57.00 Inches Bulk) (Cut to 7 Inches)
-
1354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1422-424254 FITTINGFITTING
-
1532-875283 HOSE, (2.00 Inches)HOSE, (2.00 Inches)
-
1635-875284T01 FILTER, Oil - In LineFILTER, Oil - In Line
-
1732-875289 HOSEHOSE
-
1822-858955 CONNECTORCONNECTOR
-
19NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
2032-892830053 HOSE, (24.00 Inches Braided) (Cut to 22 Inches)HOSE, (24.00 Inches Braided) (Cut to 22 Inches)
