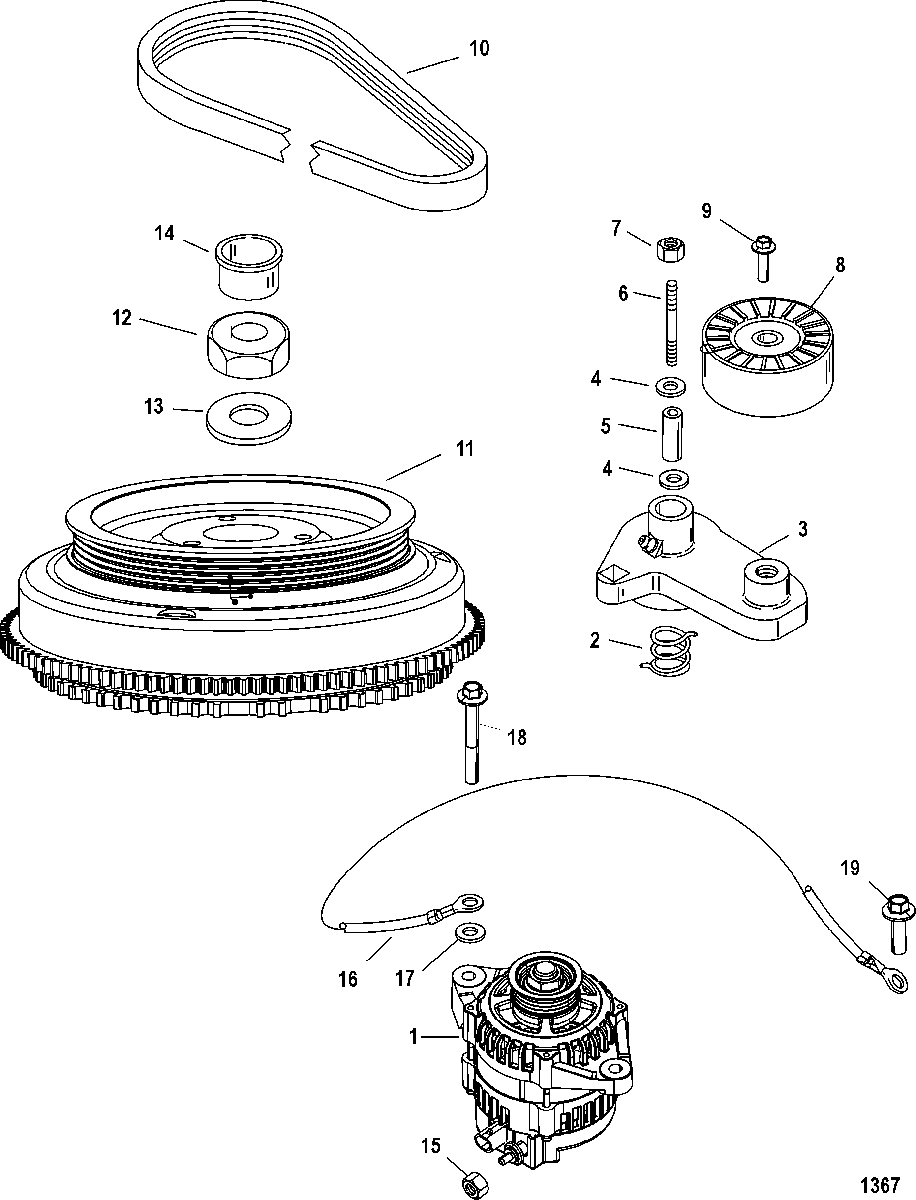

Flywheel/Alternator для Mariner - 225 (3.0L EFI) 1B504989 & Up
-
№АртикулНазвание
-
18M0064020 ALTERNATORALTERNATOR
-
224-8523742 SPRINGSPRING
-
3856815T2 ARM TENSIONER ASSEMBLYARM TENSIONER ASSEMBLY
-
412-4002320 WASHERWASHER
-
523-8568941 BUSHINGBUSHING
-
616-8M0034457 STUD, (M10 x 85)STUD, (M10 x 85)
-
711-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
88M6005030 PULLEY ASSEMBLYPULLEY ASSEMBLY
-
910-4010835 SCREW, (M10 x 35) Hex Flange - Stainless SteelSCREW, (M10 x 35) Hex Flange - Stainless Steel
-
1057-828507Q11 BELTBELT
-
11283-859619T1 FLYWHEELFLYWHEEL
-
1211-42979 NUT, (M16)NUT, (M16)
-
1312-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
1419-45907 PLUG, YellowPLUG, Yellow
-
1511-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1684-856583A5 CABLE ASSEMBLYCABLE ASSEMBLY
-
1712-4002319 WASHERWASHER
-
1810-82130150 SCREW, (M10 x 50)SCREW, (M10 x 50)
-
1910-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
