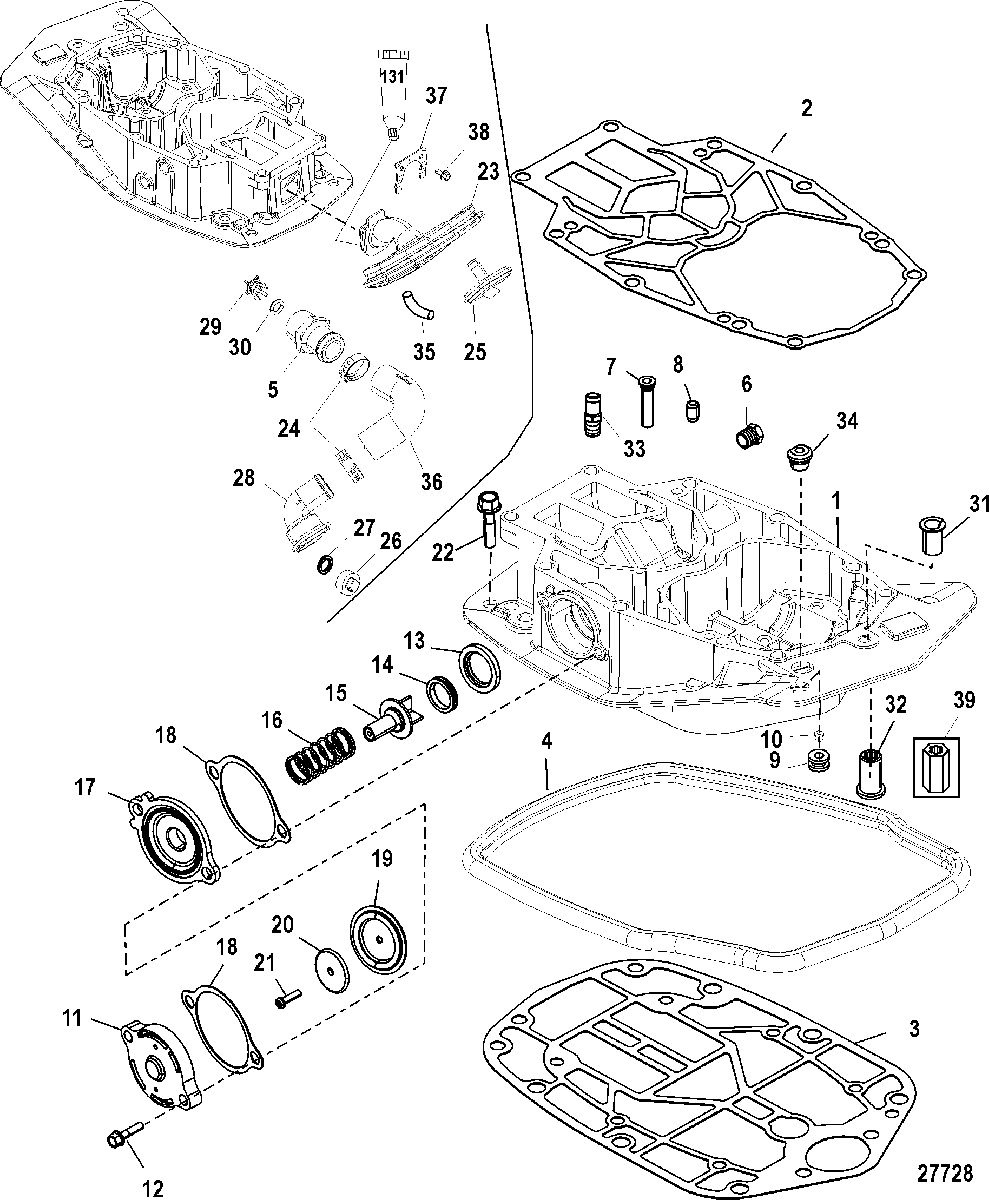

Exhaust Plate для Mariner - 225 (3.0L EFI) 1B504989 & Up
-
№АртикулНазвание
-
1832935A17 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
227-832933006 GASKETGASKET
-
327-832934006 GASKET (Lower)GASKET (Lower)
-
48M0043157 SEALSEAL
-
522-8320761 FITTING, Check ValveFITTING, Check Valve
-
622-32803 PLUG, Pipe (.375-18) BrassPLUG, Pipe (.375-18) Brass
-
721-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
817-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
925-822002 GROMMETGROMMET
-
1019-48323 PLUGPLUG
-
1165663A2 COVER ASSEMBLYCOVER ASSEMBLY
-
1210-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
13814190 CARRIERCARRIER
-
1425-814191 GROMMETGROMMET
-
15814189 POPPETPOPPET
-
1624-64878 SPRING, (Black)SPRING, (Black)
-
1765664A1 PLATE ASSEMBLYPLATE ASSEMBLY
-
1827-88907003 GASKETGASKET
-
19648771 DIAPHRAGMDIAPHRAGM
-
2012-76451 WASHERWASHER
-
2110-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
2210-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
23850306A04 BOOT KIT, Idle Exhaust
Includes references 44 and 45BOOT KIT, Idle Exhaust
Includes references 44 and 45 -
2454-850896 CLAMP, (28.6)CLAMP, (28.6)
-
2522-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
2619-821908 PLUGPLUG
-
2712-821915 WASHERWASHER
-
2822-8596001 FITTINGFITTING
-
298219631 CHECK VALVECHECK VALVE
-
3025-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
3123-48237 BUSHINGBUSHING
-
3243585 COUPLING
Design ICOUPLING
Design I -
3322-858855 FITTING, StraightFITTING, Straight
-
3425-12602002 GROMMETGROMMET
-
3532-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 3 Inches)HOSE, (57.00 Inches Bulk) (Cut to 3 Inches)
-
3632-859626A1 FLUSH HOSE KIT (Inlet)FLUSH HOSE KIT (Inlet)
-
37888910 PLATEPLATE
-
3810-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
398M0027417 COUPLER, Shift Shaft
Design IICOUPLER, Shift Shaft
Design II -
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-891823A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-883892A07 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-883894A07 POWERHEAD ASSEMBLY
(250)POWERHEAD ASSEMBLY
(250)
