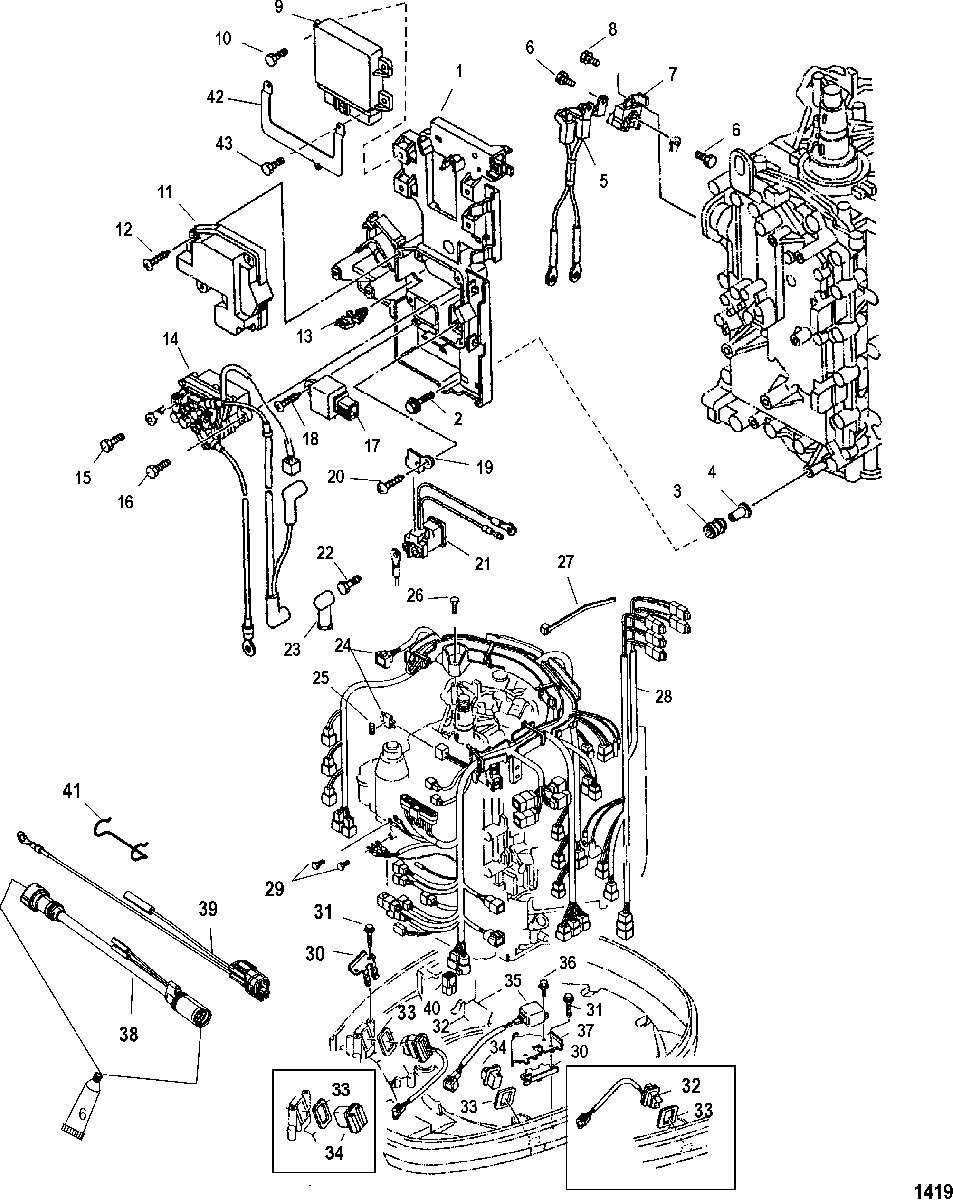

Electrical Components для Mariner - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
1888319T BRACKETBRACKET
-
210-804270 BOLT, (M6 x 28)BOLT, (M6 x 28)
-
325-881304 GROMMETGROMMET
-
423-804344003 BUSHINGBUSHING
-
584-887955 CABLE ASSEMBLY, BatteryCABLE ASSEMBLY, Battery
-
610-8255012 BOLTBOLT
-
7888314 TERMINALTERMINAL
-
810-881816 BOLT, (M8 x 20)BOLT, (M8 x 20)
-
9888286T11 ECU, Engine Control Unit
SN# 0T807875 & BelowECU, Engine Control Unit
SN# 0T807875 & Below -
9888286T11 ECU, Engine Control Unit
SN# 0T807876 & UpECU, Engine Control Unit
SN# 0T807876 & Up -
1010-811188T BOLT, (M6 x 16)BOLT, (M6 x 16)
-
11888321 COVERCOVER
-
1210-888322 SCREWSCREW
-
1354-888311 CLAMPCLAMP
-
14888320T RELAYRELAY
-
1510-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1610-893745025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
17881350T RELAYRELAY
-
1810-881351 SCREWSCREW
-
1954-881353 CLAMPCLAMP
-
2010-8813511 SCREWSCREW
-
21881352T RELAYRELAY
-
2210-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2385-804284001 BOOTBOOT
-
2484-888323A1 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
2588-832969T05 FUSE, Mini - Tan - 5 AmpereFUSE, Mini - Tan - 5 Ampere
-
2610-850879 BOLT, (M6 x 35)BOLT, (M6 x 35)
-
2754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2884-888330A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
-88-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
-88-83296930 FUSE, Mini - Green - 30 AmpereFUSE, Mini - Green - 30 Ampere
-
-891825 COVER, Fuse (Brown)COVER, Fuse (Brown)
-
2910-804604 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
30888328 BRACKETBRACKET
-
3110-887807 BOLTBOLT
-
3287-8M0119488 TRIM/TILT SWITCH ASSEMBLYTRIM/TILT SWITCH ASSEMBLY
-
3327-888327 GASKETGASKET
-
34888326 COVERCOVER
-
35888329A1 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
3610-888332 BOLTBOLT
-
37888331 BRACKETBRACKET
-
3884-858740A1 HARNESS ASSEMBLY, Remote Adaptor
SN# 1B226999 & BelowHARNESS ASSEMBLY, Remote Adaptor
SN# 1B226999 & Below -
3884-858740T07 HARNESS ASSEMBLY, Remote Adaptor
SN# 1B227000 & UpHARNESS ASSEMBLY, Remote Adaptor
SN# 1B227000 & Up -
3984-888166A1 HARNESS ASSEMBLY, Trim Sender AdaptorHARNESS ASSEMBLY, Trim Sender Adaptor
-
40859249T1 CONNECTORCONNECTOR
-
4192753 RETAINERRETAINER
-
42892769 PLATEPLATE
-
4310-8257021 BOLT, (M6 x 20)BOLT, (M6 x 20)
