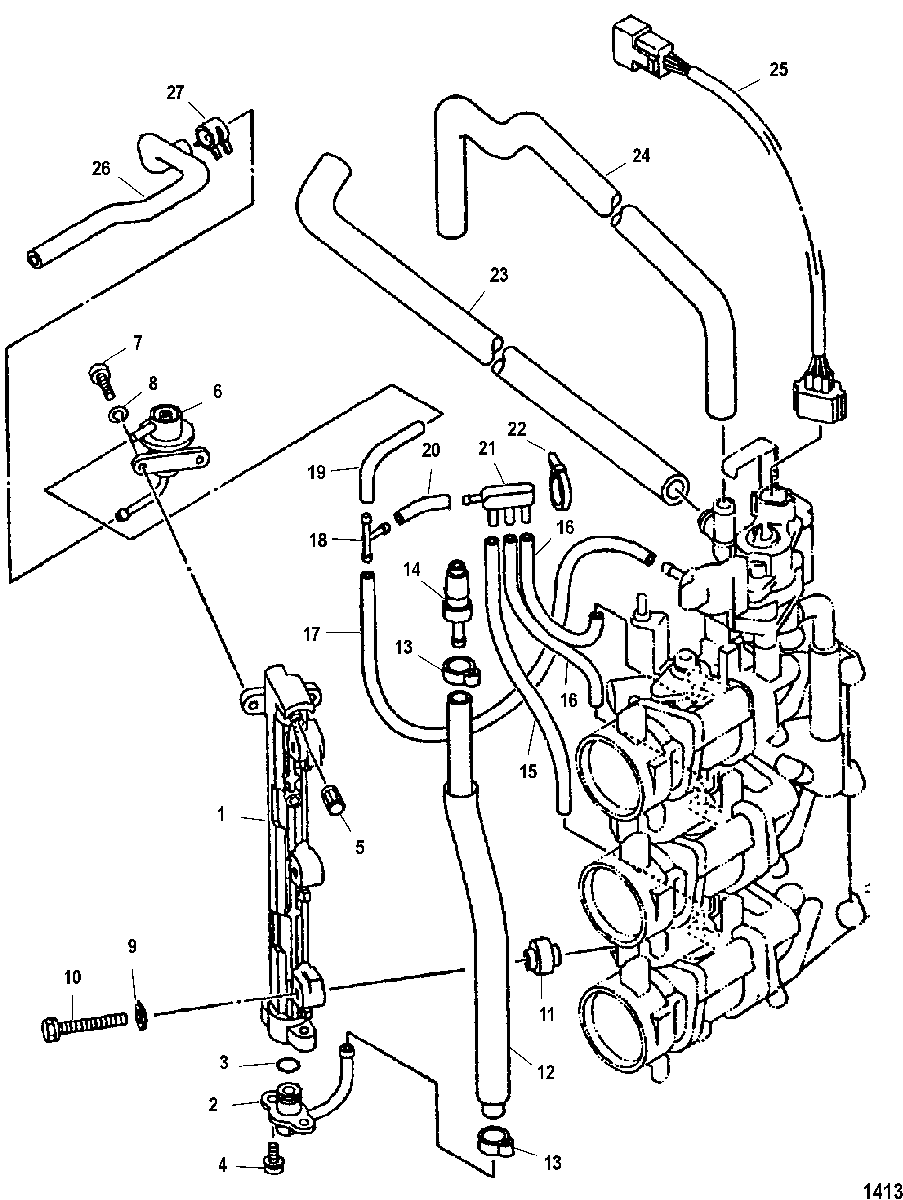

Throttle Body Hose Routing для Mariner - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
1888225T1 FUEL RAIL ASSEMBLYFUEL RAIL ASSEMBLY
-
2888226 PLATE, FuelPLATE, Fuel
-
325-881522 O-RINGO-RING
-
410-881509 SCREW, (M5 x 15)SCREW, (M5 x 15)
-
5881520 CAPCAP
-
6888227 REGULATOR, Fuel PressureREGULATOR, Fuel Pressure
-
710-881524 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
813-881525 LOCKWASHERLOCKWASHER
-
912-881508 WASHERWASHER
-
1010-881532 BOLT, (M8 x 45)BOLT, (M8 x 45)
-
1123-881526 COLLARCOLLAR
-
1232-888230 HOSEHOSE
-
1354-881331 CLIPCLIP
-
1422-888215 CONNECTORCONNECTOR
-
1532-888234 HOSEHOSE
-
1632-888234 HOSEHOSE
-
1732-888234 HOSEHOSE
-
1822-8815581 TEETEE
-
1932-888234 HOSEHOSE
-
2032-881554 HOSEHOSE
-
2122-888235 CONNECTORCONNECTOR
-
2254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2332-888229 HOSEHOSE
-
2432-888228 HOSEHOSE
-
2584-888237 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2632-888236 HOSEHOSE
-
2754-881530 CLIPCLIP
