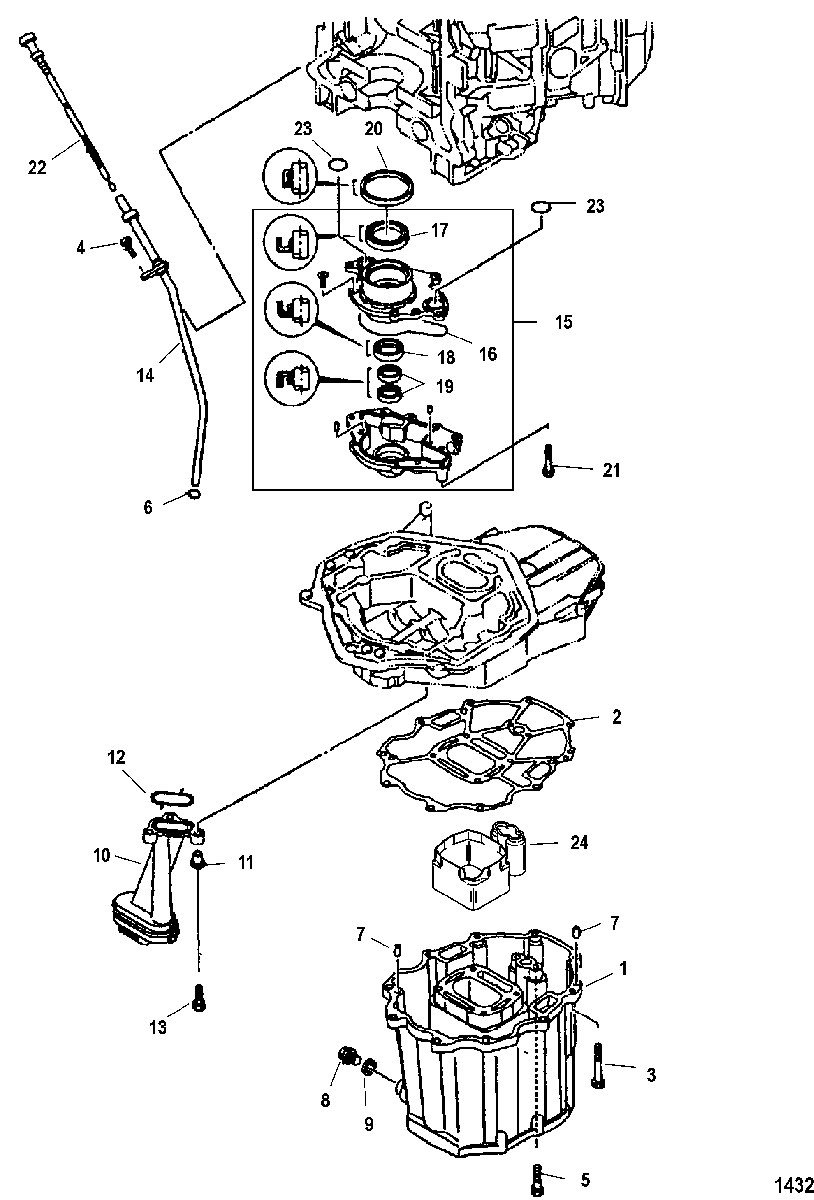

Oil Pan для Mariner - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
1888675T PAN, OilPAN, Oil
-
227-888658008 GASKET
SN# 0T807875 & BelowGASKET
SN# 0T807875 & Below -
227-888658008 GASKET
SN# 0T807876 & UpGASKET
SN# 0T807876 & Up -
310-8041594 BOLTBOLT
-
410-804604 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
510-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
625-804093 O-RINGO-RING
-
717-23784 PIN, DowelPIN, Dowel
-
819-825953 PLUG, (M14 x 12)PLUG, (M14 x 12)
-
927-8886586 GASKETGASKET
-
10888676T STRAINER, OilSTRAINER, Oil
-
1123-85281412 COLLARCOLLAR
-
1226-888677 SEALSEAL
-
1310-8041595 BOLTBOLT
-
14888679 DIPSTICK TUBEDIPSTICK TUBE
-
15888677T02 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
1627-8886587 GASKETGASKET
-
1726-8886771 SEAL, OilSEAL, Oil
-
1826-8886772 SEAL, OilSEAL, Oil
-
1926-8886773 SEAL, OilSEAL, Oil
-
2026-8886774 SEALSEAL
-
2110-824832010 BOLTBOLT
-
22888678 DIPSTICK
SN# 1B055687 & BelowDIPSTICK
SN# 1B055687 & Below -
22888678001 DIPSTICK
SN# 1B055688 & UpDIPSTICK
SN# 1B055688 & Up -
2325-887812 O-RINGO-RING
-
2426-891746 SEAL, Rubber
SN# 0T807876 & UpSEAL, Rubber
SN# 0T807876 & Up -
-27-887810A03 GASKET SET, Powerhead
SN# 0T807875 & BelowGASKET SET, Powerhead
SN# 0T807875 & Below -
-27-887810A04 GASKET SET, Powerhead
SN# 0T807876 THRU 1B055687GASKET SET, Powerhead
SN# 0T807876 THRU 1B055687 -
-27-887810A05 GASKET SET, Powerhead
SN# 1B055688 & UpGASKET SET, Powerhead
SN# 1B055688 & Up -
-27-888658A03 GASKET SET, Lower Unit
SN# 0T807875 & BelowGASKET SET, Lower Unit
SN# 0T807875 & Below -
-27-888658A04 GASKET SET, Lower Unit
SN# 0T807876 & UpGASKET SET, Lower Unit
SN# 0T807876 & Up -
-885225T07 POWERHEAD ASSEMBLY
SN# 1B055687 & BelowPOWERHEAD ASSEMBLY
SN# 1B055687 & Below -
-885225T07 POWERHEAD ASSEMBLY
SN# 1B055688 THRU 1B226999POWERHEAD ASSEMBLY
SN# 1B055688 THRU 1B226999 -
-885225T07 POWERHEAD ASSEMBLY
SN# 1B227000 & UpPOWERHEAD ASSEMBLY
SN# 1B227000 & Up
