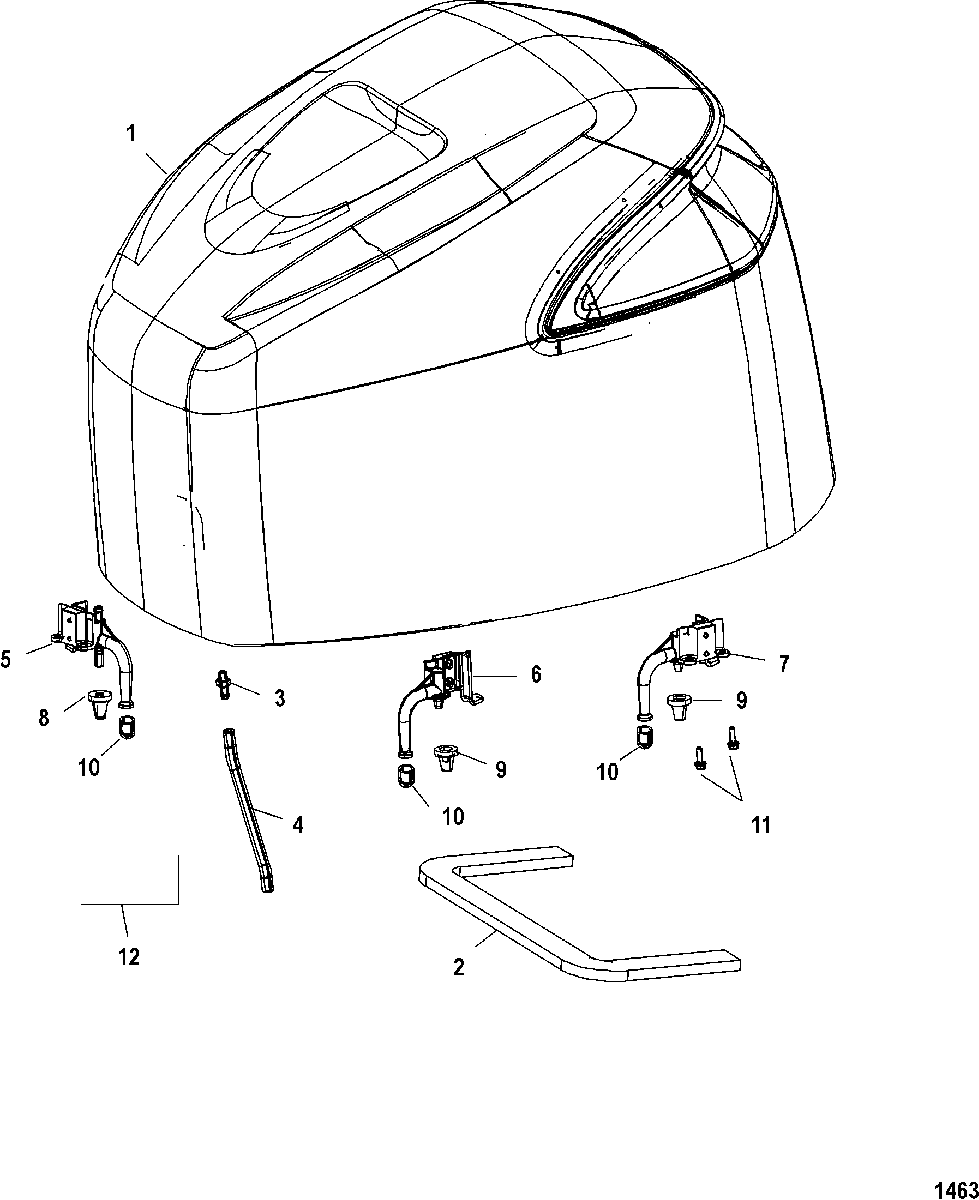

Top Cowl для Mariner - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
1100-887913T02 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
2887962 FOAMFOAM
-
322-291112 FITTINGFITTING
-
432-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 8 Inches)TUBING, (.312) (70.00 Inches Bulk) (Cut to 8 Inches)
-
5887964A1 LATCH KIT (Front)LATCH KIT (Front)
-
6887963A1 LATCH KIT (Starboard)LATCH KIT (Starboard)
-
7887967A1 LATCH KIT (Port)LATCH KIT (Port)
-
8887965 DAMPER (Front)DAMPER (Front)
-
9887975 DAMPER (Starboard/Port)DAMPER (Starboard/Port)
-
10881600 CAP, RubberCAP, Rubber
-
1110-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
12NSS NOT SOLD SEPARATE, Decal-Clean Cling-OnNOT SOLD SEPARATE, Decal-Clean Cling-On
-
-98-8M0099558 DECAL SET
(Mercury)DECAL SET
(Mercury) -
-37-8848751 DECAL, Wrap Around
(Mariner)(Export Only)DECAL, Wrap Around
(Mariner)(Export Only) -
-37-8M0133054 DECAL, M Icon
(Mariner)(Export Only)DECAL, M Icon
(Mariner)(Export Only)
