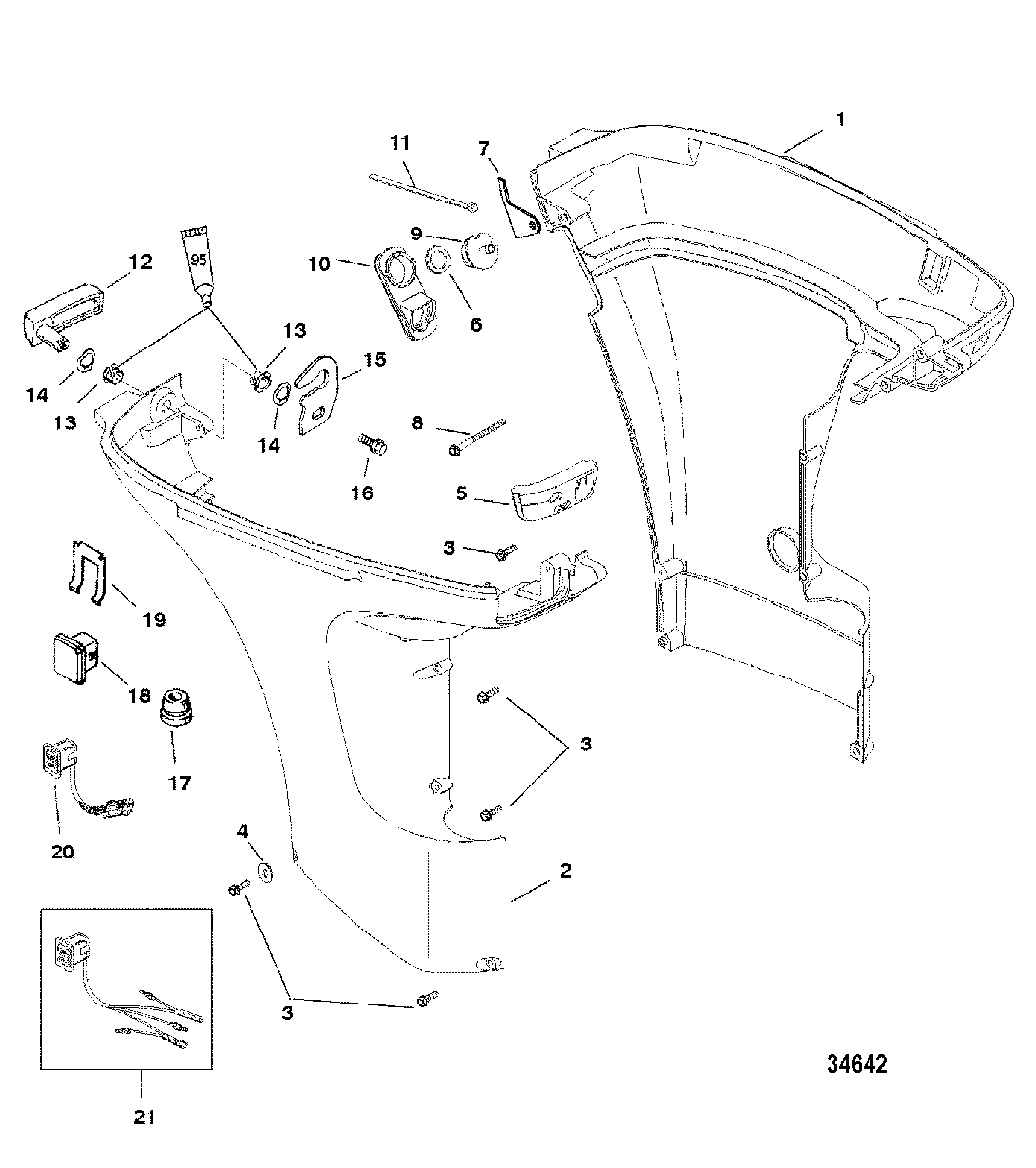

Bottom Cowl для Mariner - 25 (4-STROKE) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
14020-852554T1 BOTTOM COWL
Short-Port-BlackBOTTOM COWL
Short-Port-Black -
14020-852554T2 BOTTOM COWL
Short-Port-GrayBOTTOM COWL
Short-Port-Gray -
14020-826277T1 BOTTOM COWL
Long-Port-BlackBOTTOM COWL
Long-Port-Black -
14020-826277T1 BOTTOM COWL
Long-Port-GrayBOTTOM COWL
Long-Port-Gray -
24020-852555T5 BOTTOM COWL
Short-Starboard-BlackBOTTOM COWL
Short-Starboard-Black -
24020-852555T2 BOTTOM COWL
Short-Starboard-GrayBOTTOM COWL
Short-Starboard-Gray -
24020-826278T7 BOTTOM COWL
Long-Starboard-BlackBOTTOM COWL
Long-Starboard-Black -
24020-826278T7 BOTTOM COWL
Long-Starboard-GrayBOTTOM COWL
Long-Starboard-Gray -
310-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
5825238002 SEALSEAL
-
612-855576 WASHERWASHER
-
727-855627 GASKETGASKET
-
810-82684460 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
922-827948 FITTINGFITTING
-
10826273001 BOOTBOOT
-
1154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
12825782F1 LEVER, Cowl Latch
BlackLEVER, Cowl Latch
Black -
12825782F1 LEVER, Cowl Latch
GrayLEVER, Cowl Latch
Gray -
1323-812707 BUSHINGBUSHING
-
1413-12134 WASHER, WaveWASHER, Wave
-
15893766 LATCH HOOKLATCH HOOK
-
1610-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1725-19564001 GROMMET
Non-Power TrimGROMMET
Non-Power Trim -
1725-19565002 GROMMET
Split-Power TrimGROMMET
Split-Power Trim -
18812830T01 PLUG
Non-Power TrimPLUG
Non-Power Trim -
198M0032848 RETAINER
Non-Power TrimRETAINER
Non-Power Trim -
2087-8M0042300 SWITCH, Trim
Power Trim- Design IISWITCH, Trim
Power Trim- Design II -
2187-8M0042301 SWITCH ASSEMBLY
Power Trim - Design ISWITCH ASSEMBLY
Power Trim - Design I
