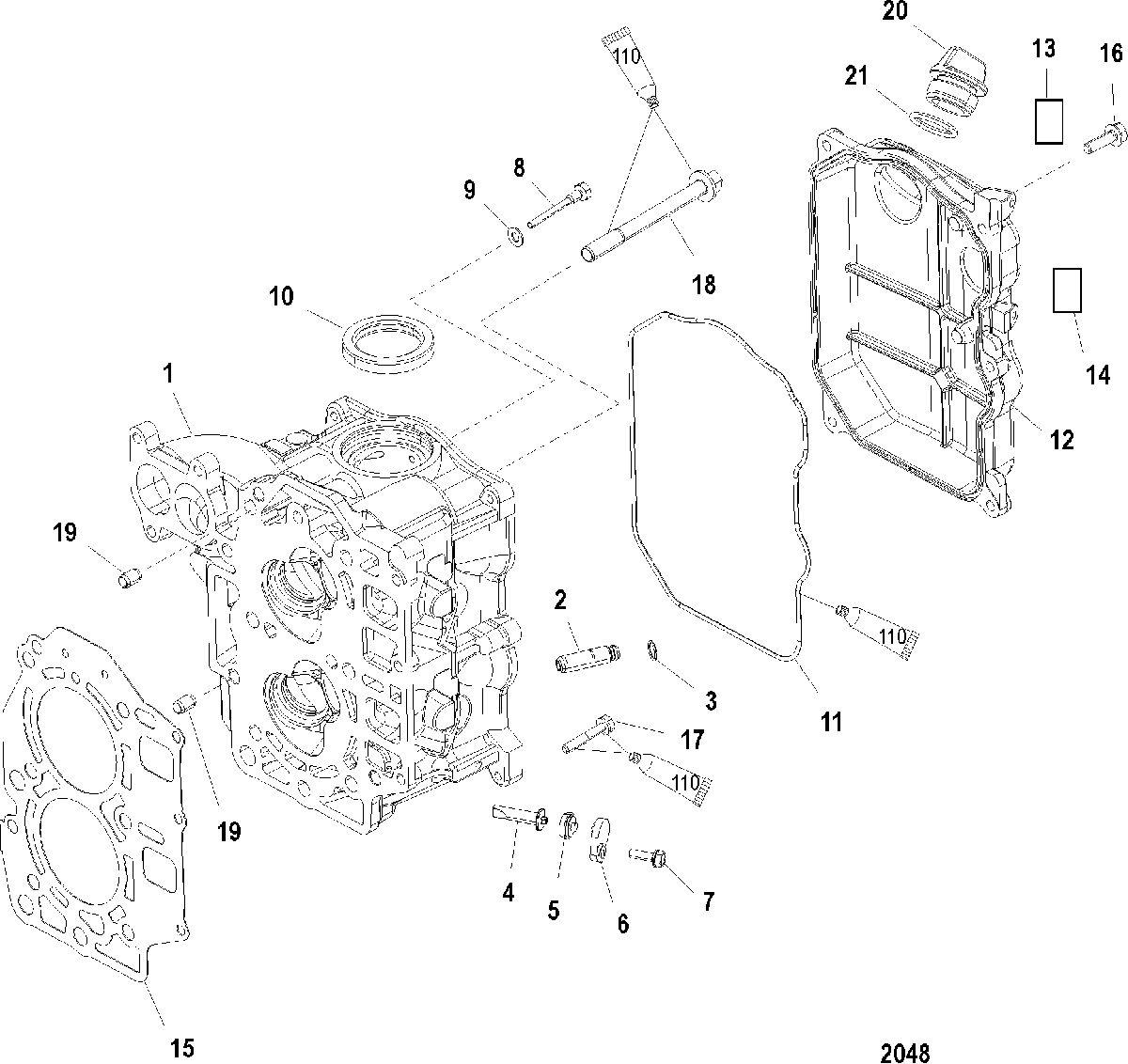

Cylinder Head для Mariner - 25 (4-STROKE) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
-830271T3 CYLINDER HEAD
ElectricCYLINDER HEAD
Electric -
-830271T4 CYLINDER HEAD
ManualCYLINDER HEAD
Manual -
1830271T2 CYLINDER HEADCYLINDER HEAD
-
28M0054272 GUIDEGUIDE
-
353-825038 CIRCLIPCIRCLIP
-
4826887M ANODEANODE
-
525-825040 GROMMETGROMMET
-
6826888M COVERCOVER
-
710-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
810-827607 BOLTBOLT
-
927-827610 GASKETGASKET
-
1026-825048 SEAL, OilSEAL, Oil
-
1125-833103 O-RINGO-RING
-
12830272A1 COVERCOVER
-
13NSS NOT SOLD SEPARATE, Decal-Servicing ReferralNOT SOLD SEPARATE, Decal-Servicing Referral
-
14NSS NOT SOLD SEPARATE, Decal-Engine Oil/Valve ClearanceNOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance
-
1527-8M0049885 GASKETGASKET
-
1610-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1710-893745025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1810-82503395 SCREW, (M9 x 95)SCREW, (M9 x 95)
-
1917-825010 PIN, DowelPIN, Dowel
-
20859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
21NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
-61-854236T00 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-830270A02 GASKET SETGASKET SET
