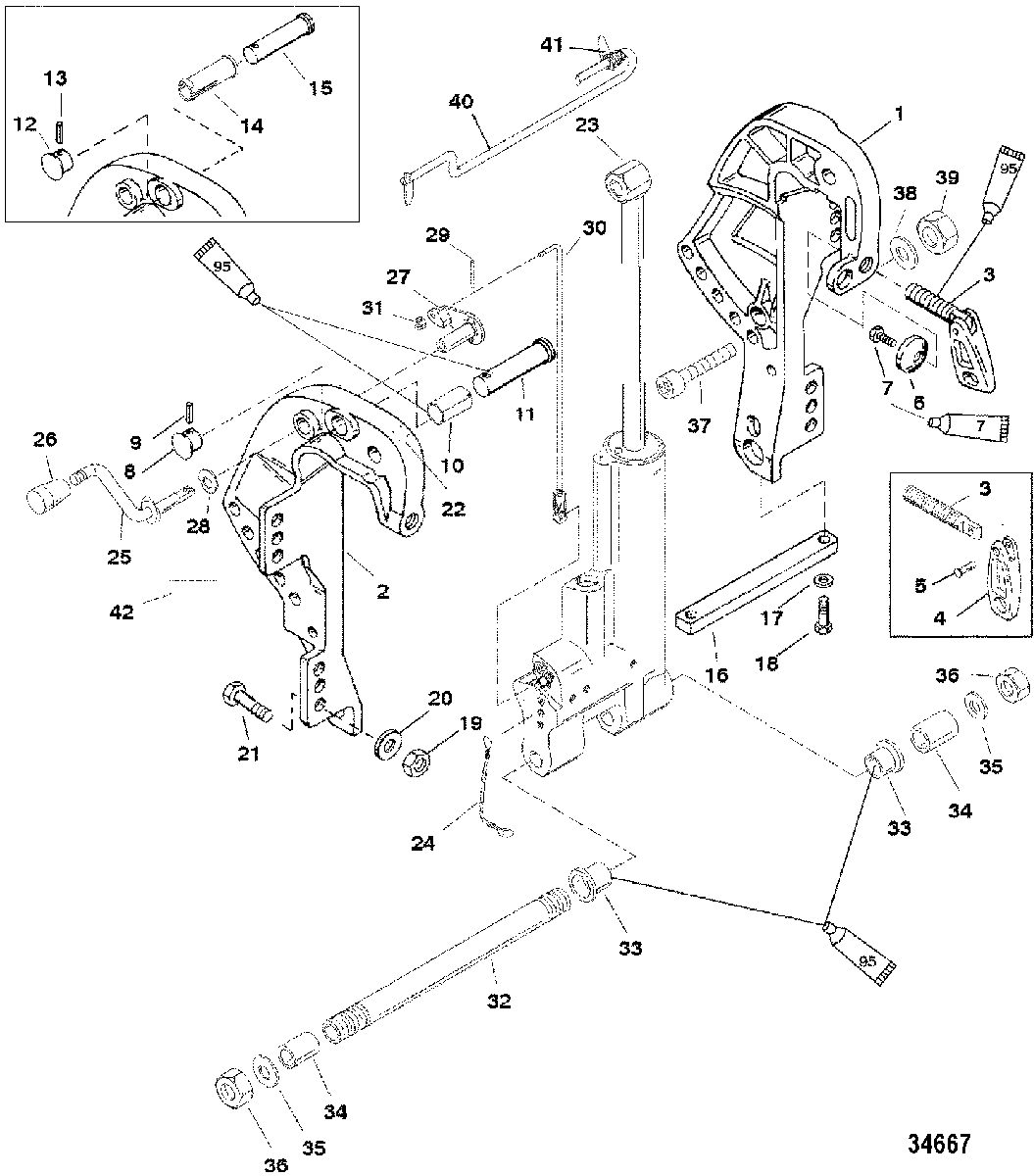

Clamp Bracket для Mariner - 25 (4-STROKE) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
13411-821773T1 CLAMP BRACKET
Port-BlackCLAMP BRACKET
Port-Black -
13411-821773A2 CLAMP BRACKET
Port-GrayCLAMP BRACKET
Port-Gray -
23412-821774T8 CLAMP BRACKET
Starboard-Black-Use with .56 O.D. Reference #15CLAMP BRACKET
Starboard-Black-Use with .56 O.D. Reference #15 -
23412-821774T8 CLAMP BRACKET
Starboard-Gray-Use with .56 O.D. Reference #15CLAMP BRACKET
Starboard-Gray-Use with .56 O.D. Reference #15 -
23412-821774T8 CLAMP BRACKET
Starboard-Black-Use with .75 O.D. Reference #11CLAMP BRACKET
Starboard-Black-Use with .75 O.D. Reference #11 -
23412-821774T8 CLAMP BRACKET
Starboard-Gray-Use with .75 O.D. Reference #11CLAMP BRACKET
Starboard-Gray-Use with .75 O.D. Reference #11 -
310-818883A1 THUMB SCREW ASSEMBLY
ManualTHUMB SCREW ASSEMBLY
Manual -
4NSS NOT SOLD SEPARATE, Handle
ManualNOT SOLD SEPARATE, Handle
Manual -
5NSS NOT SOLD SEPARATE, Rivet
ManualNOT SOLD SEPARATE, Rivet
Manual -
612-818884 WASHER
ManualWASHER
Manual -
710-768042 SHOULDER SCREW, Hex
ManualSHOULDER SCREW, Hex
Manual -
88224011 CAP
O.D. Of Reference # 11 is .75 and Reference #10 is not FlangedCAP
O.D. Of Reference # 11 is .75 and Reference #10 is not Flanged -
917-25810 PIN
O.D. Of Reference # 11 is .75 and Reference #10 is not FlangedPIN
O.D. Of Reference # 11 is .75 and Reference #10 is not Flanged -
1023-86637 BEARING
O.D. Of Reference # 11 is .75 and Reference #10 is not FlangedBEARING
O.D. Of Reference # 11 is .75 and Reference #10 is not Flanged -
1117-8224002 PIN
O.D. Of Reference # 11 is .75 and Reference #10 is not FlangedPIN
O.D. Of Reference # 11 is .75 and Reference #10 is not Flanged -
12822401 CAP
O.D. Of Reference # 15 is .56 and Reference #14 is FlangedCAP
O.D. Of Reference # 15 is .56 and Reference #14 is Flanged -
1317-25319 PIN, (.125 x 0.75 Inches)
O.D. Of Reference # 15 is .56 and Reference #14 is FlangedPIN, (.125 x 0.75 Inches)
O.D. Of Reference # 15 is .56 and Reference #14 is Flanged -
1423-823589 BUSHING
O.D. Of Reference # 15 is .56 and Reference #14 is FlangedBUSHING
O.D. Of Reference # 15 is .56 and Reference #14 is Flanged -
1517-8224001 PIN
O.D. Of Reference # 15 is .56 and Reference #14 is FlangedPIN
O.D. Of Reference # 15 is .56 and Reference #14 is Flanged -
1697-8252711 ANODEANODE
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1810-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1911-82671117 NUT, (.500-20)NUT, (.500-20)
-
2012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
2110-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
2237-830253 DECAL, Tilt LockDECAL, Tilt Lock
-
23828533T1 TRIM, HYDRAULIC ASSIST
Gas Assist TrimTRIM, HYDRAULIC ASSIST
Gas Assist Trim -
2488238A11 CABLE ASSEMBLY
Gas Assist TrimCABLE ASSEMBLY
Gas Assist Trim -
25828924 LEVER, Tilt
Gas Assist TrimLEVER, Tilt
Gas Assist Trim -
268M0007469 TILT KNOB
Gas Assist TrimTILT KNOB
Gas Assist Trim -
27828930 ARM, Lever
Gas Assist TrimARM, Lever
Gas Assist Trim -
2813-31030 WAVE WASHER
Gas Assist TrimWAVE WASHER
Gas Assist Trim -
2917-25319 PIN, (.125 x 0.75 Inches)
Gas Assist TrimPIN, (.125 x 0.75 Inches)
Gas Assist Trim -
308289961 LINK
Gas Assist TrimLINK
Gas Assist Trim -
3111-826709106 NUT, (#10-32)
Gas Assist TrimNUT, (#10-32)
Gas Assist Trim -
3217-822481001 PIN, Anchor (14 mm)
Gas Assist and Power TrimPIN, Anchor (14 mm)
Gas Assist and Power Trim -
3323-822482 BUSHING
Gas Assist and Power TrimBUSHING
Gas Assist and Power Trim -
3423-822484 BUSHING
Gas Assist and Power TrimBUSHING
Gas Assist and Power Trim -
3512-825190 WASHER
Gas Assist and Power TrimWASHER
Gas Assist and Power Trim -
3611-826712 NUT
Gas Assist and Power TrimNUT
Gas Assist and Power Trim -
3710-4009040 SCREW, (M10 x 40) Stainless Steel
Gas Assist and Power TrimSCREW, (M10 x 40) Stainless Steel
Gas Assist and Power Trim -
3812-4002319 WASHER
Gas Assist and Power TrimWASHER
Gas Assist and Power Trim -
3911-40140 NUT, (M10)
Gas Assist and Power TrimNUT, (M10)
Gas Assist and Power Trim -
4017-853923A1 PIN
Handle-Non Power TrimPIN
Handle-Non Power Trim -
4124-821461 SPRING
Handle-Non Power TrimSPRING
Handle-Non Power Trim -
42NSS NOT SOLD SEPARATE, Decal-WarningNOT SOLD SEPARATE, Decal-Warning
