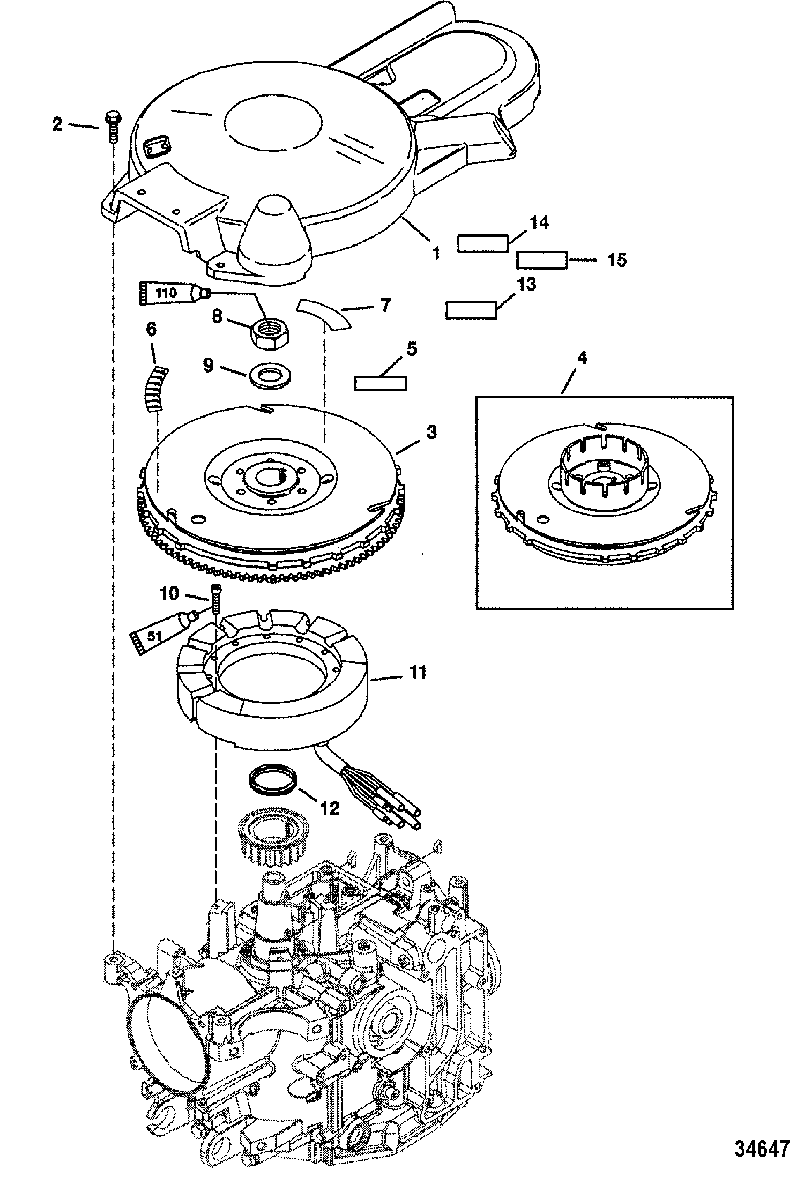

Flywheel для Mariner - 25 (4-STROKE) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
1859284T2 FLYWHEEL COVER
ElectricFLYWHEEL COVER
Electric -
210-8248326 SCREW, (M6 x 25 MM)
ElectricSCREW, (M6 x 25 MM)
Electric -
3284-832010T32 FLYWHEEL
ElectricFLYWHEEL
Electric -
4200-8M0118174 FLYWHEEL
ManualFLYWHEEL
Manual -
5NSS NOT SOLD SEPARATE, Decal-Warning-Spinning FlywheelNOT SOLD SEPARATE, Decal-Warning-Spinning Flywheel
-
6NSS NOT SOLD SEPARATE, Decal-Timing MarksNOT SOLD SEPARATE, Decal-Timing Marks
-
7NSS NOT SOLD SEPARATE, Decal-Warning-NeutralNOT SOLD SEPARATE, Decal-Warning-Neutral
-
811-893789 NUTNUT
-
912-893762 WASHERWASHER
-
1010-4007325 SCREW, (M5 x 25)
ManualSCREW, (M5 x 25)
Manual -
11398-852386T8 STATOR
Manual SN# 0G960499 & BelowSTATOR
Manual SN# 0G960499 & Below -
11398-852386T6 STATOR
Manual SN# 0G960500 & UpSTATOR
Manual SN# 0G960500 & Up -
1010-4013930 SCREW, (M5 x 30)
ElectricSCREW, (M5 x 30)
Electric -
11398-852387T9 STATOR
Electric SN# 0G960499 & BelowSTATOR
Electric SN# 0G960499 & Below -
11398-852387T7 STATOR
Electric SN# 0G960500 & UpSTATOR
Electric SN# 0G960500 & Up -
12834838 LOAD RINGLOAD RING
-
13NSS NOT SOLD SEPARATE, Decal-Bodensee CertificationNOT SOLD SEPARATE, Decal-Bodensee Certification
-
1437-856985A21 DECAL, EPA Label Information
(1999)DECAL, EPA Label Information
(1999) -
1437-804653A00 DECAL, EPA Label Information
(2000)DECAL, EPA Label Information
(2000) -
1437-804653A01 DECAL, EPA Label Information
(2001)DECAL, EPA Label Information
(2001) -
15NSS NOT SOLD SEPARATE, Decal-OverlaminateNOT SOLD SEPARATE, Decal-Overlaminate
