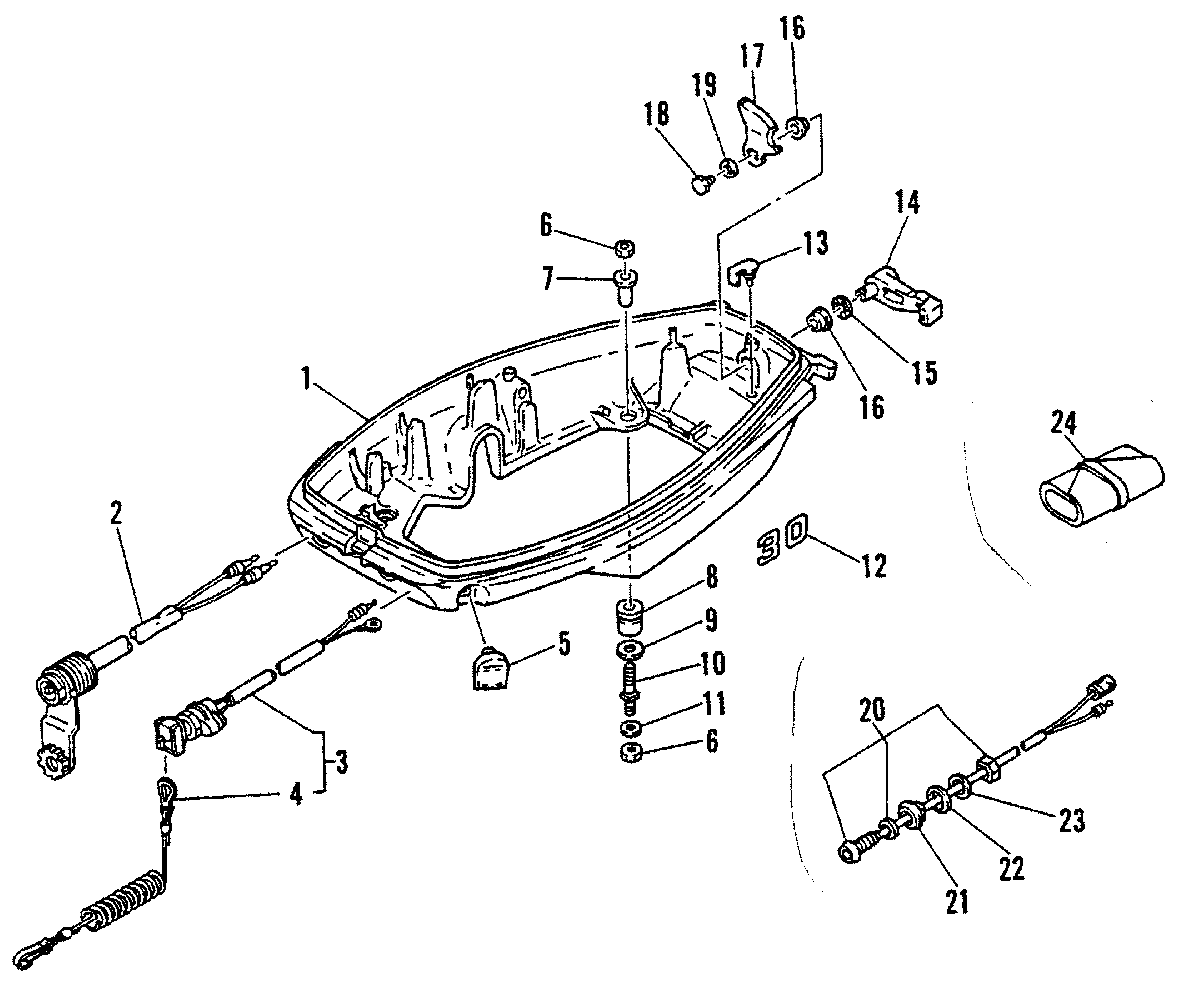

BOTTOM COWL для Mariner - 30A 689-230101 AND UP
-
№АртикулНазвание
-
12168-811913M BOTTOM COWL
NOTE #1 M-689-121775 & BELOW ML-689-432960 & BELOW E-689-250855 & BELOW EL-689-551575 & BELOWBOTTOM COWL
NOTE #1 M-689-121775 & BELOW ML-689-432960 & BELOW E-689-250855 & BELOW EL-689-551575 & BELOW -
12168-811913M BOTTOM COWL
NOTE #2 M-689-232776 ML-689-532961 & UP
E-689-250856 & UP
EL-689-551576BOTTOM COWL
NOTE #2 M-689-232776 ML-689-532961 & UP
E-689-250856 & UP
EL-689-551576 -
284-99051M LEAD EXTENSIONLEAD EXTENSION
-
387-14222M LANYARD IGNITION SWITCHLANYARD IGNITION SWITCH
-
497756M STOPPERSTOPPER
-
525-826981M GROMMETGROMMET
-
611-82383M NUTNUT
-
723-84911M COLLARCOLLAR
-
925-84910M GROMMETGROMMET
-
912-95507M WASHERWASHER
-
1016-95505M STUDSTUD
-
1112-82217M WASHERWASHER
-
1237-42434M DECAL (HP)-DECAL (HP)-
-
1380510M SPACERSPACER
-
1484913M LEVERLEVER
-
1513-81869M WAVE WASHERWAVE WASHER
-
1623-81949M BUSHINGBUSHING
-
1754-84914M CLAMPCLAMP
-
1810-84088M BOLTBOLT
-
1912-81794M WASHERWASHER
-
2041308M EMERGENCY SIGNAL - ELECTRICEMERGENCY SIGNAL - ELECTRIC
-
2181163M HOLDER - ELECTRICHOLDER - ELECTRIC
-
2227-811164M GASKET - ELECTRICGASKET - ELECTRIC
-
2312-83524M WASHER - ELECTRICWASHER - ELECTRIC
-
2491-803581 TOOL KITTOOL KIT
