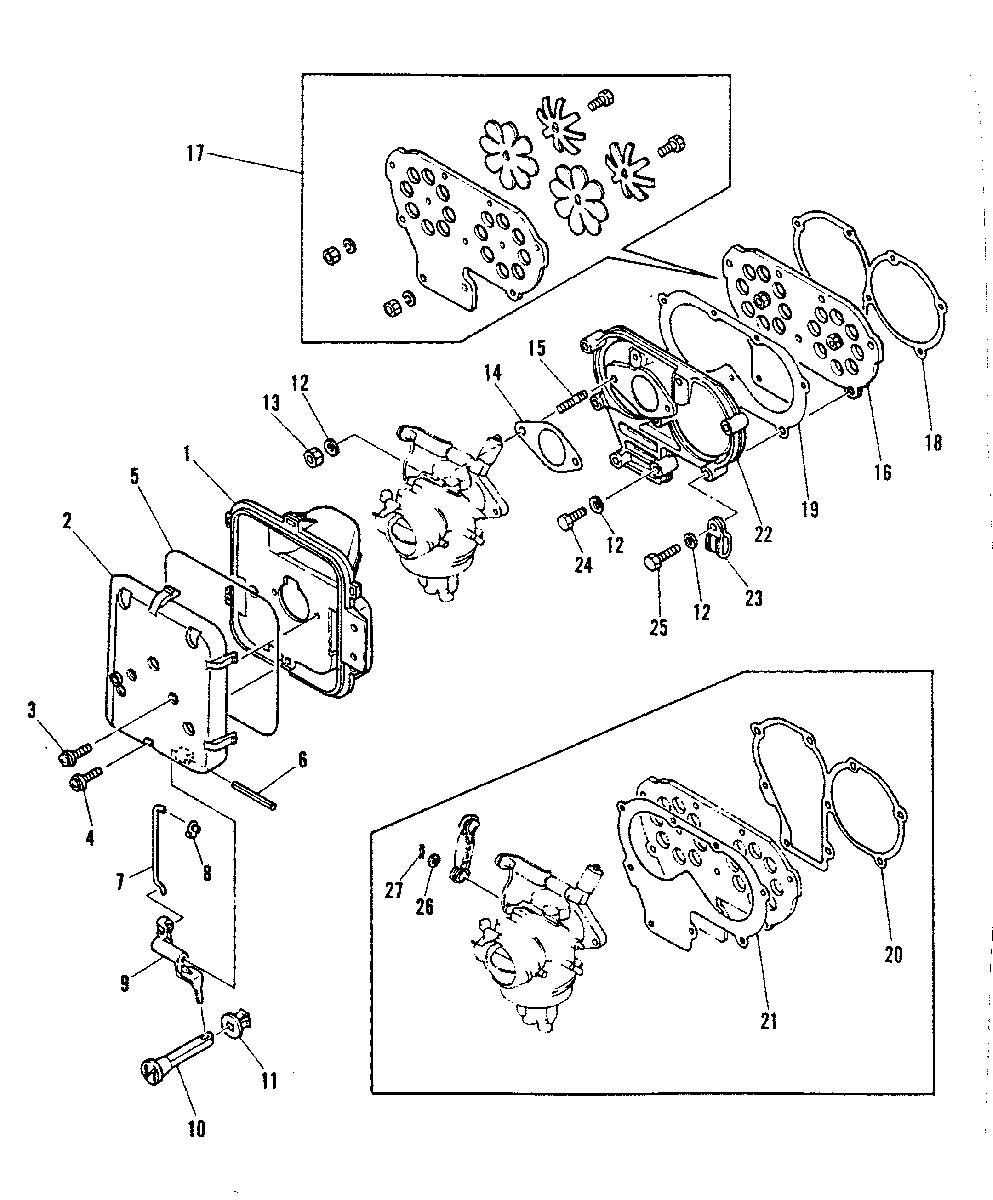

INTAKE MANIFOLD для Mariner - 30A 689-230101 AND UP
-
№АртикулНазвание
-
1811031M AIR INTAKE COVER (INNER)AIR INTAKE COVER (INNER)
-
295682M AIR INTAKE COVER (OUTER)AIR INTAKE COVER (OUTER)
-
310-811032M SCREWSCREW
-
410-811033M SCREWSCREW
-
525-84757M O-RINGO-RING
-
617-84762M ROLL PINROLL PIN
-
784763M RODROD
-
816333 RETAINERRETAINER
-
984761M CHOKE LEVERCHOKE LEVER
-
1083960M CHOKE KNOBCHOKE KNOB
-
1125-84760M GROMMETGROMMET
-
1212-82214M WASHERWASHER
-
1311-82389M NUTNUT
-
1427-80572 GASKETGASKET
-
1516-811028M STUDSTUD
-
16811027M REED VALVE ASSEMBLYREED VALVE ASSEMBLY
-
1734-84759M REED SET (REED STOPS NOT INCLUDED)REED SET (REED STOPS NOT INCLUDED)
-
1827-80569M GASKET- MANUALGASKET- MANUAL
-
1927-80571M GASKET - MANUALGASKET - MANUAL
-
2027-811029M GASKET- ELECTRICGASKET- ELECTRIC
-
2127-811030M GASKET - ELECTRICGASKET - ELECTRIC
-
2280570002 INTAKE MANIFOLDINTAKE MANIFOLD
-
2354-96348M CLAMPCLAMP
-
2410-82405M BOLTBOLT
-
2510-83285M BOLTBOLT
-
2612-83768M WASHER - ELECTRICWASHER - ELECTRIC
-
2754-814589M CLAMP - ELECTRICCLAMP - ELECTRIC
-
-811038M CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
