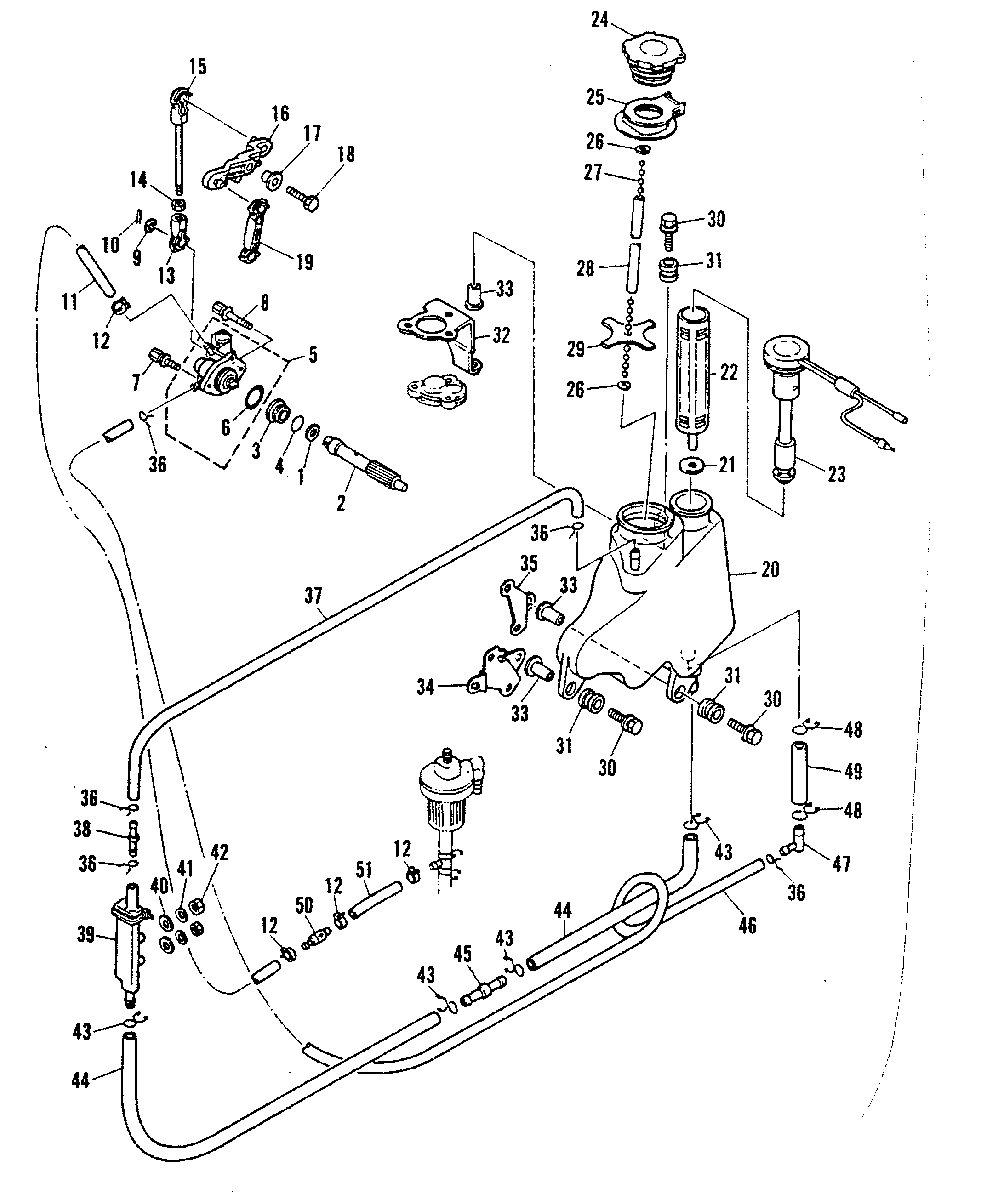

OIL PUMP для Mariner - 30A 689-230101 AND UP
-
№АртикулНазвание
-
112-811039M WASHERWASHER
-
243-811040M DRIVEN GEARDRIVEN GEAR
-
323-811041M COLLARCOLLAR
-
425-811042M O-RINGO-RING
-
5811043M OIL INJECTION PUMPOIL INJECTION PUMP
-
625-811044M O-RINGO-RING
-
710-814583M BOLTBOLT
-
810-814584M BOLTBOLT
-
912-83768M WASHERWASHER
-
1054-814589M CLIPCLIP
-
1132-811045M HOSEHOSE
-
1254-814585M CLIPCLIP
-
1316715M CONNECTORCONNECTOR
-
1411-83763M NUTNUT
-
15811048M LINKLINK
-
16811049M CONTROL LEVERCONTROL LEVER
-
1723-811078M COLLARCOLLAR
-
1810-82405M BOLTBOLT
-
19811122M LINKLINK
-
201252-811134M OIL TANKOIL TANK
-
2127-811137M GASKETGASKET
-
22814595M OIL STRAINEROIL STRAINER
-
23811911M OIL LEVER GAUGE
NOTE #1 M-689-232775 & BELOW ML-689-532960 & BELOW E-689-250855 & BELOW EL-689-551575 & BELOWOIL LEVER GAUGE
NOTE #1 M-689-232775 & BELOW ML-689-532960 & BELOW E-689-250855 & BELOW EL-689-551575 & BELOW -
23811911M OIL LEVER GAUGE
NOTE #2 M-689-232776 & UP
ML-689-532961 & UP
E-689-250856 & UP
EL-689-551576 & UPOIL LEVER GAUGE
NOTE #2 M-689-232776 & UP
ML-689-532961 & UP
E-689-250856 & UP
EL-689-551576 & UP -
2436-814591M CAPCAP
-
25811015M HOOKHOOK
-
2612-814592M WASHERWASHER
-
27814593M CHAINCHAIN
-
2832-811136M HOSEHOSE
-
29814594M PLATEPLATE
-
3010-811180M BOLTBOLT
-
3125-881304 DAMPERDAMPER
-
32811141M BRACKETBRACKET
-
3323-804344003 BUSHINGBUSHING
-
34811140M BRACKETBRACKET
-
35811139M BRACKETBRACKET
-
3654-82047M CLIPCLIP
-
3732-82012M HOSEHOSE
-
3822-811148M CONNECTORCONNECTOR
-
39811144M OIL TANK SUB ASSEMBLYOIL TANK SUB ASSEMBLY
-
4023-811145M SPACERSPACER
-
4112-811146M WASHERWASHER
-
4211-811147M NUTNUT
-
4354-811150M CLIPCLIP
-
4432-814966M HOSEHOSE
-
4522-811149M CONNECTORCONNECTOR
-
4632-811143M TUBINGTUBING
-
4722-814599M CONNECTORCONNECTOR
-
4854-814598M CLIPCLIP
-
4932-811142M HOSEHOSE
-
5021-811046M CHECK VALVECHECK VALVE
-
5132-814587M HOSEHOSE
